24V TTL Modulated Laser Diode Modules 650nm 10mW for Gas Leaking Distance Laser Detector

Laser Wavelength:

650nm
Laser Color:

Red Dot Laser Module
Output Power:

10mW
Beam Size:

≤3x6mm@5m
Housing Material:

10*30mm Insulated Brass or Aluminum

 Inquire Add to Basket

Model: AM650D10G1
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 650nm
Type: Pulse, CW, Dot, TTL

Product Description

Product Description of 24V TTL Modulated Laser Diode Modules 650nm 10mW for Gas Leaking Distance Laser Detector

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 10mW TTL Modulated Red* Laser Module Descriptions*

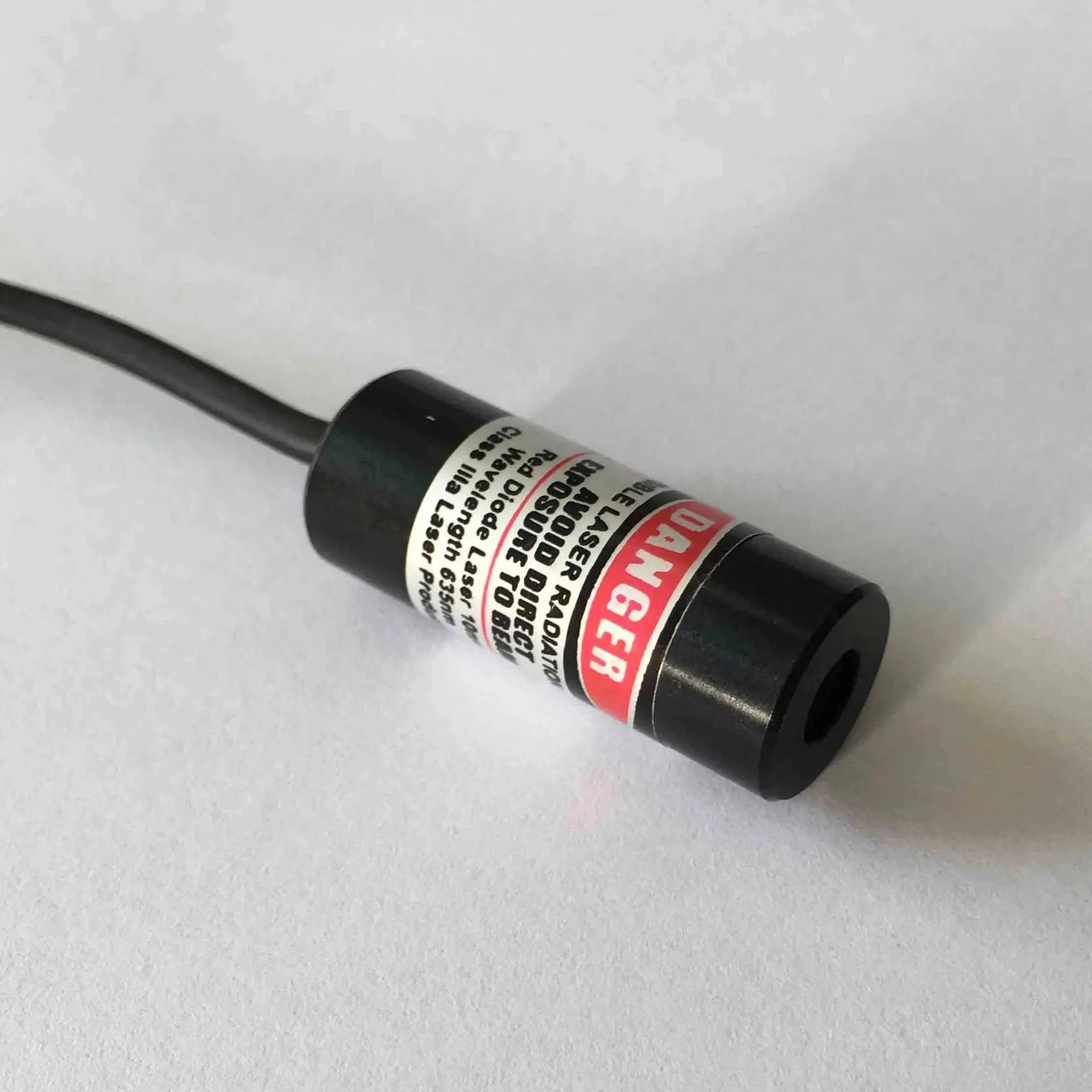

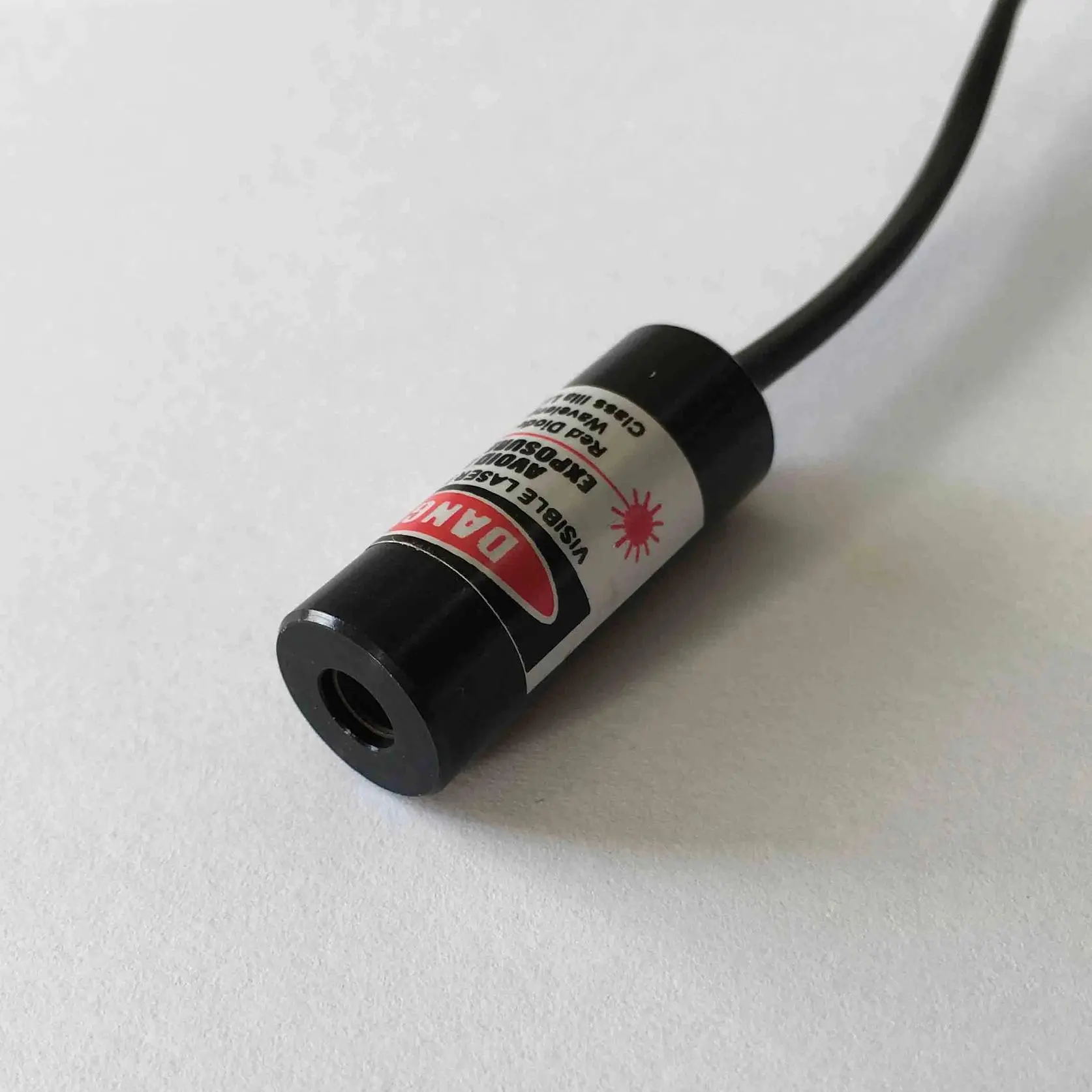

The AM650D10G1 is a 24V TTL modulated red laser module subassembly with collimated beam. The maximum laser output power is 10.0mW at 650nm.

※ 650nm 10mW TTL Modulated Red* Laser Module Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM650D10G1 TTL Modulated Red Laser Module
Wavelength	650nm
Output Power	≤10.0mW
Laser Mode	Pulse (TTL Modulation<10KHz)
Beam Size	≤3x6mm@5m
Divergence	0.4mrad
Optics	Optical Glass Lens
Operating Current	<100mA
Operating Voltage	24V DC
CDRH Class	Class IIIb
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ10x30mm (APC Inside)
Housing Material	Insulated Full Brass or Black Anodized Aluminum
Life Span	10,000Hrs
