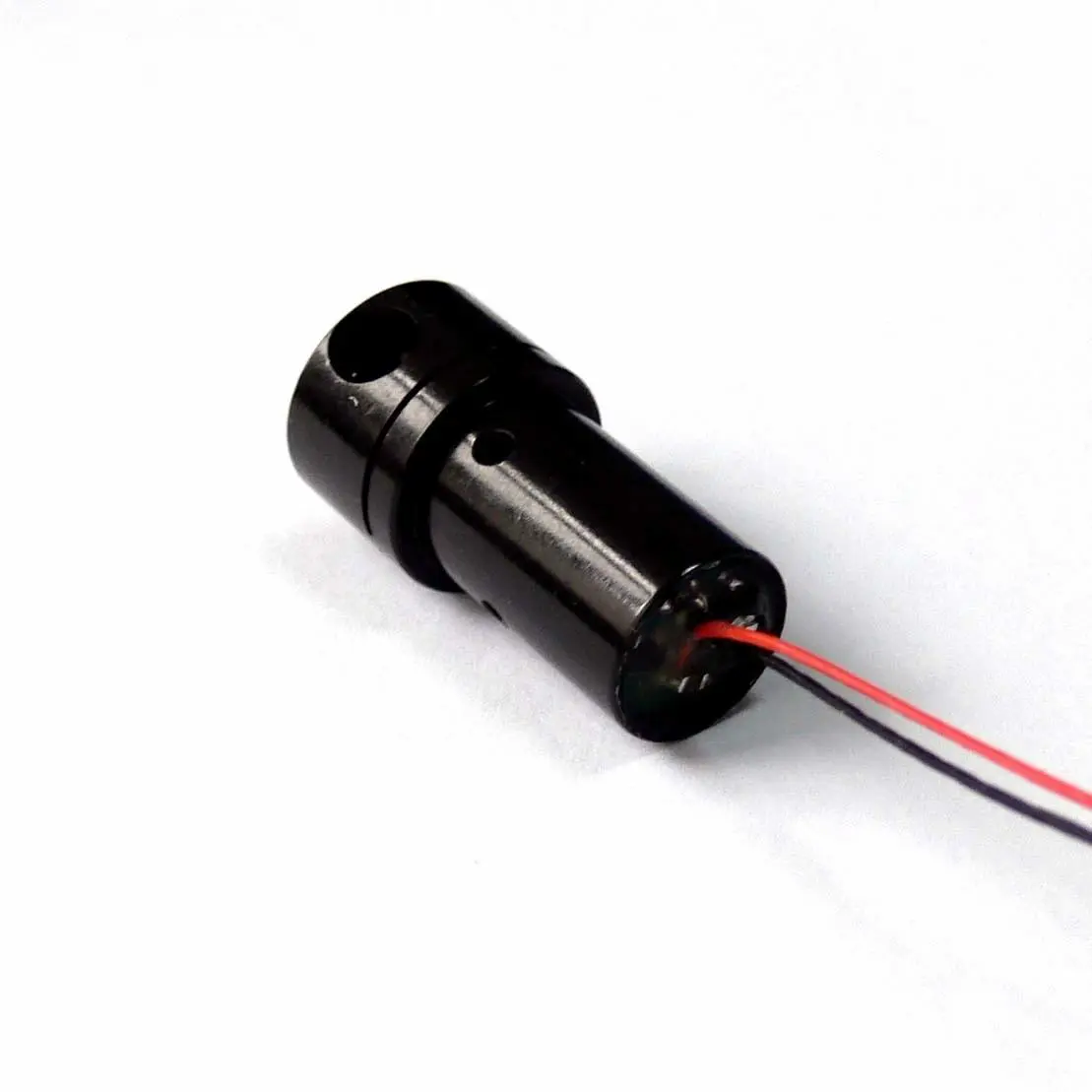

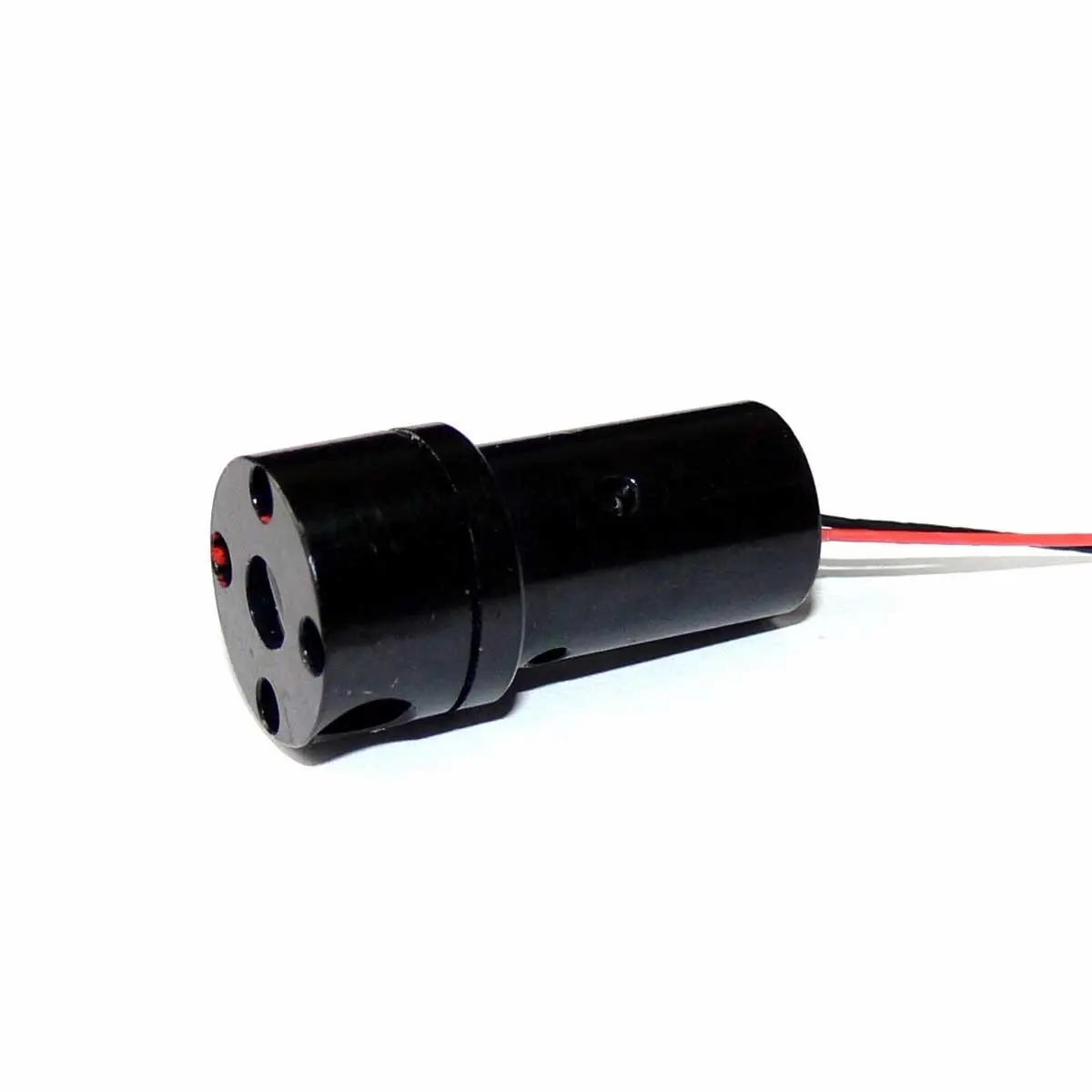

360 Degree Red Line Laser for Laser Measurement Device and Laser Alignment Tools

360 Degree Red Line Laser for Laser Measurement Device and Laser Alignment Tools 360 Degree Red Line Laser for Laser Measurement Device and Laser Alignment Tools

  • Product Name:
    360° Red Line Laser Module
  • Output Power:
    635nm 0.6mW
  • Line Width:
    ≤2.0mm@5m
  • Fan Angle:
    360°
  • Dimension:
    φ12x22mm
  • Model: AM635R20G1

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Red  Visible

  • Wavelength: 635nm  650nm

  • Type: CW  Line  Circle

Product Description

Product Description of 360 Degree Red Line Laser for Laser Measurement Device and Laser Alignment Tools

Laser Wavelength Chart

AimLaser provides customized 360 Degree Red and Green Line Laser Modules with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 24V DC or 110VAC.


※ What is a 360 degree Line Laser Generator?

Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.

It is widely used in laser distance measurer, self leveling laser tools, laser survey instrument by projecting a distinct red or green 360 degree laser line for alignment and positioning and surveying to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.


※ Why use a 360 degree Line Laser Generator?

The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.


※ 635nm 0.6mW 360 Degree Red Line Laser Generator Descriptions

The AM635R20G1 is a 360 degree red line laser generator for self leveling laser tools, laser alignment tools or laser tape measure equipment. The maximum laser output power is 0.6 mW at 515nm.


635nm 0.6mW 360 Degree Red Line Laser GeneratorOptical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM635R20G1 (360 Degree Red Line Laser)
Wavelength635nm
Output Power≤0.6mW
Output Power Ratio≤5:1
Output ApertureΦ5.0mm
Fan Angle360°
Line Width≤2.0mm@5m
Line Accuracy<1mm@5m
DOF1m
OpticsOptical Glass Lens
Operating Current<80mA
Operating Voltage3-5V or 12V or 24V DC
CDRH ClassClass II
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ12x22mm (PCB Inside)
Case MaterialBlack Anodized Aluminum
Life Span8,000Hrs


360 Cross Line Laser360 Degree Cross Line Laser


AimLaser Line Laser Module Features

  • Long lifetime

  • Compact size

  • Easy mounting

  • High brightness

  • Convenient adjustment

  • High reliability and stability

  • Wide temperature operation -10℃ to 50℃


※ 360 Degree Line Laser Module Applications

  • Laser Line Maker

  • Laser Tape Measurer

  • Laser Measuring Tools

  • Laser Alignment Systems

  • Laser Distance Measurer

  • Laser Survey Instrument

  • 3D Laser Scanner

  • Self Leveling Laser Tools etc.


※ Why buy 360 Line Lasers from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
