Model: AM450L50G1M
Brand: AIMLASER
Code: 90132000.99
Color: Blue, Visible
Wavelength: 450nm
Type: Pulse, CW, Line, TTL
AimLaser provides customized Blue Line Laser Diode Modules with different output power, Line Thickness and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.
The blue laser modules possess characteristics of compact size, low power consumption, high stability and low cost.
It is widely used in industrial laser scanning and surveying instrument, medical laser instrument, image processing instrument, machine vision guidance system, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment applications and also scientific research etc.

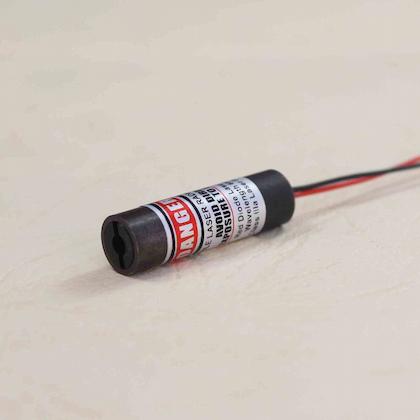

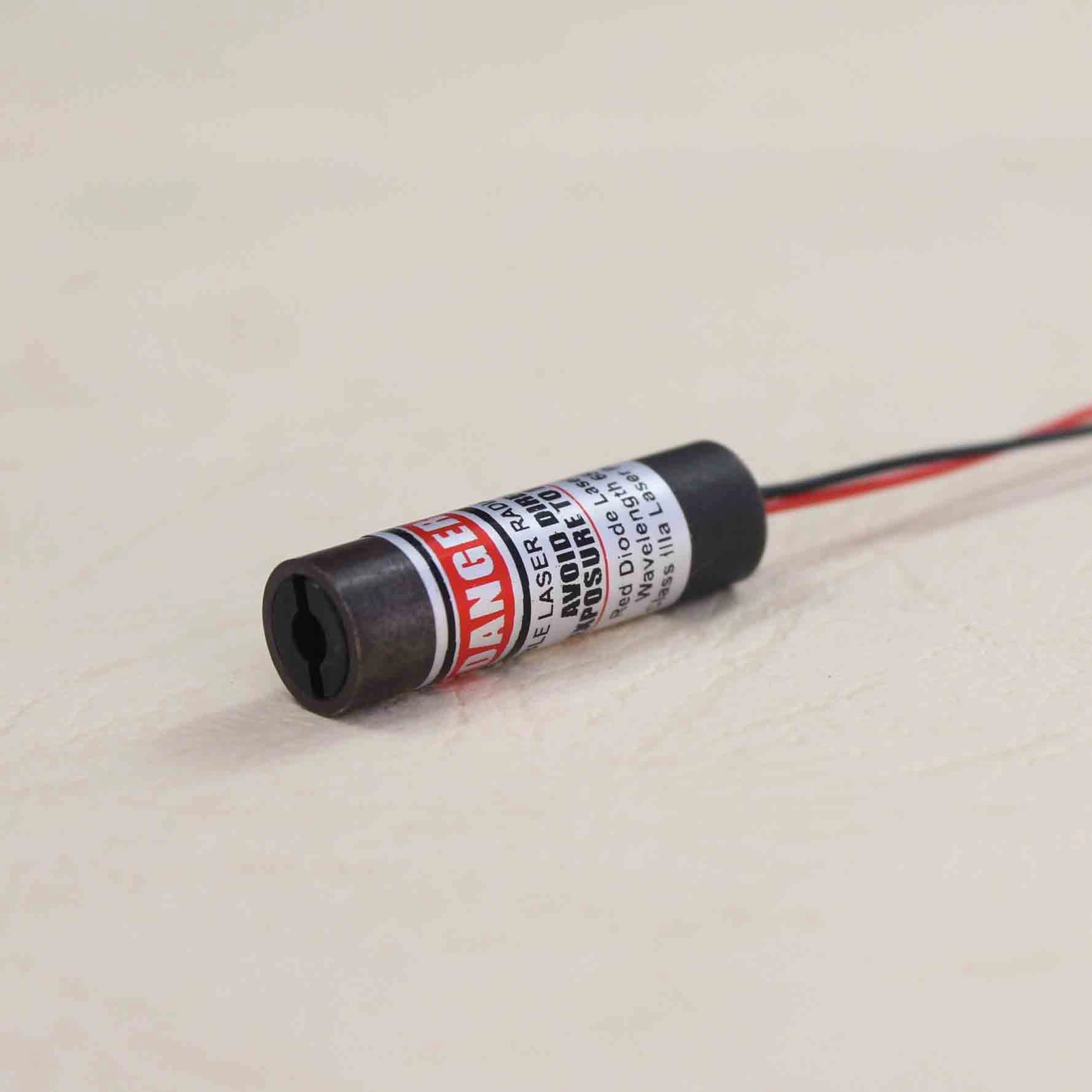

The AM450L50G1M is a TTL modulated blue line laser diode module subassembly with collimated beam. The maximum laser output power is 50.0mW at 450nm.
| ITEM | SPECIFICATIONS |
| Model Number | AM450L50G1M Blue Line Laser Module |
| Wavelength | 450nm |
| Output Power | ≤50.0mW |
| Laser Mode | Pulse (TTL Modulation) |
| Output Aperture | Dia. 2.0mm |
| Line Width | ≤0.3mm@150mm |
| Fan Angle | 60° |
| Optics | Optical Glass Lens |
| Operating Current | <160mA |
| Operating Voltage | 3~12V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current (ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | Φ14x50mm (Driver PCB Inside) |
| Housing Material | Black Anodized Aluminum |
| Life Span | 8,000Hrs |
 |  |
Scientific Research
Laboratory Instrument
Laser aiming devices
Laser alignment instrument
Laser pointing instrument
Laser positioning devices
Laser surveying instrument
Laser detection equipment
Medical Laser Instrument
Image Processing Instrument
Machine Vision Gudiance System
OEM Instrumentation
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser module manufacturer
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
MOQ: 1pc
Delivery time: 2~4 Weeks
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
