520nm 10mW 4um Singlemode Fiber Coupled Pigtailed Laser Diodes with FC Connector

Product Description of 520nm 10mW 4um Singlemode Fiber Coupled Pigtailed Laser Diodes with FC Connector

AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.

Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.

※ 520nm 10mW 4um Pigtailed Laser Diode Descriptions

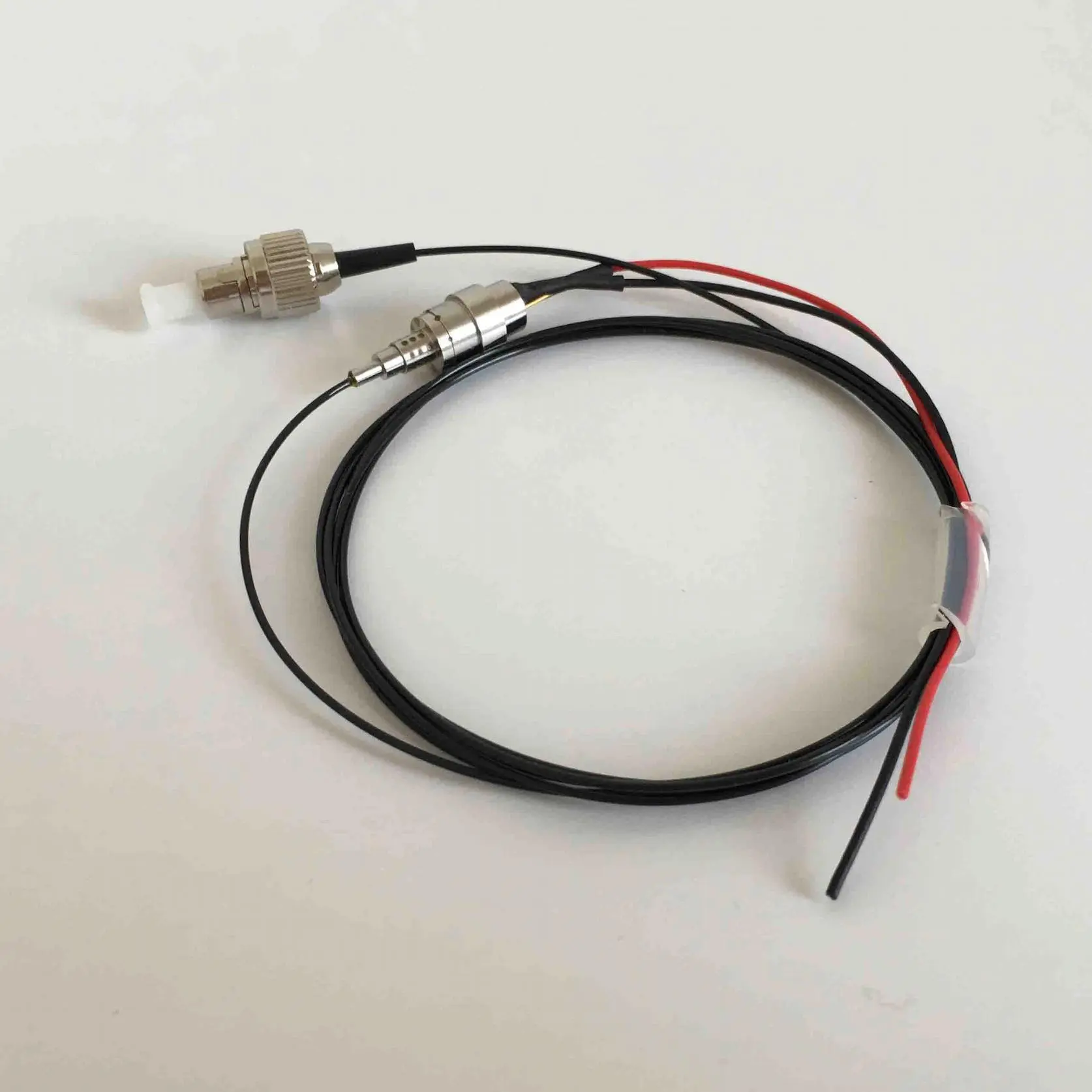

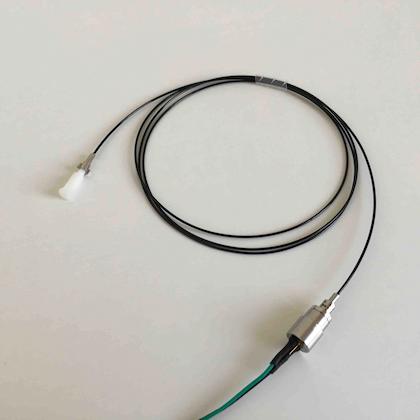

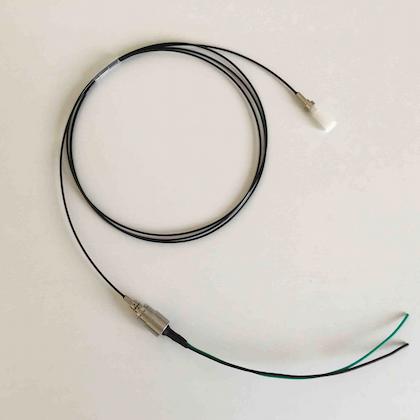

The AM520SF10FC is a green pigtailed fiber coupled laser diode subassembly with collimated beam. The maximum laser output power is 10.0mW at 520nm.

※ 520nm 10mW 4um Pigtailed Laser Diode Optical and Electrical Characteristics

※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

1. Optical Alignment Systems

2. Medical Laser Instrument

3. CTP Laser Printing


4. OEM Instrumentation

5. Laboratory Instrument

6. Laser Test and Inspection Equipment

※ Why buy Laser Modules from AimLaser?

1. Provide One year warranty

2. Offer customized solutions

3. Normal sample lead time: within 2 weeks

4. Conform to ROHS, FDA, IEC, SGS standards

5. ISO9001:2008 certified laser module manufacturer

6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips




※  Fiber Coupled Laser Modules Production Process

※ Laser Modules Production Equipment

※ Laser Modules Testing Equipment

※ Laser Module Payment and Shipment

1. MOQ: 1pc

2. Delivery time: 3-20 days

3. Shipment Terms: FOB Xi'an China

4. Payment Terms: T/T, Western Union, PayPal

5. Shipment Method: DHL, UPS, FedEx or TNT
