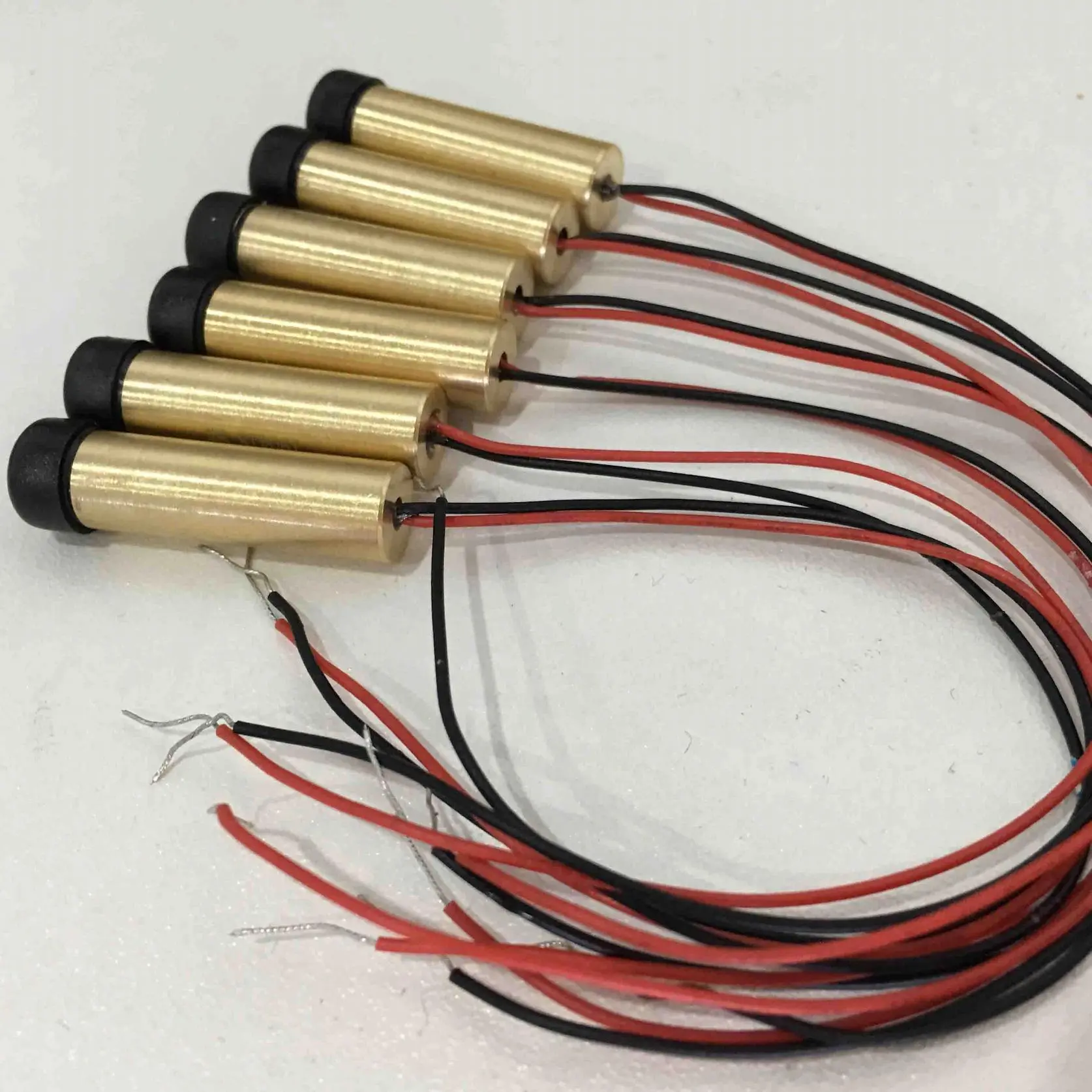

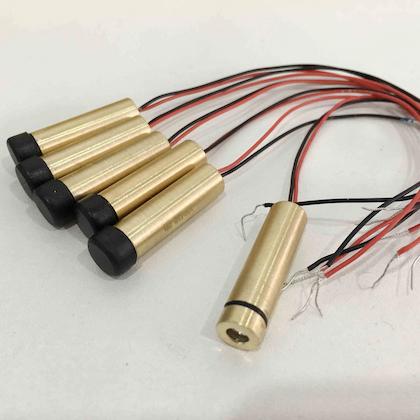

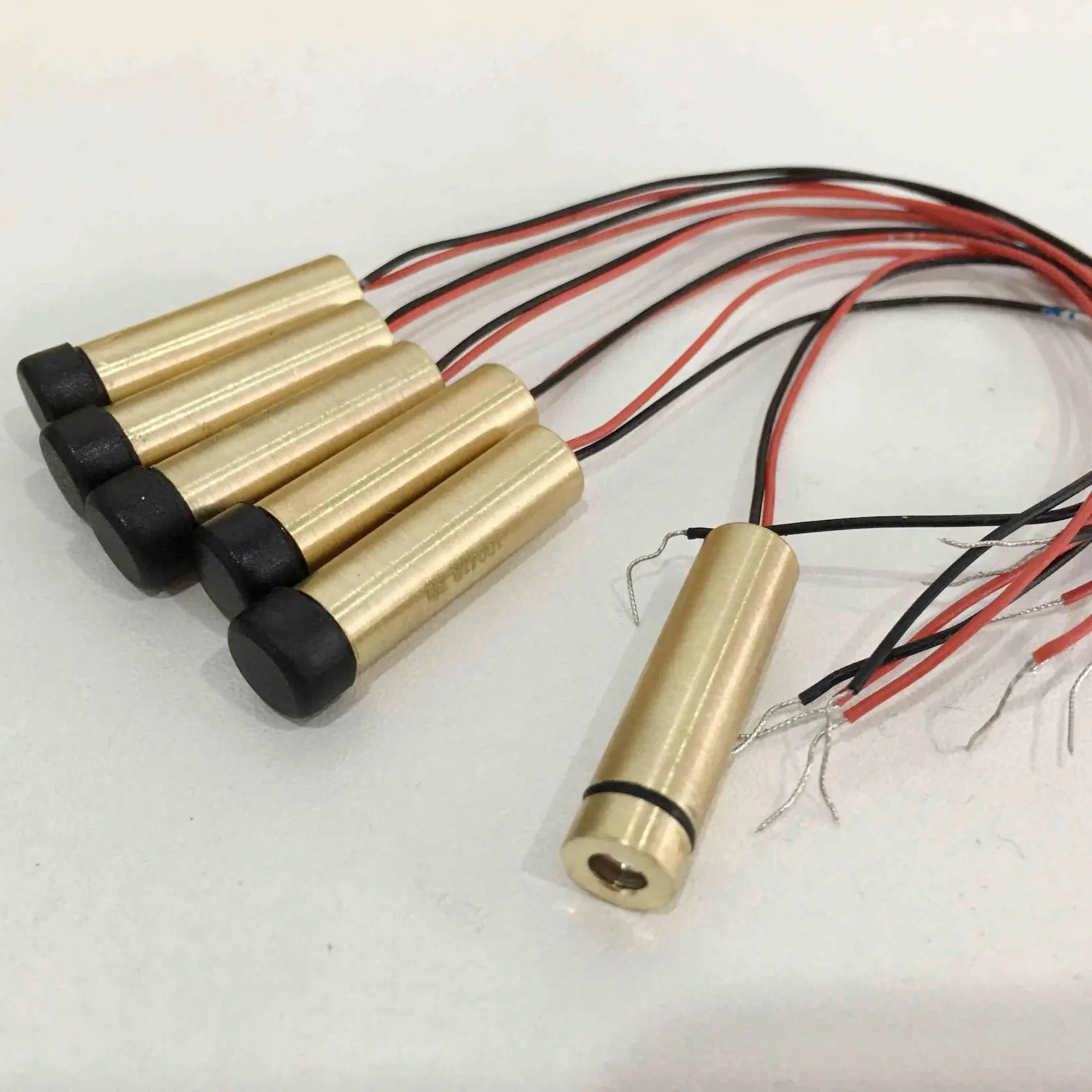

520nm 20mW Green Laser Module Dot Laser Head for Laser Gas Detector

Laser Wavelength:

520nm
Laser Color:

Dot Green Laser Beam
Output Power:

20mW
Beam Size:

6x14mm@15m
Dimensions:

8x30mm Full Brass

 Inquire Add to Basket

Model: AM520D40G1
Brand: AIMLASER
Code: 90132000.99
Color: Green, Visible
Wavelength: 520nm
Type: CW, Dot

Product Description

Product Description of 520nm 20mW Green Laser Module Dot Laser Head for Laser Gas Detector

AimLaser provides customized Green Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The green laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 520nm 20mW Green Dot Laser Diode Module Descriptions

The AM520D40G1 is a green laser module subassembly with collimated beam. The maximum laser output power is 20.0mW at 520nm.

※ 520nm 30mW Green* Dot Laser Diode Module Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM520D40G1 Green Dot Laser Diode Module
Wavelength	520nm
Output Power	≤20.0mW
Laser Mode	CW
Beam Size	≤6x14mm@15m
Divergence	0.3mrad
Optics	Optical Glass Lens
Operating Current	<200mA
Operating Voltage	3V-5V DC
CDRH Class	Class IIIb
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-20℃ to 60℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ8x30mm (APC Inside)
Housing Material	Full Brass
Life Span	8,000Hrs
