Model: ALP520-30A
Brand: AIMLASER
Code: 90132000.99
Color: Green
Wavelength: 520nm
Type: CW Line
AimLaser provides customized Red and Green Laser Line Generators with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 12V DC or 110VAC.
We can make fixed focus and adjustable focus laser line projectors to meet different customers' requirements.

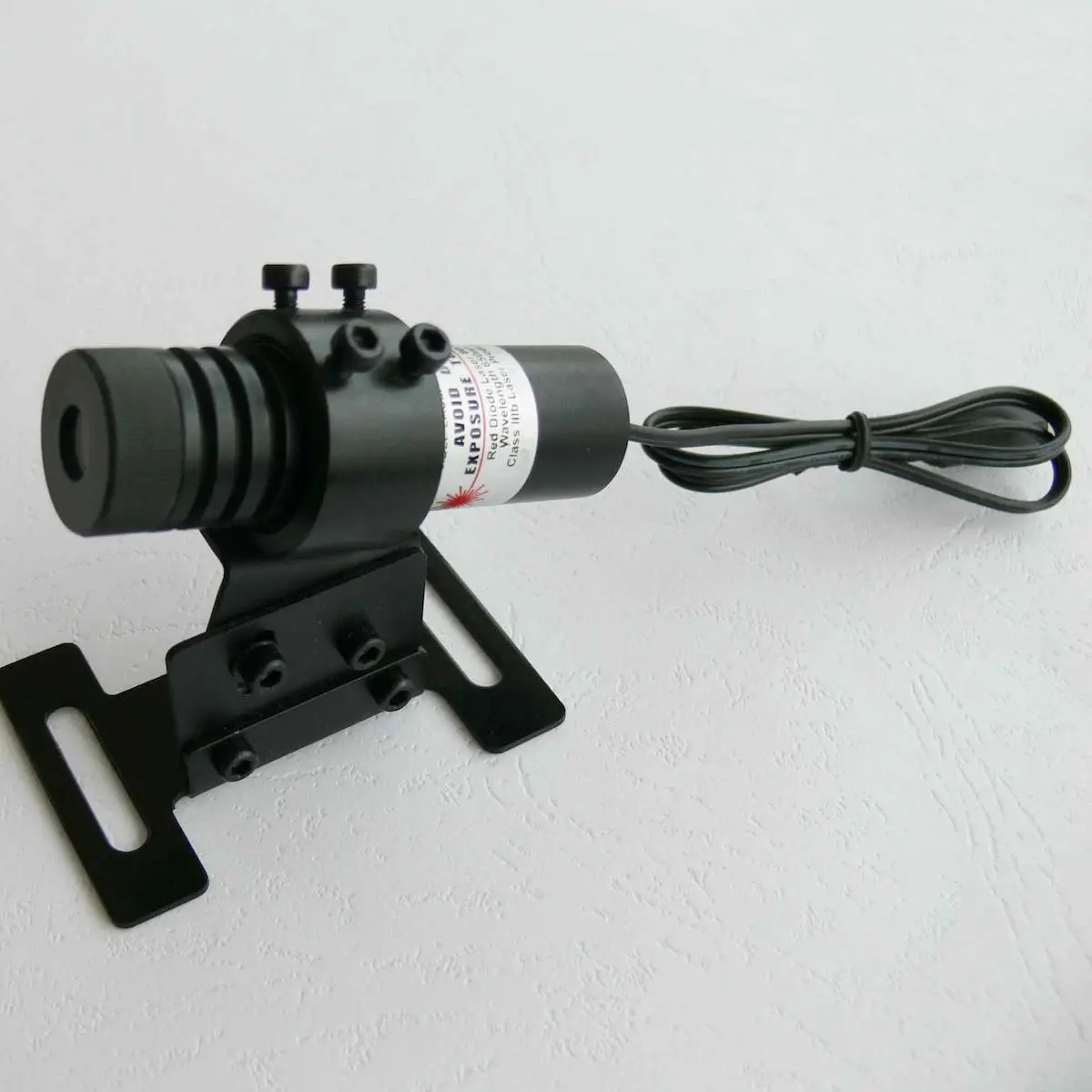

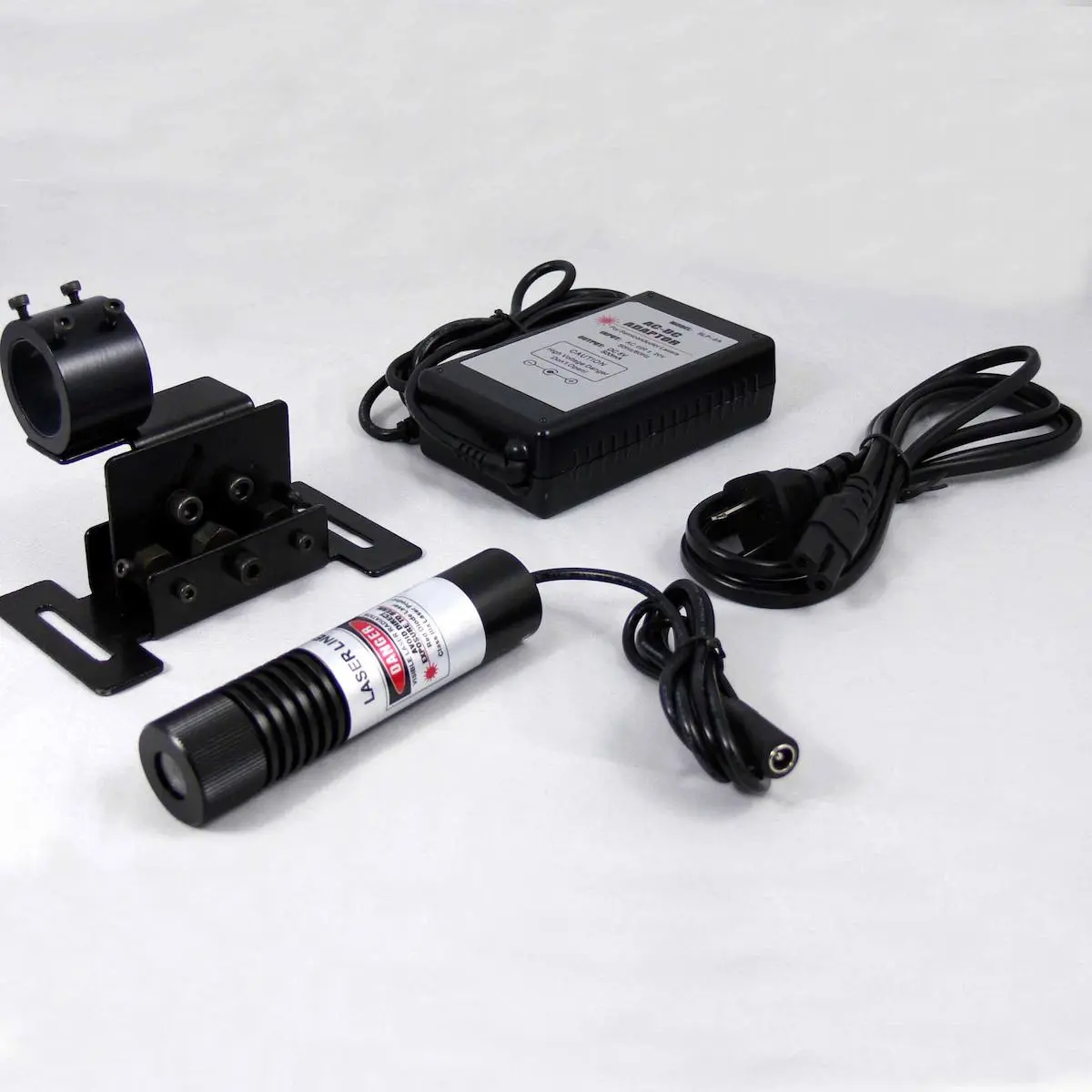

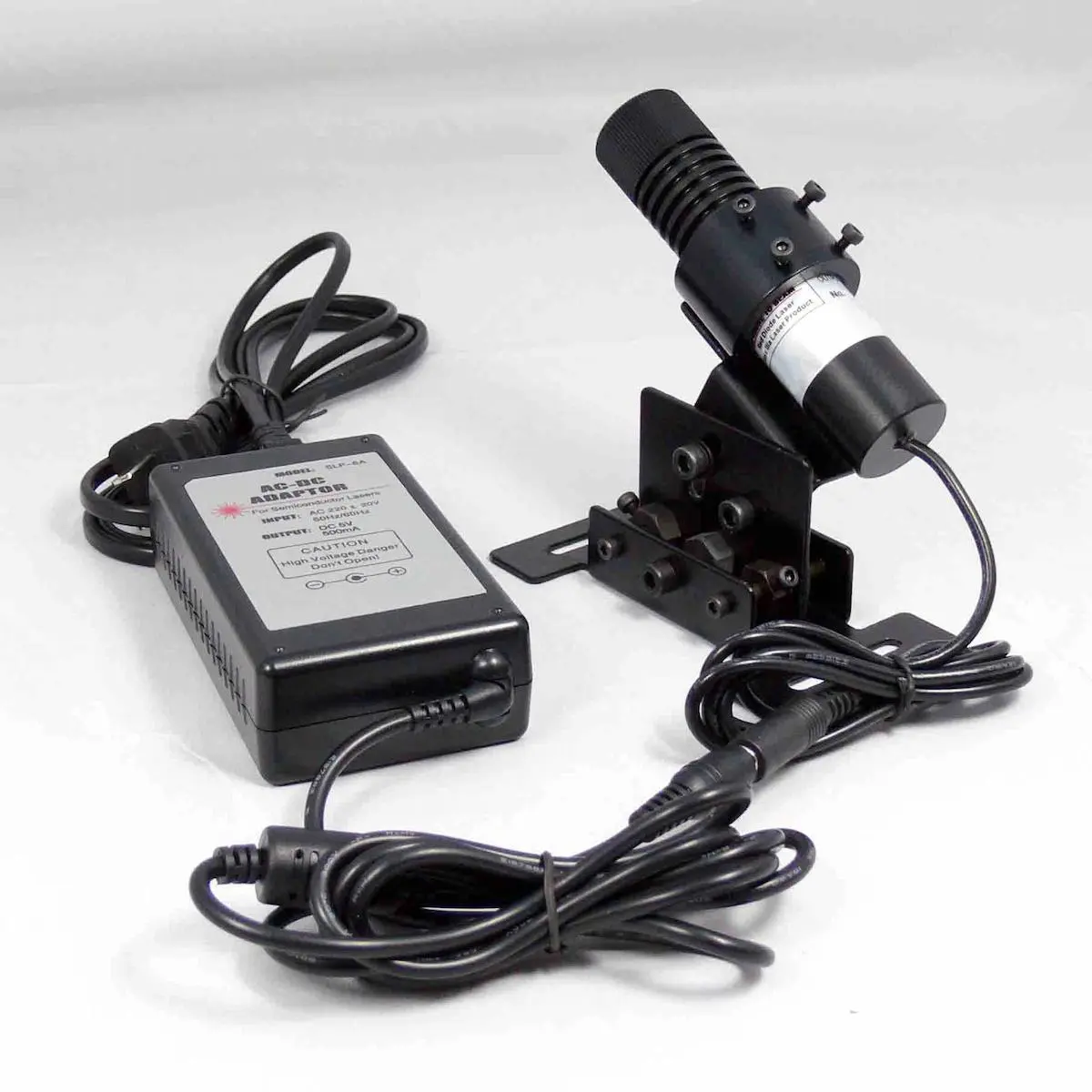

Special power supply and mounting bracket are provided.
Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.
It is widely used in wood, stone, and cloth cutting machines or packing machines by projecting a distinct red or green working line or edges for alignment and positioning on materials to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.
The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.
The ALP520-30A is a red laser line generator for stone, wood and textile cutting machine. The maximum laser output power is 30.0 mW at 520nm.
| ITEM | SPECIFICATIONS |
| Model Number | ALP520-30A Green Laser Line Generator |
| Wavelength | 520nm |
| Output Power | ≤30.0mW |
| Output Aperture | Φ5.0mm |
| Line Width | ≤3.0mm@5m |
| Fan Angle | 60° |
| Divergence | 0.6mrad |
| Optics | Optical Glass Lens |
| Operating Current | <280mA |
| Operating Voltage | 3-5V or 12V or 24V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto Power Control (APC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | Φ16x80mm or Φ20x110mm (PCB Inside) |
| Case Material | Black Anodized Aluminum |
| Life Span | 8,000Hrs |
 |  |
Long lifetime
Compact size
Easy mounting
High brightness
Convenient adjustment
High reliability and stability
Wide temperature operation -10℃ to 50℃
Industrial laser alignment and positioning
Stone, Wood and Metal working
Fabric, Rubber and Tyre cutting or processing
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser module manufacturer
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
