635nm 20mW Red Dot Laser Pointers Visible Red Beam Laser Light

Laser Wavelength:

635nm
Laser Color:

Red Dot Laser Beam Visible Light
Output Power:

20mW
Beam Size:

4x3mm@1m
Housing Material:

12x40mm Insulated Brass or Aluminum

 Inquire Add to Basket

Model: AM635D20G1
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 635nm
Type: Pulse, CW, Dot, TTL

Product Description

Product Description of 635nm 20mW Red Dot Laser Pointers Visible Red Beam Laser Light

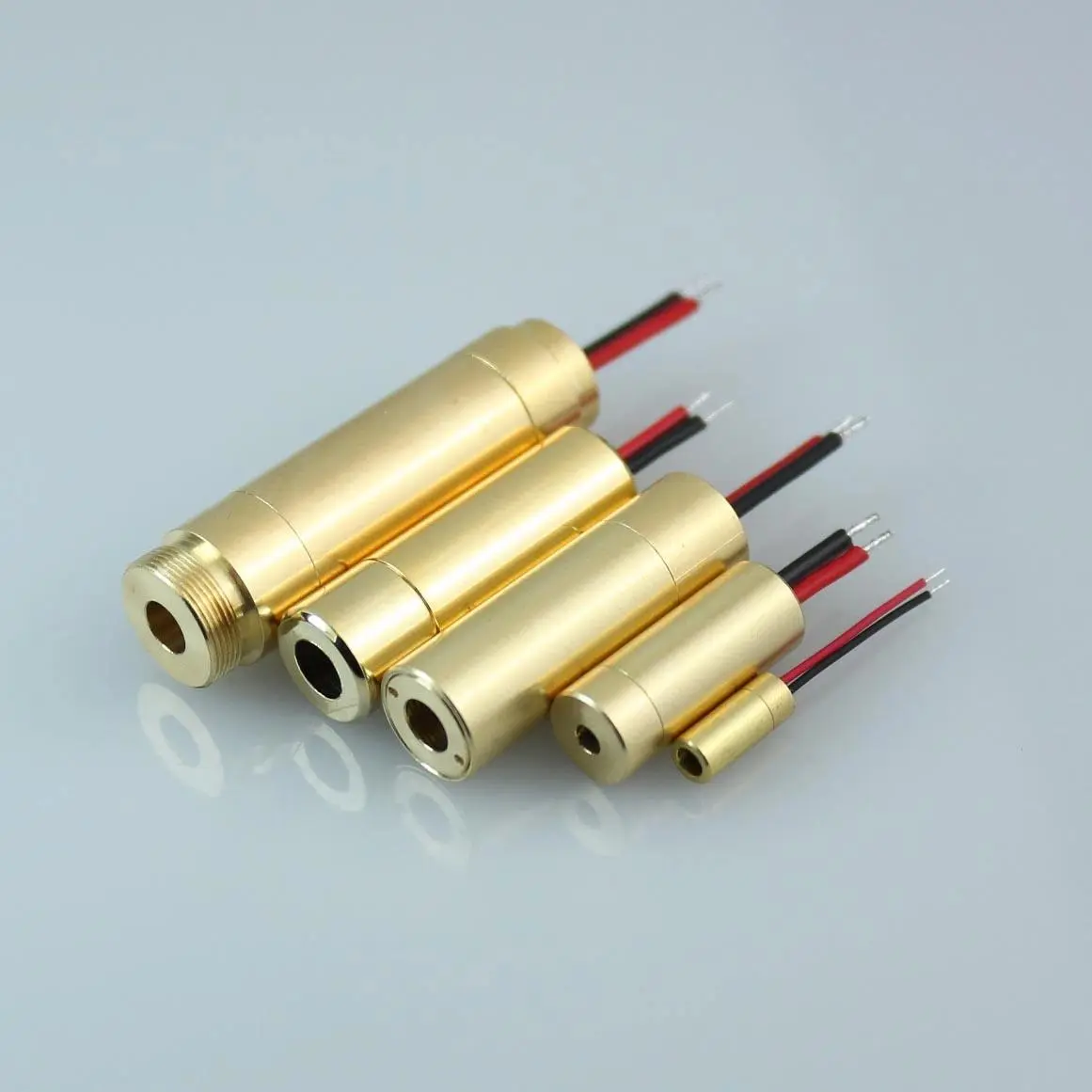

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 635nm 20mW Visible Dot Red* Laser Module Descriptions*

The AM635D20G1 is a red laser module subassembly with collimated beam. The maximum laser output power is 20.0mW at 635nm.

※ 635nm 20mW Visible Dot Red Laser Module* Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM635D20G1 Visible Dot Red Laser Module
Wavelength	635nm
Output Power	≤20.0mW
Laser Mode	CW
Beam Size	≤4x3mm@1m
Divergence	0.2mrad
Optics	Optical Glass Lens
Operating Current	<90mA
Operating Voltage	3V-5V DC
CDRH Class	Class IIIb
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ12x40mm (APC Inside)

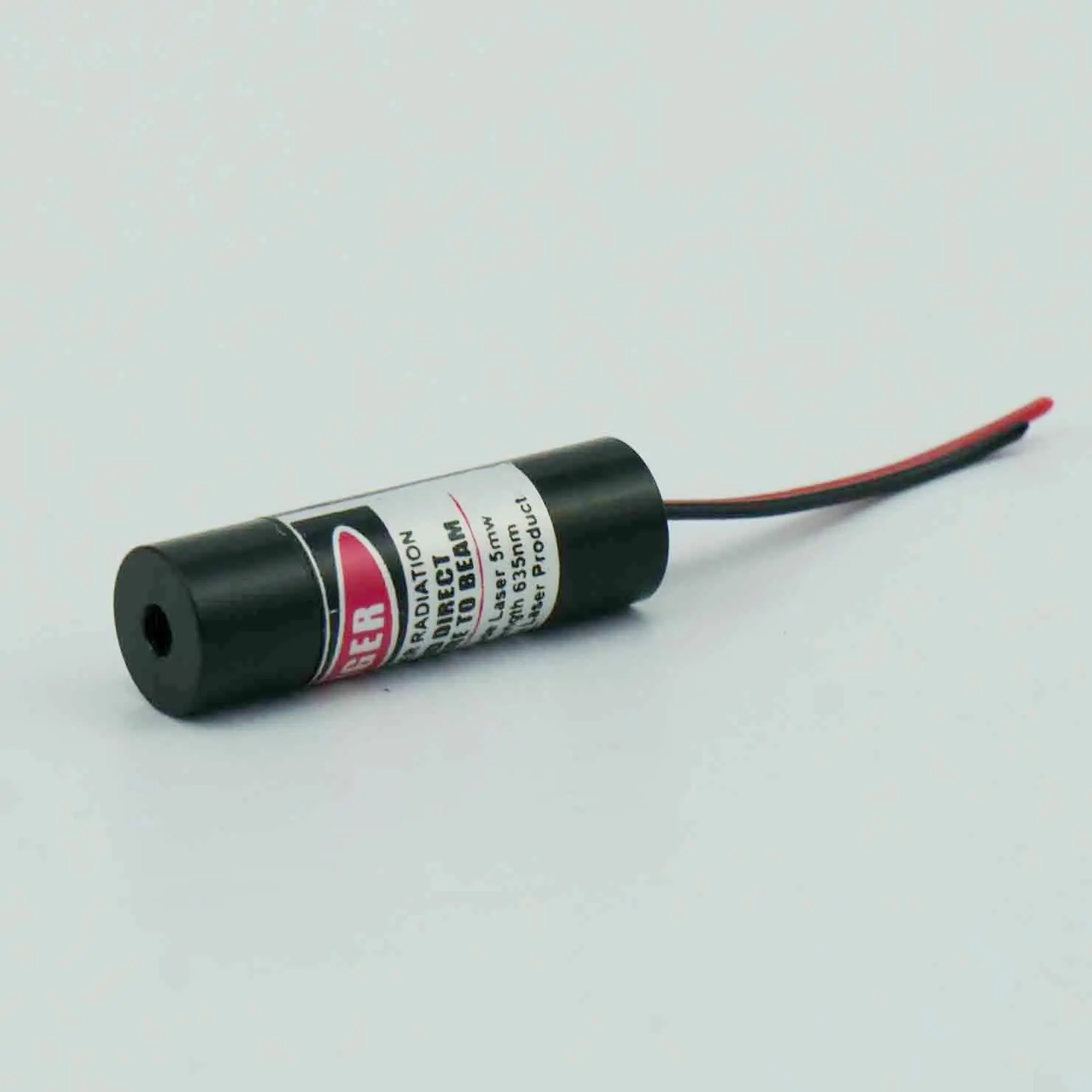

Housing Material	Full Brass or Black Anodized Aluminum with Insulation
Life Span	10,000Hrs
