Model: AM635C05G1
Brand: AIMLASER
Code: 90132000.99
Color: Red Visible
Wavelength: 635nm
Type: Line Cross
AimLaser provides customized Red and Green Cross Line Laser Modules with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 24V DC or 110VAC.

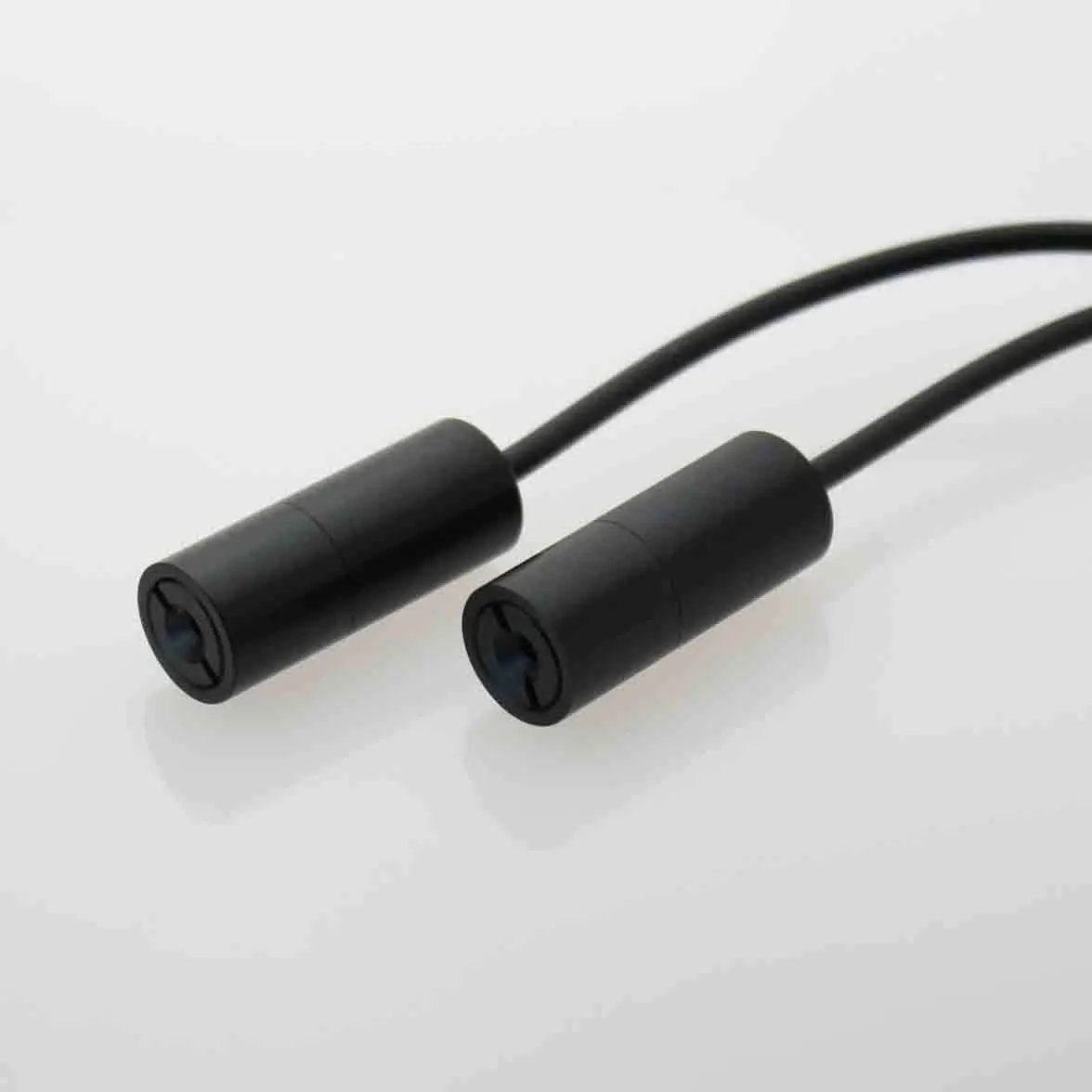

Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.
It is widely used in laser distance measurer, self leveling laser tools, laser survey instrument by projecting a distinct red or green 360 degree laser line for alignment and positioning and surveying to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.
The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.

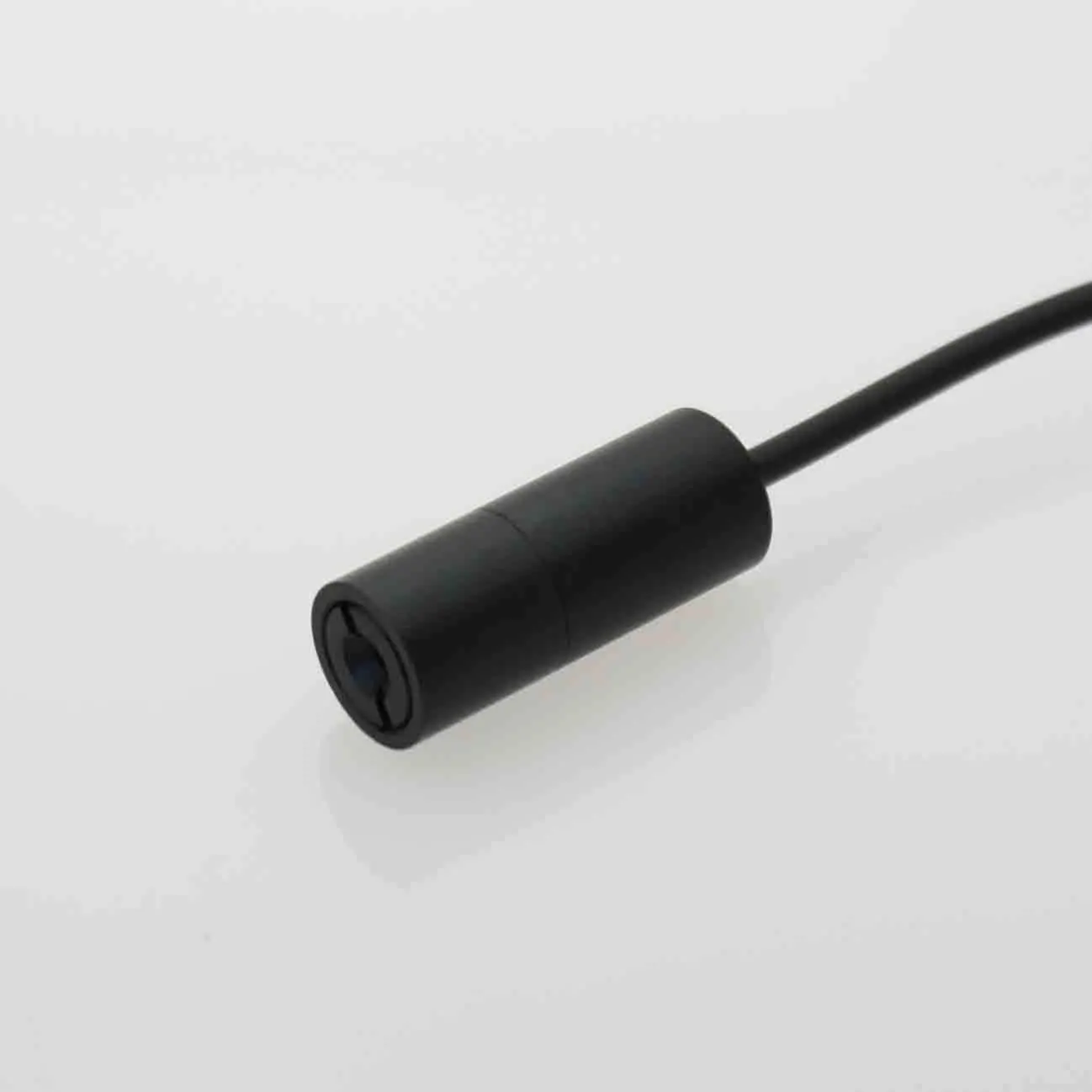

The AM635C05G1 is a red cross line laser modules for self leveling laser tools, laser alignment tools or laser tape measure equipment. The maximum laser output power is 3mW at 635nm.
| ITEM | SPECIFICATIONS |
| Model Number | AM635C05G1 (Cross Line Laser Modules) |
| Wavelength | 635nm |
| Output Power | <3.0mW |
| Fan Angle | ≥110° |
| Line Width | ≤3.0mm@5m |
| Linearity | ≤80" |
| Optics | Optical Glass Lens |
| Operating Current | <45mA |
| Operating Voltage | 3-5V or 12V or 24V DC |
| CDRH Class | Class IIIa |
| Circuit control | Auto Power Control (APC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | Φ15x24mm |
| Case Material | Black Anodized Aluminum |
| Life Span | 8,000Hrs |
 |  |
Long lifetime
Compact size
Easy mounting
High brightness
Convenient adjustment
High reliability and stability
Wide temperature operation -10℃ to 50℃
Laser Line Maker
Laser Tape Measurer
Laser Measuring Tools
Laser Alignment Systems
Laser Distance Measurer
Laser Survey Instrument
3D Laser Scanner
Self Leveling Laser Tools etc.
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser module manufacturer
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
