635nm 5mW Collimated Laser Diode Modules 3V 5V Laser Aiming Modules

Laser Wavelength:

635nm
Laser Color:

Red Visible Dot Laser Beam
Output Power:

5mW
Beam Size:

4x8mm@10m
Housing Material:

6x12mm Full Brass

 Inquire Add to Basket

Model: AM635D10G1
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 635nm
Type: CW, Dot

Product Description

Product Description of 635nm 5mW Collimated Laser Diode Modules 3V 5V Laser Aiming Modules

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 635nm 5mW Dot Red* Laser Diode Module Descriptions*

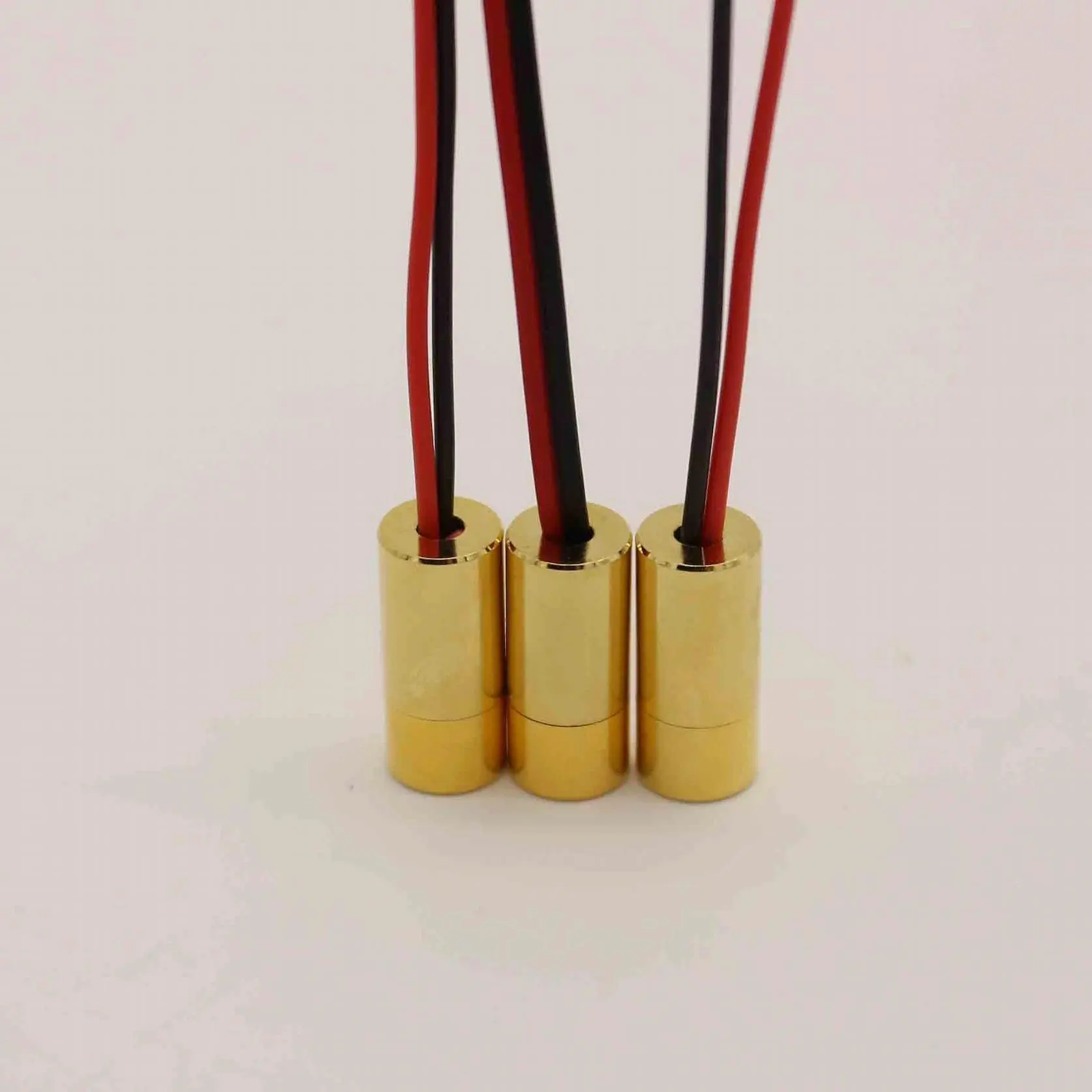

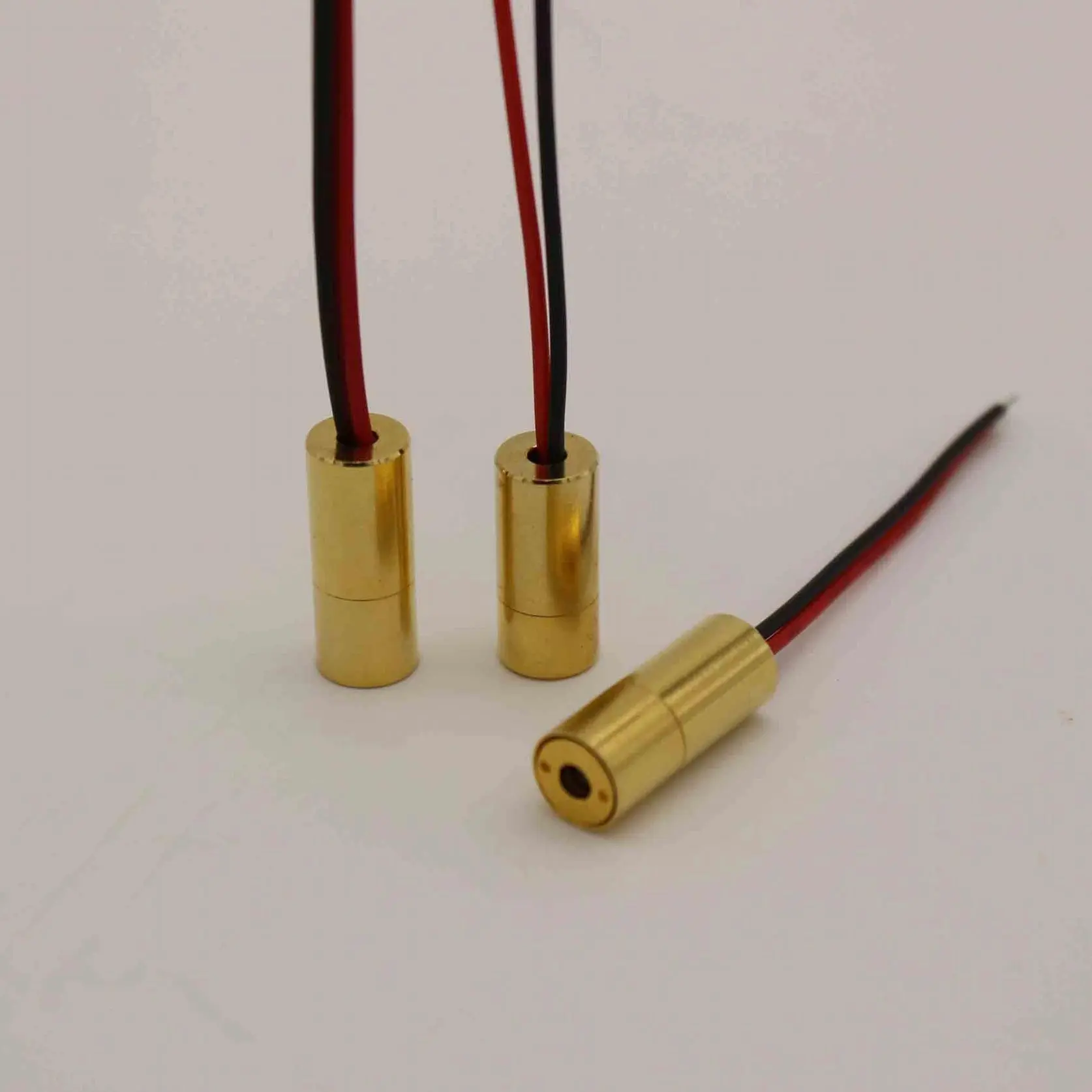

The AM635D10G1 is a red laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 635nm.

※ 635nm 5mW Dot Red* Laser Diode Module Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM635D10G1 Red Dot Laser Diode Module
Wavelength	635nm
Output Power	≤5.0mW
Laser Mode	CW
Beam Size	4x8mm@10m
Divergence	0.5mrad
Optics	Optical Glass Lens
Operating Current	<50mA
Operating Voltage	3V-5V DC
CDRH Class	Class IIIa
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ6x10mm (APC Inside)
Housing Material	Full Brass
Life Span	10,000Hrs
