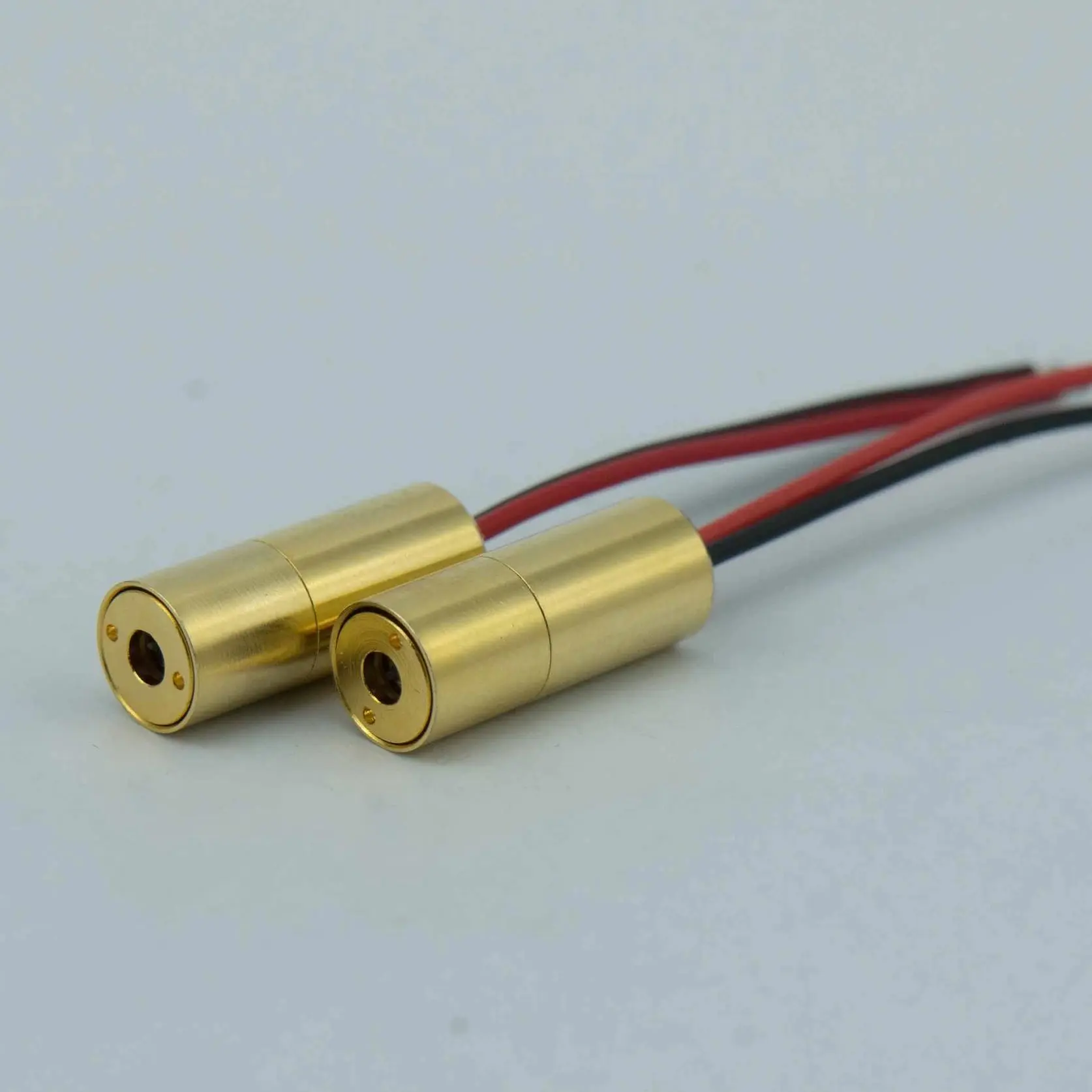

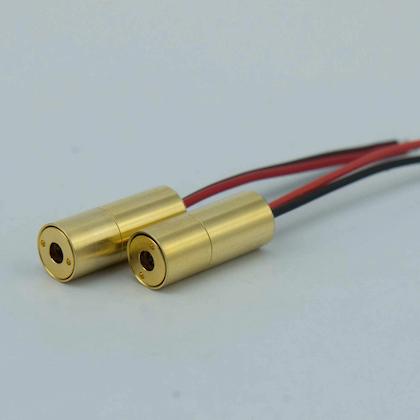

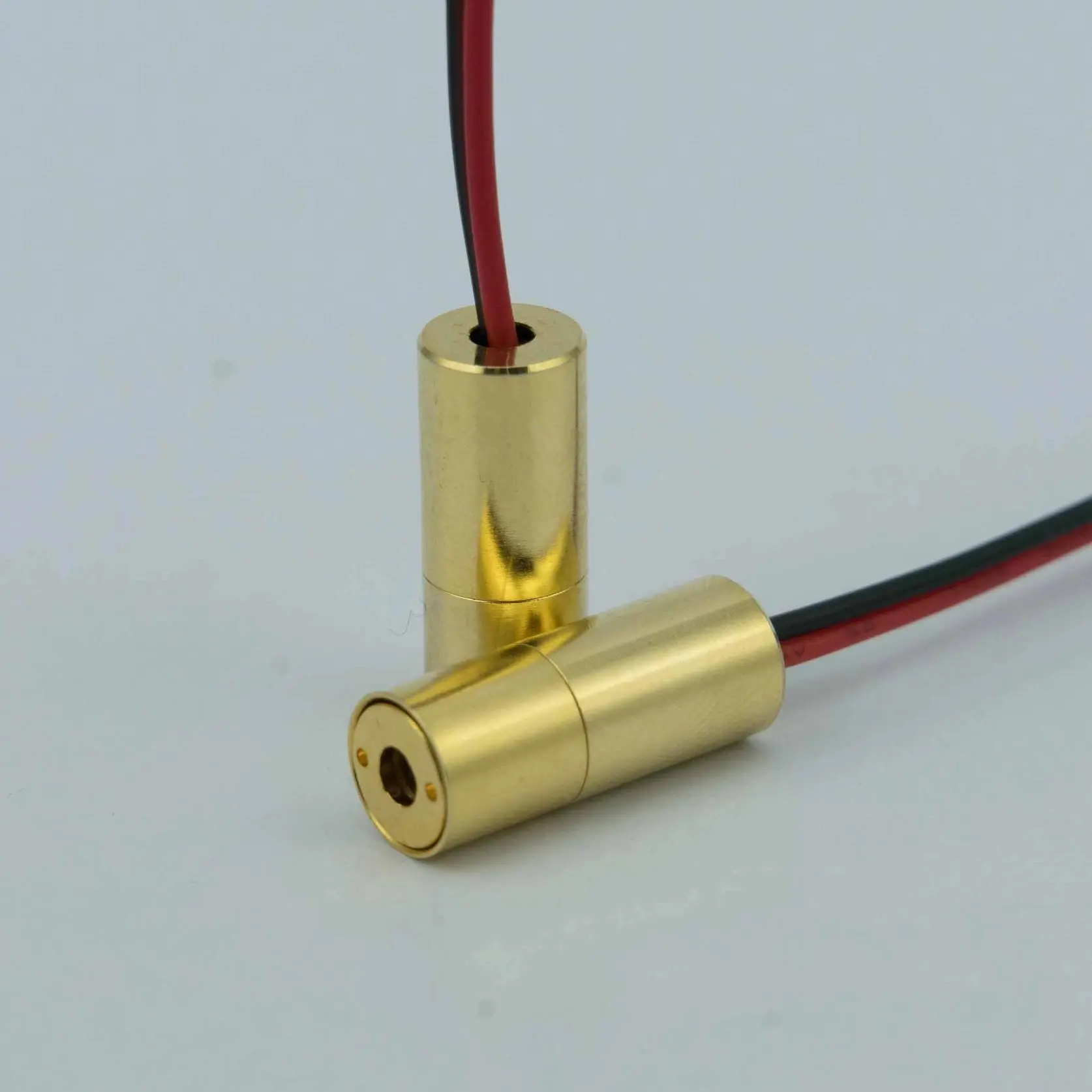

650nm 1mW Class II Red Laser Diode Module for Medical Laser Instrument

Laser Wavelength:

650nm
Laser Color:

Visible Red Dot Laser Beam
Output Power:

1mW
Beam Size:

≤0.1mm@30m
Housing Material:

10x35mm Full Brass with Insulation

 Inquire Add to Basket

Model: AM650D01G1
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 650nm
Type: CW, Dot

Product Description

Product Description of 650nm 1mW Class II Red Laser Diode Module for Medical Laser Instrument

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 1mW Dot Red* Laser Diode Module Descriptions*

The AM650D01G1 is a red laser module subassembly with collimated beam. The maximum laser output power is 1.0mW at 650nm.

※ 650nm 1mW Dot Red* Laser Diode Module Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM650D01G1 Red Dot Laser Diode Module
Wavelength	650nm
Output Power	≤1.0mW
Laser Mode	CW
Beam Size	≤0.1mm@30mm
Divergence	0.8mrad
Optics	Optical Glass Lens
Operating Current	<30mA
Operating Voltage	3V-5V DC
CDRH Class	Class II
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ10x30mm (APC Inside)
Housing Material	Full Brass with Insulation
Life Span	10,000Hrs
