650nm 50mW 50um Uniform Distribution Line Laser Module

650nm 50mW 50um Uniform Distribution Line Laser Module 650nm 50mW 50um Uniform Distribution Line Laser Module

  • Laser Wavelength:
    650nm
  • Output Power:
    50mW
  • Line Width:
    ≤50um@250mm
  • Fan Angle:
    60 Degrees
  • Housing:
    14*55mm Insulated Black Anodized Aluminum
  • Model: AM650U50G1

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Red  Visible

  • Wavelength: 650nm

  • Type: Pulse  CW  Line  TTL

Product Description

Product Description of 650nm 50mW 50um Uniform Distribution Line Laser Module

Laser Wavelength Chart

AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.

The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.


※ 650nm 50mW Powell Lens Uniform Line Laser Module Descriptions

The AM650U50G1 is a red line laser module subassembly with collimated beam. The maximum laser output power is 50.0mW at 650nm. Energy is uniformly distributed.


650nm 50mW Powell Lens Uniform Line Laser Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM650U50G1 Powell Lens Uniform Line Laser Module
Wavelength650nm
Output Power≤50.0mW
Output ApertureΦ4.0mm
Line Width≤50um@250mm
Fan Angle60°
Divergence0.3mrad
OpticsOptical Glass Lens
Operating Current<160mA
Operating Voltage3-12V DC
CDRH ClassClass IIIb
Circuit controlAuto Constanct Current (ACC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ14x55mm (PCB Inside)
Case MaterialAluminum Black Anodized (Insulation)
Life Span10,000Hrs

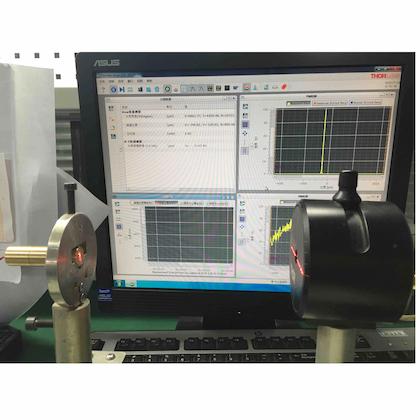

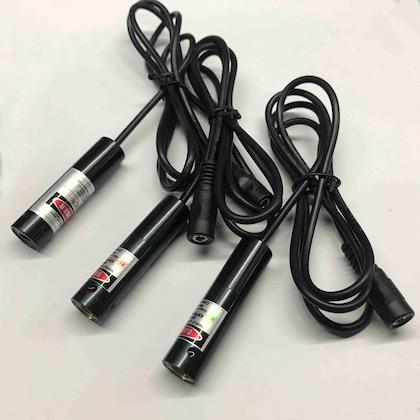

Line Laser for Smart Machine Vision CameraPowell Lens Designed


※ Powell Lens Uniform Line Laser Module Applications

  1. PPT Visions

  2. 3D Vision System

  3. Laser Profilometer

  4. Laser Contour Scanner

  5. Machine Visual Products

  6. Machine Vision Cameras

  7. Industrial Smart Cameras

  8. Laser Scanning System

  9. Laser Measuring Profilometer

  10. Laser Scribe Positioning Machines

  11. Industrial Visual Measurement System

  12. Industrial Robot Visual Guidance System

  13. Automatic Equipment Visual Positioning System


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
