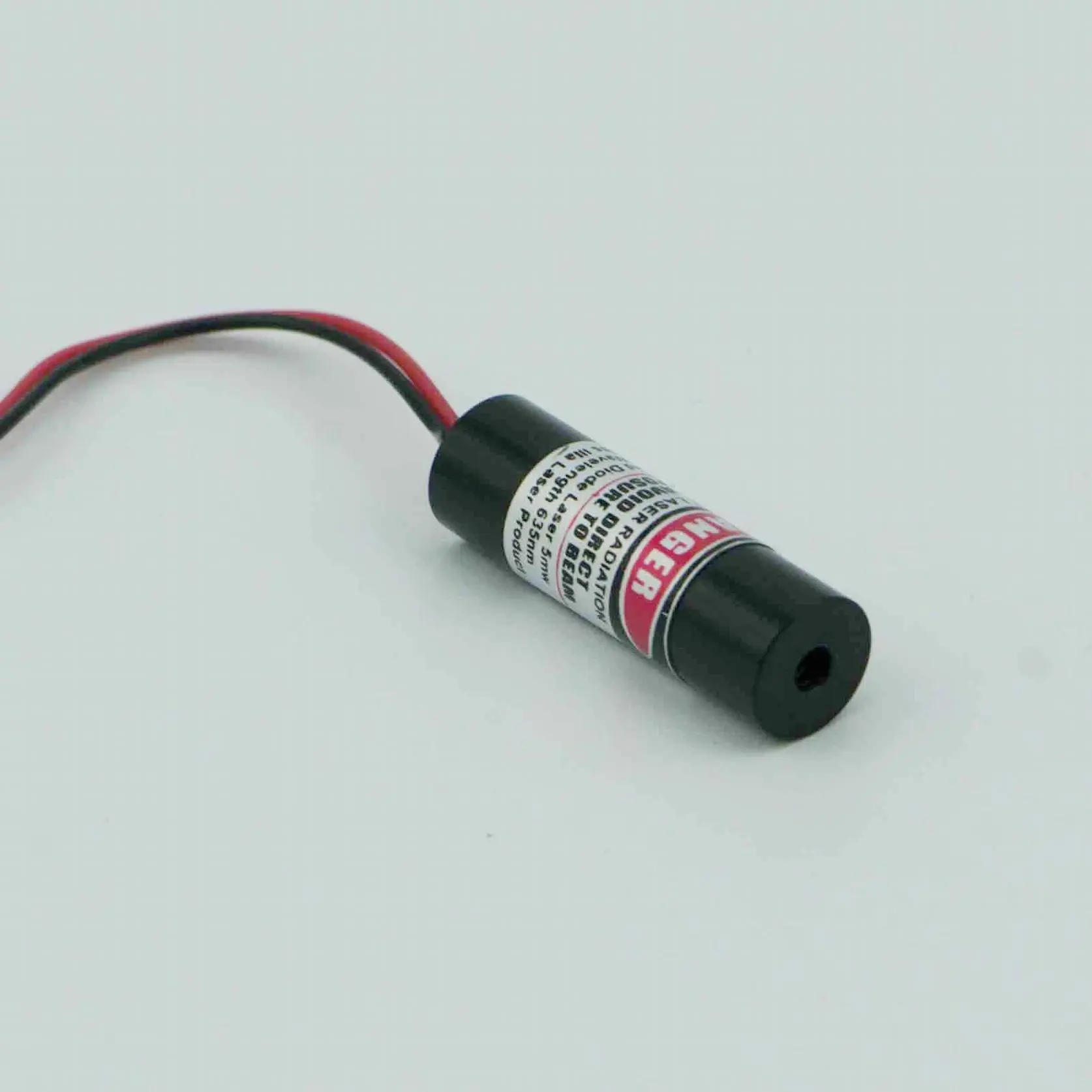

650nm 50mW Multimode Laser Diode Module Red Light Laser Driver Module

Laser Wavelength:

650nm
Laser Color:

Visible Red Spot Laser Module
Output Power:

≤50mW
Beam Size:

≤1mm@500mm
Housing Material:

14x50mm Black Anodized Aluminum

 Inquire Add to Basket

Model: AM650D100G1
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 650nm
Type: CW, Dot

Product Description

Product Description of 650nm 50mW Multimode Laser Diode Module Red Light Laser Driver Module

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 50mW Red Dot Laser Module Descriptions

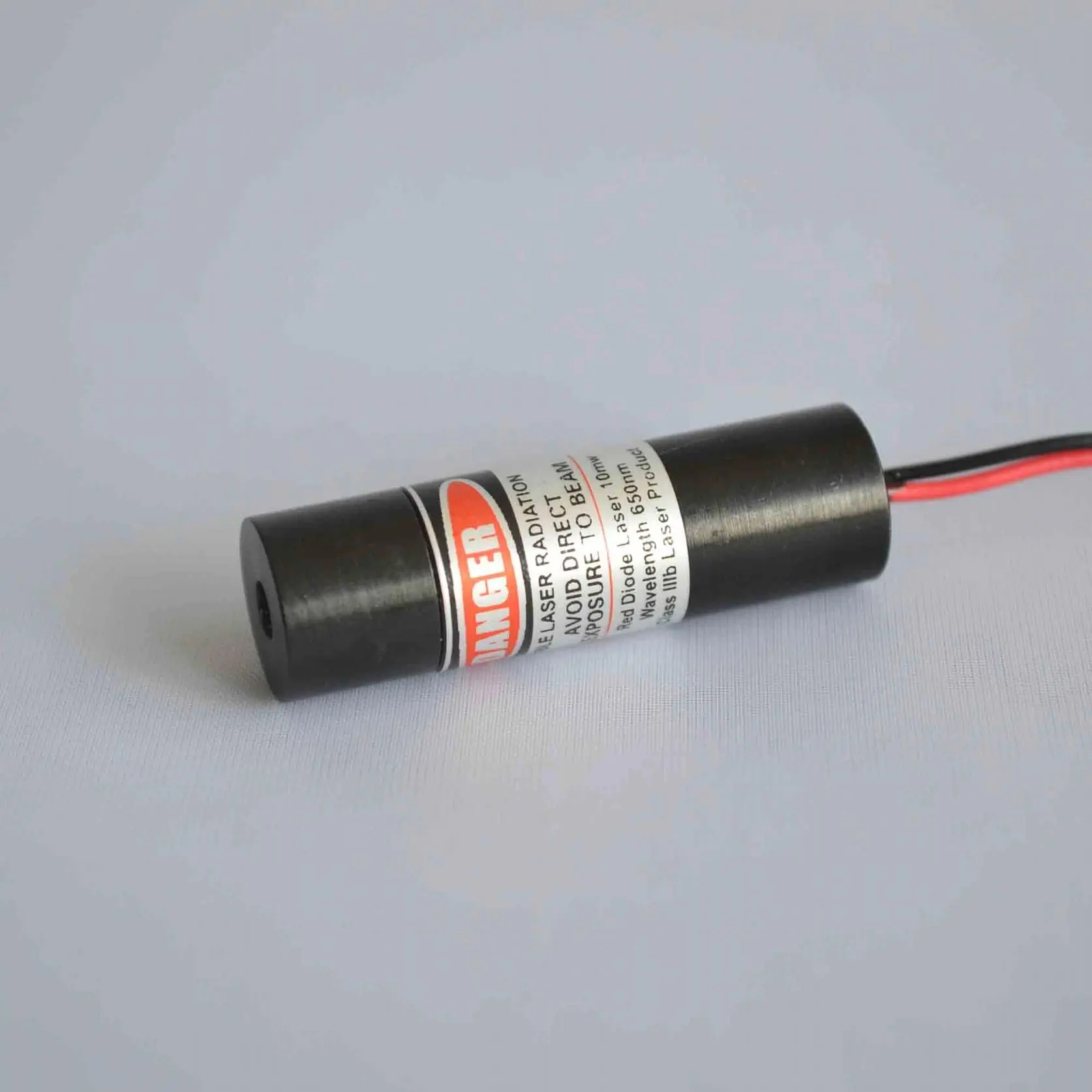

The AM650D100G1 is a red laser module subassembly with adjustable beam. The maximum laser output power is 50.0mW at 650nm.

※ 650nm 50mW Red Dot Laser Module Optical and Electrical Characteristics

ITEM	SPECIFICATIONS
Model Number	AM650D100G1 Red Dot Laser Module
Wavelength	650nm
Output Power	≤50.0mW
Laser Mode	CW
Beam Size	≤1.0mm@500mm
Divergence	0.5mrad
Optics	Optical Glass Lens
Operating Current	<180mA
Operating Voltage	3V-5V DC
CDRH Class	Class IIIb
Circuit control	Auto Constant Current (ACC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ14x50mm (APC Inside)
Housing Material	Black Andoized Aluminum
Life Span	10,000Hrs
