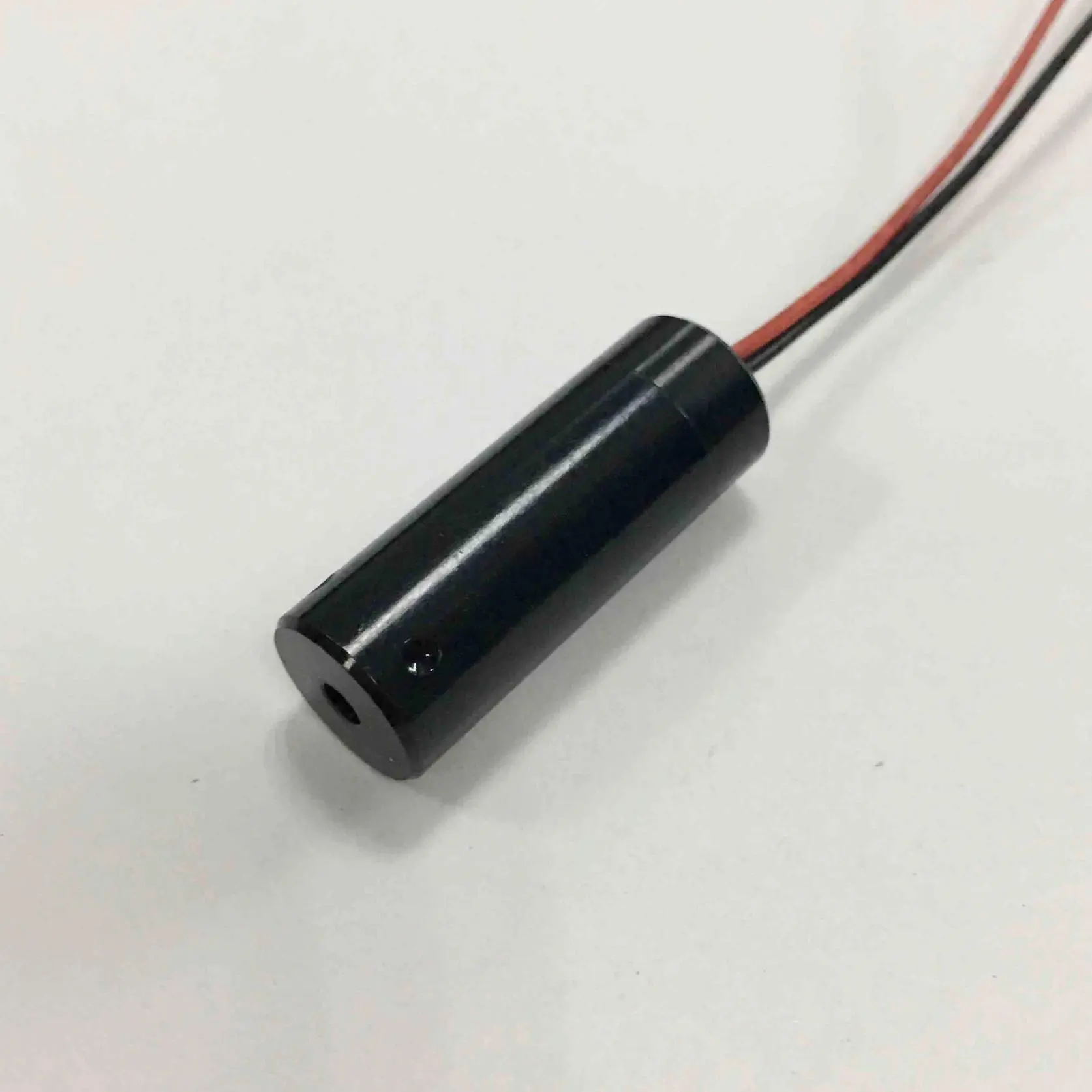

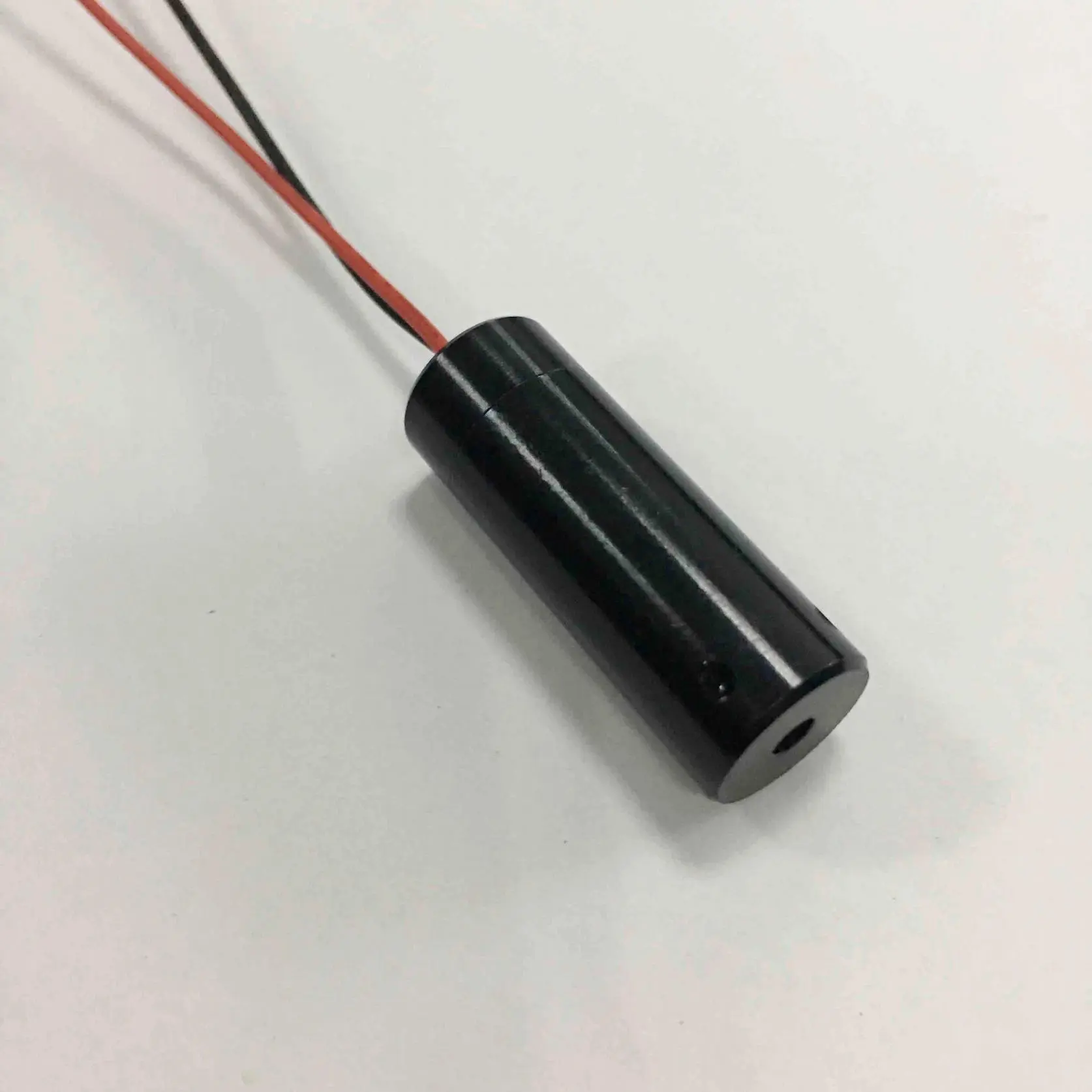

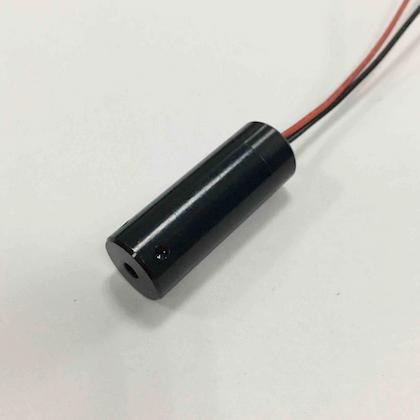

808nm 50mW Invisible Infrared Laser Beam for Night Vision Products

Laser Wavelength:

808nm
Laser Color:

Invisible Laser Beam IR Dot
Output Power:

50mW
Beam Size:

6x10mm@10m
Housing Material:

12x40mm Black Anodized Aluminum

 Inquire Add to Basket

Model: AM808D50G1
Brand: AIMLASER
Code: 90132000.99
Color: IR, Invisible
Wavelength: 808nm
Type: CW

Product Description

Product Description of 808nm 50mW Invisible Infrared Laser Beam for Night Vision Products

AimLaser provides customized Infrared Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The infrared laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 808nm 50mW IR Laser Module Descriptions

The AM850D50G1 is an infrared laser module subassembly with collimated beam. The maximum laser output power is 50.0mW at 808nm.

※ 808nm 50mW IR Laser Module* Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM808D50G1 IR Laser Diode Module
Wavelength	808nm
Output Power	≤50.0mW
Laser Mode	CW
Beam Size	≤6x10mm@10m
Divergence	0.5mrad
Optics	Optical Glass Lens
Operating Current	<200mA
Operating Voltage	3-5V DC
CDRH Class	Class IIIb
Circuit control	Auto Constant Current (ACC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-20℃ to 60℃
Dimensions	Φ12x40mm (PCB Inside)
Life Span	10,000Hrs
