Alignment Laser Emitter Module 650nm 20mW Single Mode Lasers

Laser Wavelength:

650m
Laser Color:

Dot Red Laser Moudle
Output Power:

≤20mW
Beam Size:

≤1.0mm@1m
Housing Material:

10*35mm Full Brass

 Inquire Add to Basket

Model: AM650D40G1
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 650nm
Type: Pulse, CW, Dot, TTL

Product Description

Product Description of Alignment Laser Emitter Module 650nm 20mW Single Mode Lasers

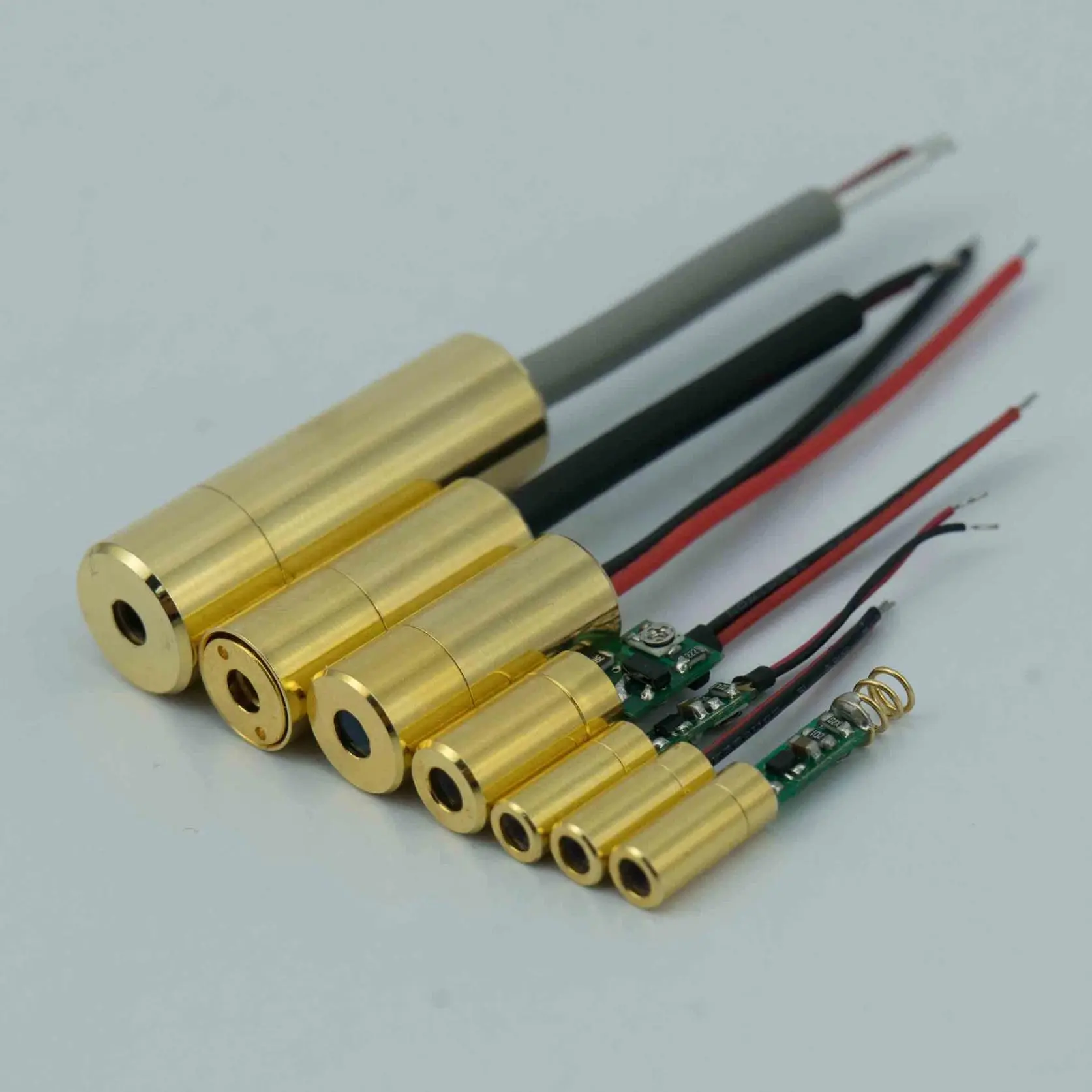

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 20mW Dot Red Laser Diode Module Descriptions

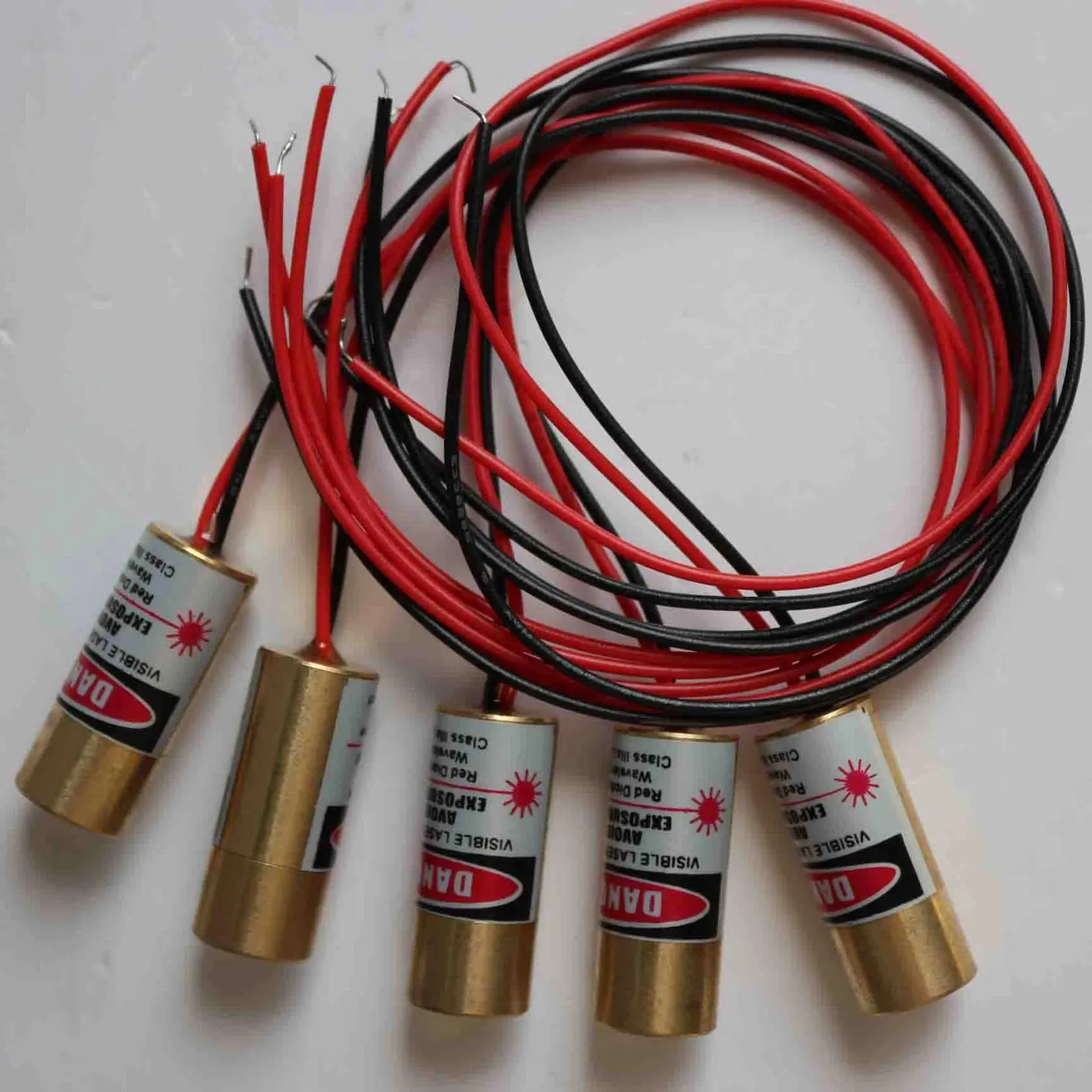

The AM650D40G1 is a red laser module subassembly with adjustable beam. The maximum laser output power is 20.0mW at 650nm.

※ 650nm 20mW Dot Red* Laser Diode Module Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM650D40G1 Dot Red Laser Diode Module
Wavelength	650nm
Output Power	≤20.0mW
Laser Mode	CW
Beam Size	≤1.0mm@1m
Divergence	0.6mrad
Optics	Optical Glass Lens
Operating Current	<90mA
Operating Voltage	3V-5V DC
CDRH Class	Class IIIb
Circuit control	Auto Constant Current (ACC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ10x35mm (APC Inside)
Housing Material	Full Brass or Black Andoized Aluminum
Life Span	10,000Hrs
