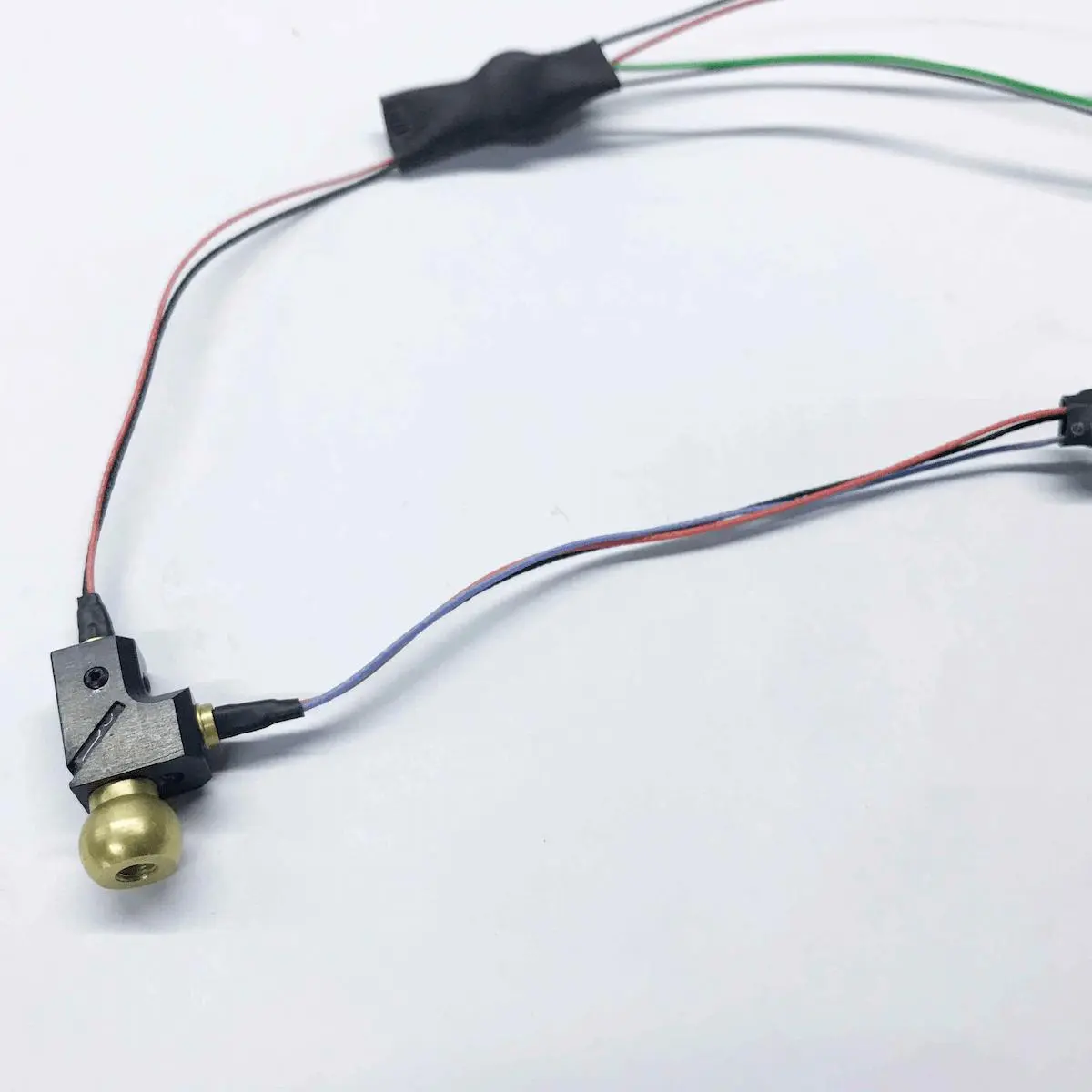

Coaxial Dual Beam Aiming Laser Modules 635nm and 520nm 1mW-5mW for Gun Laser Aiming Devices

Coaxial Dual Beam Aiming Laser Modules 635nm and 520nm 1mW-5mW for Gun Laser Aiming Devices Coaxial Dual Beam Aiming Laser Modules 635nm and 520nm 1mW-5mW for Gun Laser Aiming Devices

  • Laser Wavelength:
    635nm and 520m
  • Output Power:
    635nm 1.0-5.0mW and 520nm 1-5mW
  • Housing Material:
    Brass and Insulated Aluminum
  • Circuit Control:
    Auto Power Control (APC)
  • Applications:
    Dual Beam Laser Sights, Lasergrips
  • Model: DB-RG05G01

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Red  Green  Visible

  • Wavelength: 520nm  635nm

  • Type: Pulse  CW  Dot

Product Description

Product Description of Coaxial Dual Beam Aiming Laser Modules 635nm and 520nm 1mW-5mW for Gun Laser Aiming Devices

Laser Wavelength Chart

AimLaser provides customized Coaxial Dual Beam Laser Diode Module Combo with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 2V to 5V DC.

The dual beam laser modules possess characteristics of smallest size, low power consumption, compact structure and low cost, now are widely used in gun laser sights, gun laser grips, laser aiming devices, laser barcode scanners, miniature laser tools and precision instruments for laser positioning, laser alignment and laser scanning applications.


※ 635nm and 520nm 1mW-5mW Dual Beam Aiming Laser Module Descriptions

The DB-IR01G05 is an infrared and green laser light combo subassembly with collimated beam. The maximum laser output power is 1.0mW at 850nm and 5.0mW at 520nm.


635nm and 520nm 1mW-5mW Dual Beam Aiming Laser Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberDB-RG05G1 Red and Green Dual Beam Laser Light Combo
Wavelength and Output Power635nm 1.0mW-5.0mW and 520nm 1.0mW-5.0mW
Laser ModeCW
Output ApertureDia. 3.0mm
Beam Size6x12mm@10m and 10x22mm@20m
Divergence0.6mrad
OpticsOptical Glass Lens
Operating Current850nm<30mA and 520nm <160mA
Operating Voltage3V DC (1pc CR123A)
CDRH ClassClass IIIa
Circuit controlAuto Power Control (APC)

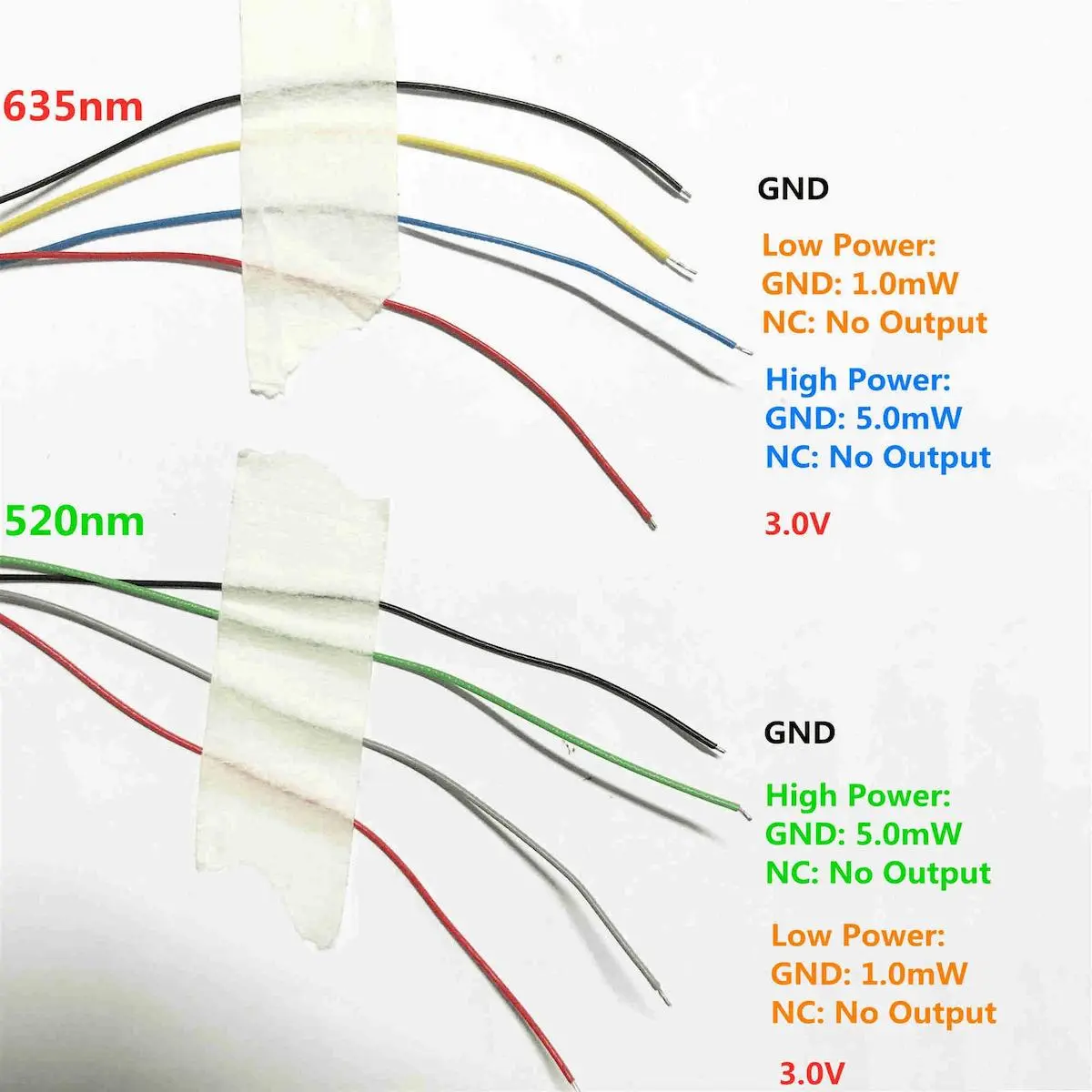

Power ModulationHigh/Low Power Switch
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsCustomized
Housing MaterialBrass and Insulated Anodized Aluminum
Life Span10,000Hrs


IR Green LaserLaser Aiming Device Laser Light


※ Dual Beam Laser Module Combo Applications

  1. Gun laser sights

  2. Gun Laser Grips

  3. Laser aiming devices

  4. Miniature Laser Tools etc.


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
