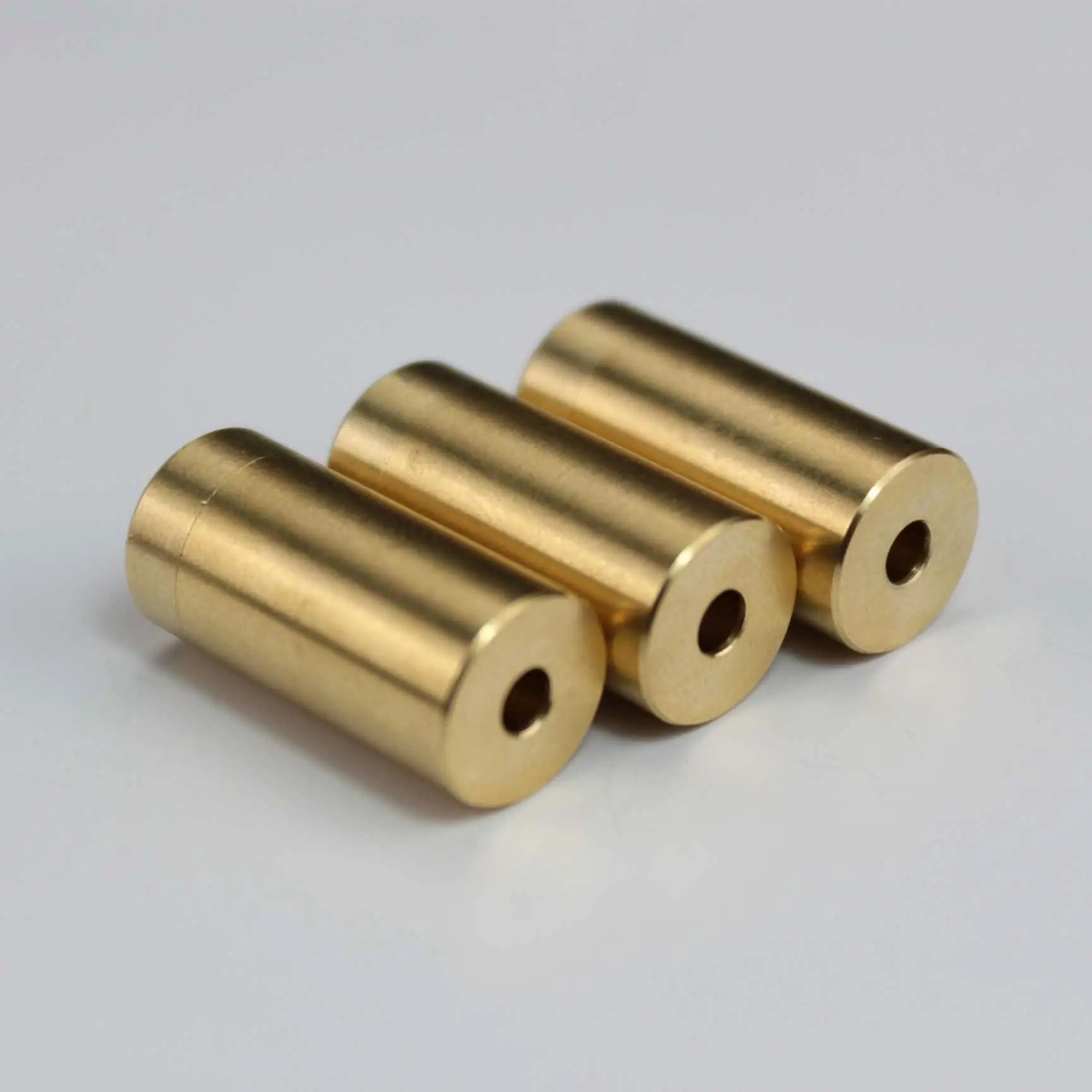

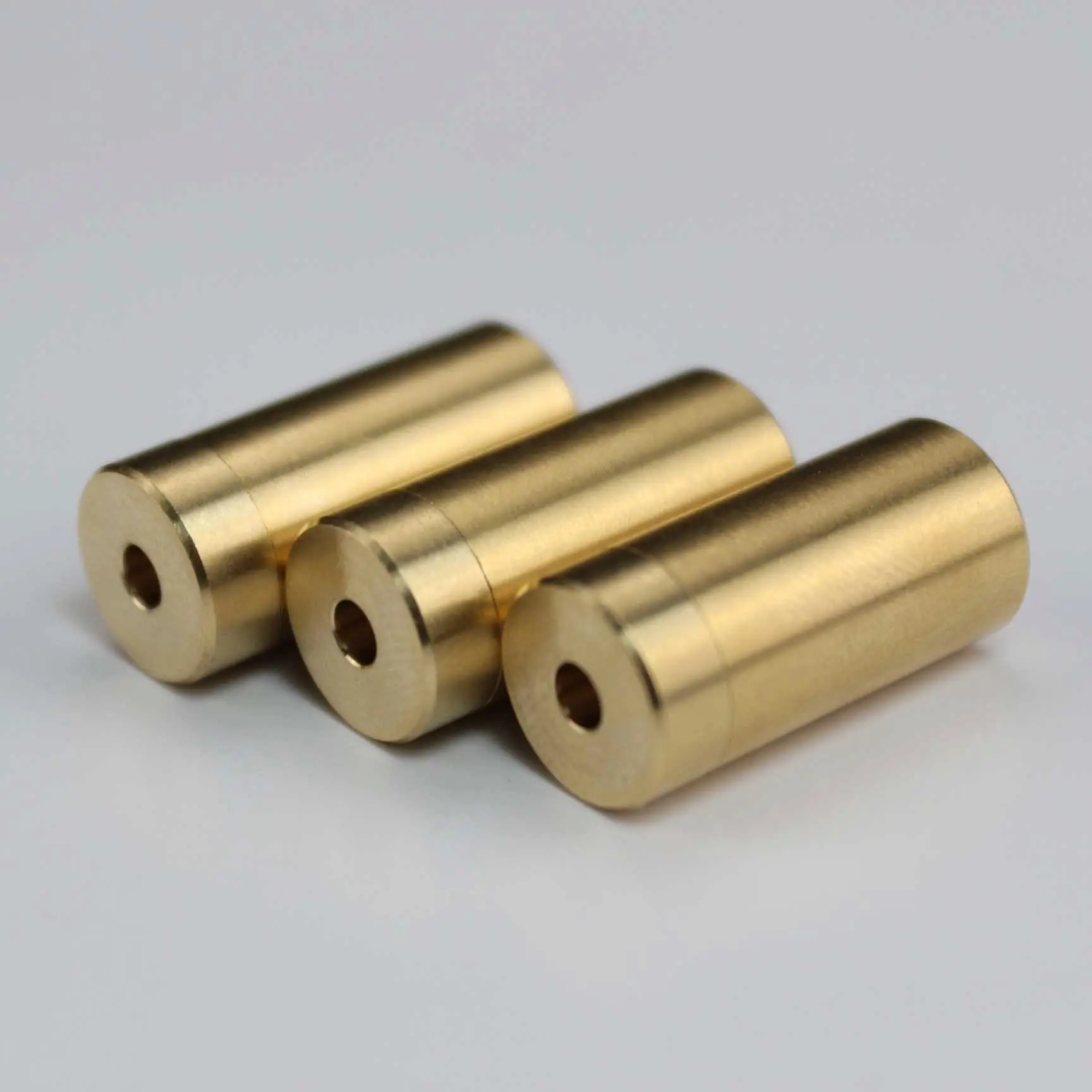

Industrial Blue Laser Diode Modules Visible Laser Source 450nm 5mW

Industrial Blue Laser Diode Modules Visible Laser Source 450nm 5mW Industrial Blue Laser Diode Modules Visible Laser Source 450nm 5mW

  • Laser Wavlength:
    450nm
  • Laser Color:
    Visible Blue Dot Laser Beam
  • Output Power:
    5mW
  • Housing Material:
    Full Brass
  • Dimensions:
    12x40mm (Driver Inside)
  • AM450D10G3

  • AIMLASER

  • 90132000.99

  • Blue, Visible

  • 450nm

  • CW, Dot

Product Description

Product Description of Industrial Blue Laser Diode Modules Visible Laser Source 450nm 5mW

Laser Wavelength Chart

AimLaser provides customized Blue Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The blue laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.


※ 450nm 5mW Blue Dot Laser Diode Module Descriptions

The AM450D10G3 is a blue laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 450nm.


450nm 5mW Blue Dot Laser Diode Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM450D10G3 Blue Dot Laser Diode Module
Wavelength450nm
Output Power≤5.0mW
Laser ModeCW
Beam Size4x8mm@10m and 10x22mm@20m
Divergence0.3mrad
OpticsOptical Glass Lens
Operating Current<100mA
Operating Voltage3V DC
CDRH ClassClass IIIa
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ12x40mm (APC Inside)
Housing MaterialFull Brass
Life Span8,000Hrs


Industrial Laser DiodeVisible Laser Diode


※ 450nm Blue Laser Module Applications

  1. Scientific Research

  2. Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Consumer Products

  11. Nightwear Sporting Products

  12. Automotive interior Ambient Light

  13. OEM Instrumentation


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
