Model: AM405U100G1
Brand: AIMLASER
Code: 90132000.99
Color: Blue Visible
Wavelength: 405nm
Type: Pulse CW Line TTL
AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.
The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.

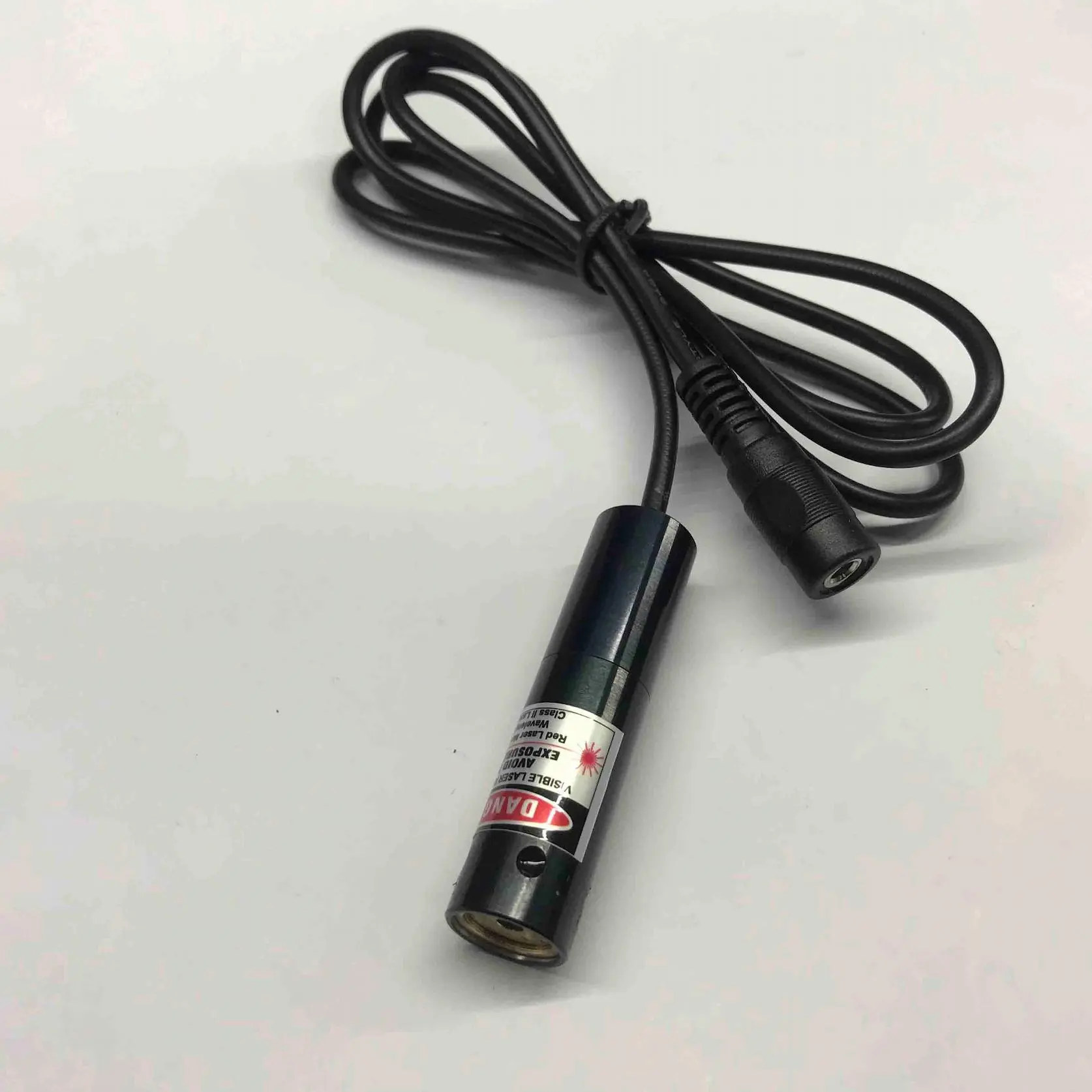

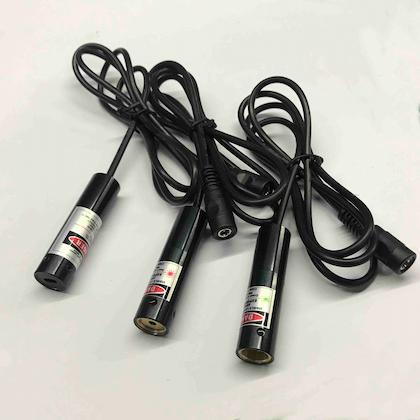

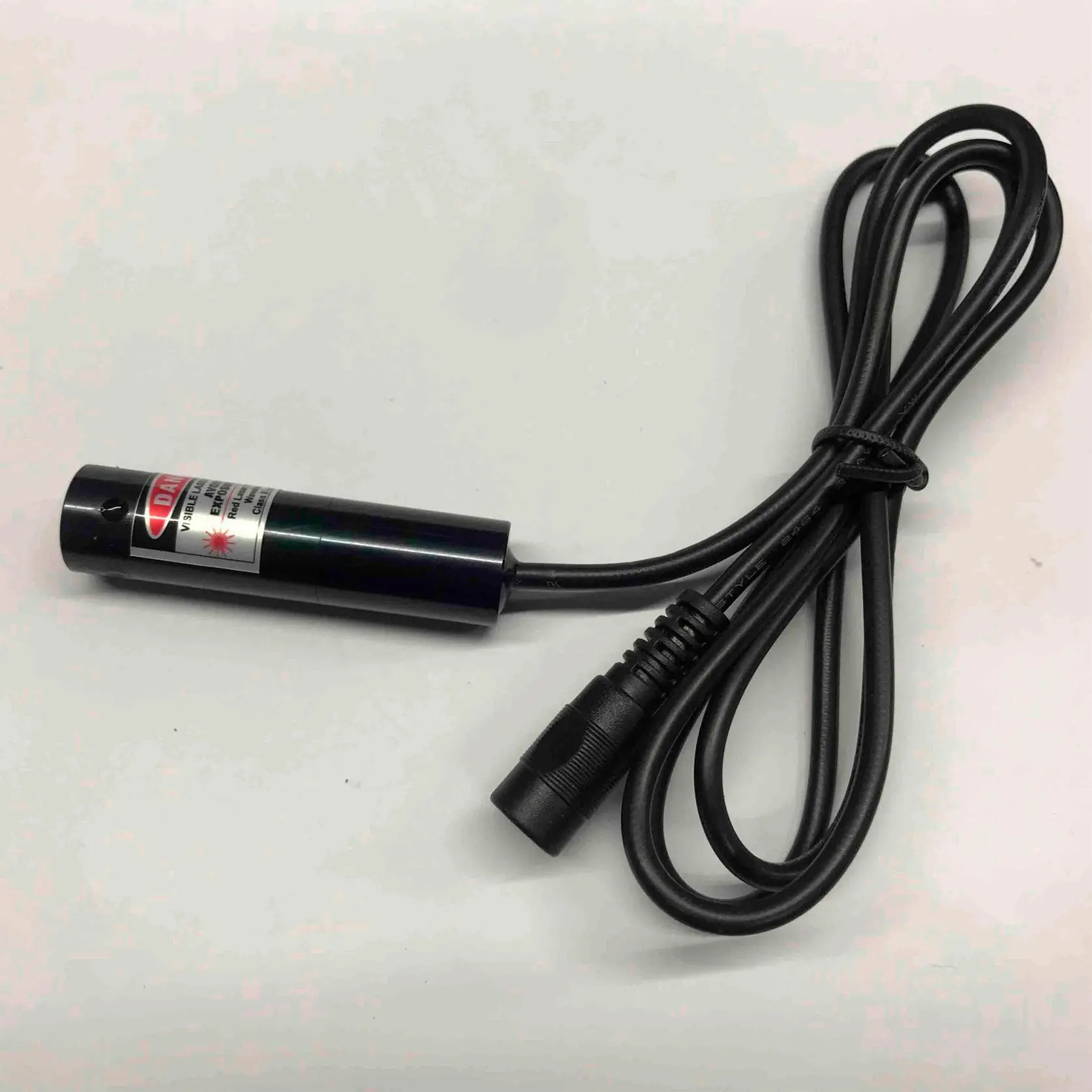

The AM405U100G1 is a purple line laser module subassembly with collimated beam. The maximum laser output power is 100.0mW at 405nm. Energy is uniformly distributed.
| ITEM | SPECIFICATIONS |
| Model Number | AM405U100G1 Powell Lens Uniform Line Laser Module |
| Wavelength | 405nm |
| Output Power | ≤100.0mW |
| Output Aperture | Φ4.0mm |

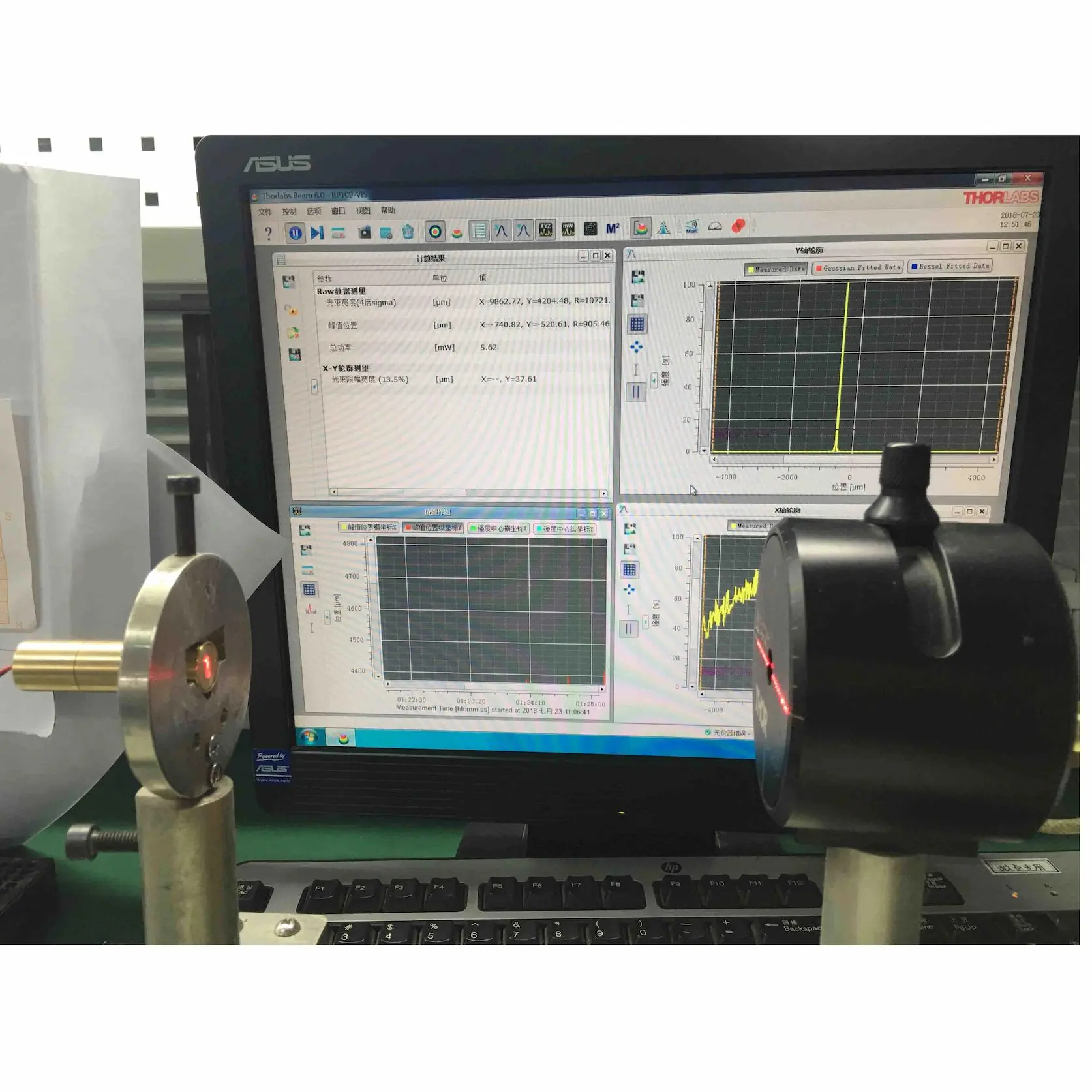

| Line Width | ≤50um@150mm |
| Fan Angle | 60° |
| Divergence | 0.6mrad |
| Optics | Optical Glass Lens |
| Operating Current | <260mA |
| Operating Voltage | 3-5.0V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constanct Current (ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | Φ14x55mm (PCB Inside) |
| Case Material | Brass or Aluminum Black Anodized (Insulation) |
| Life Span | 10,000Hrs |
 |  |
