Invisible Laser Diode Modules Industiral 780nm 10mW IR Laser Pointer

Laser Wavelength:

780nm
Laser Color:

Invisible IR Laser Dot
Output Power:

10mW
Beam Size:

≤50um@70mm
Housing Material:

12x40mm Full Brass

 Inquire Add to Basket

Model: AM780D20G1
Brand: AIMLASER
Code: 90132000.99
Color: IR, Invisible
Wavelength: 780nm
Type: CW, Dot

Product Description

Product Description of Invisible Laser Diode Modules Industrial 780nm 10mW IR Laser Pointer

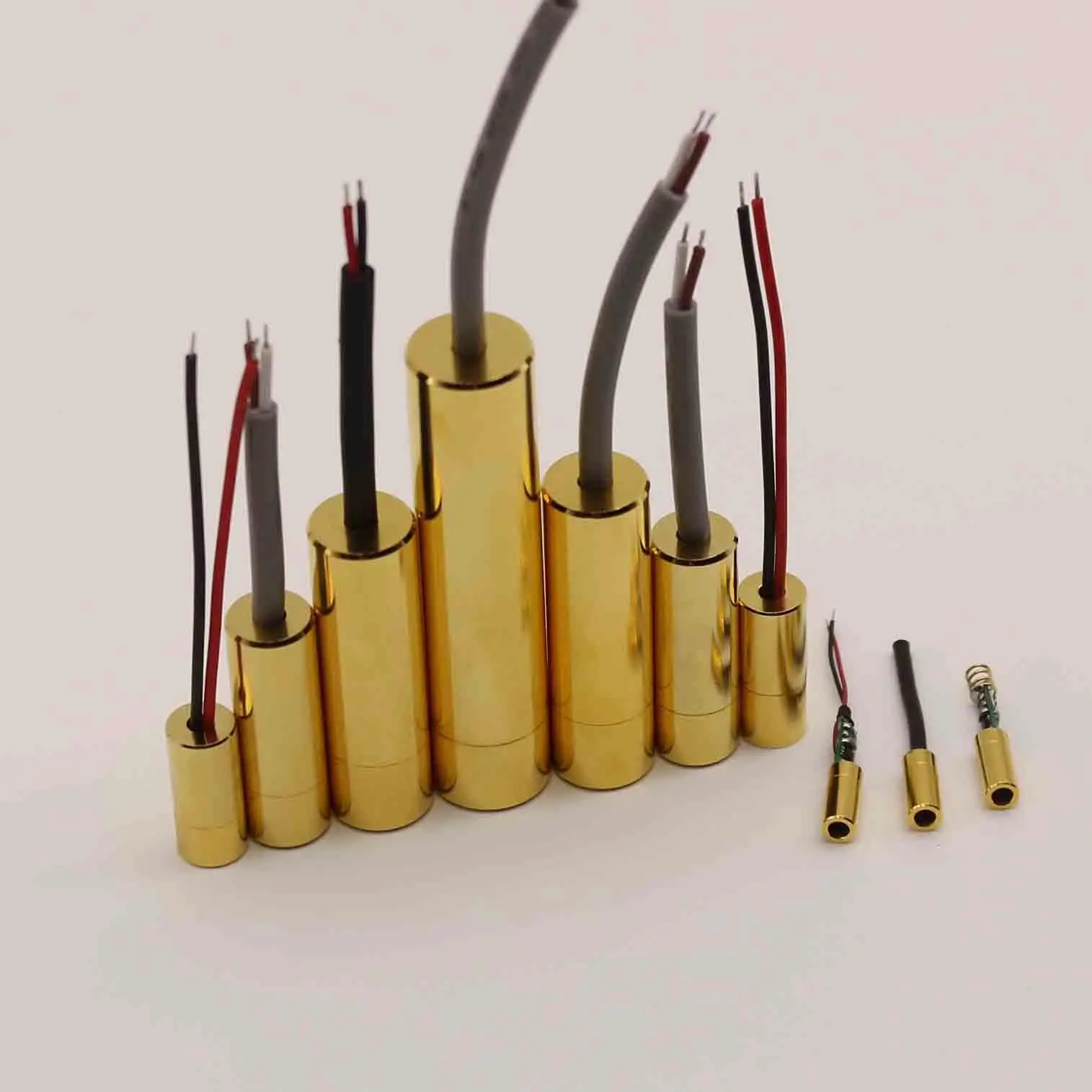

AimLaser provides customized Infrared Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The infrared laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 780nm 10mW IR Dot Laser Diode Module Descriptions

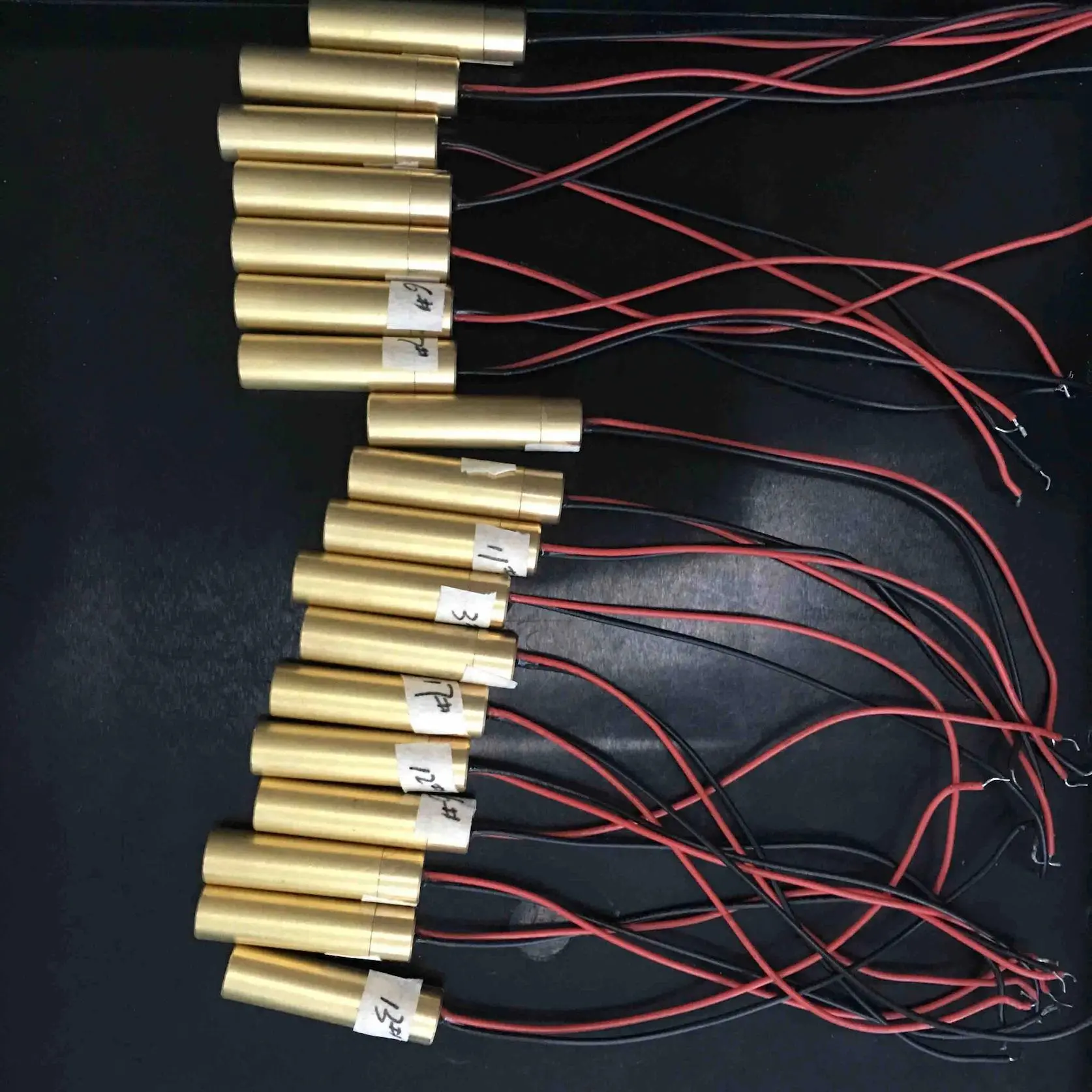

The AM780D20G1 is an infrared laser module subassembly with collimated beam. The maximum laser output power is 10.0mW at 780nm.

※ 780nm 10mW IR Dot Laser Diode Module Optical and Electrical Characteristics

ITEM	SPECIFICATIONS
Model Number	AM780D20G1 IR Dot Laser Diode Module
Wavelength	780nm
Output Power	≤10.0mW
Laser Mode	CW
Beam Size	≤50um@70mm
Divergence	0.6mrad
Optics	Optical Glass Lens
Operating Current	<70mA
Operating Voltage	3-5V DC
CDRH Class	Class IIIb
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-20℃ to 60℃
Dimensions	Φ12x40mm (PCB Inside)
Life Span	10,000Hrs
