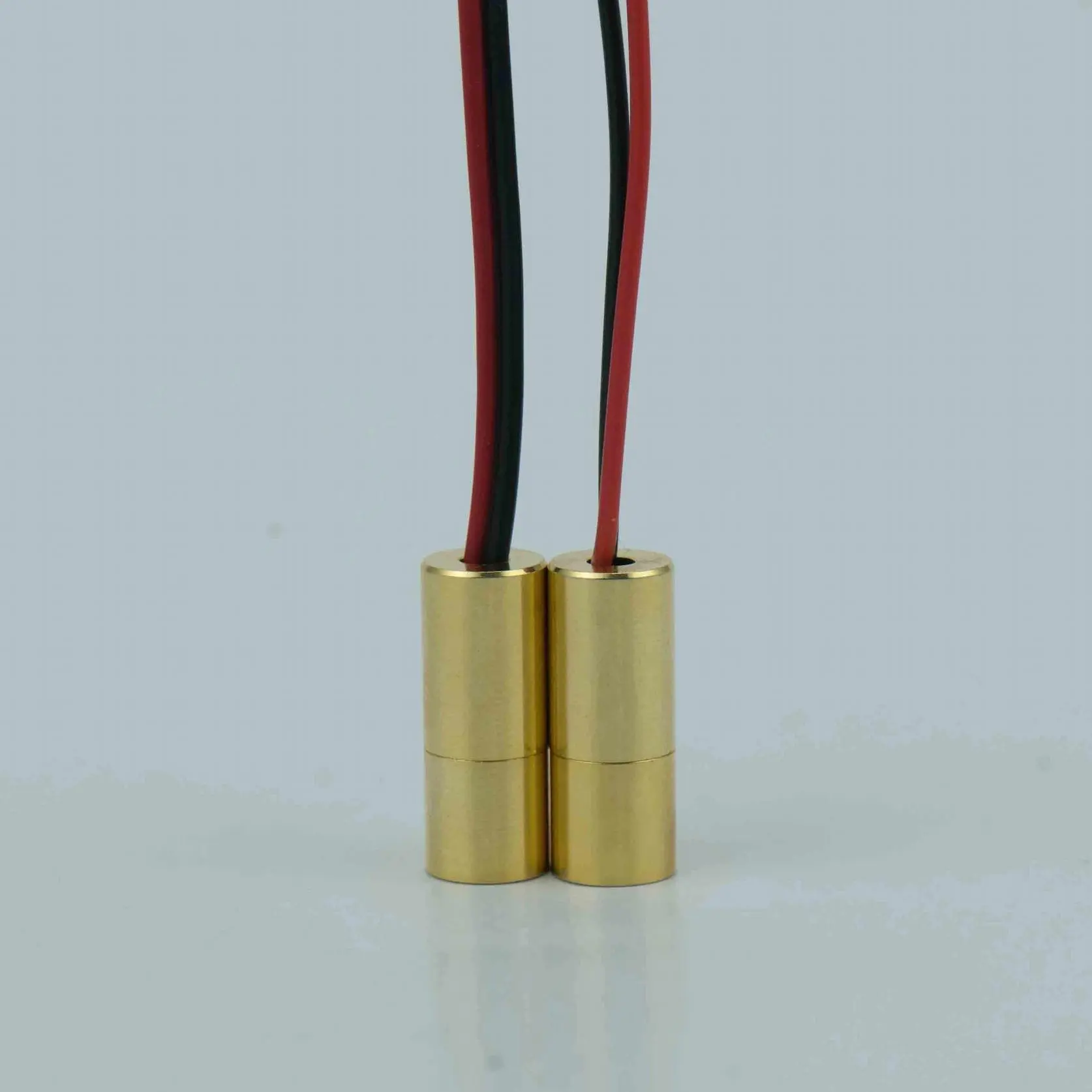

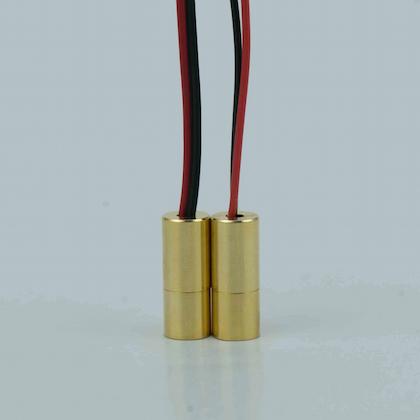

Invisible Laser Light 940nm 5mW Infrared Laser Diode Module for Night Vision Lasers

Invisible Laser Light 940nm 5mW Infrared Laser Diode Module for Night Vision Lasers Invisible Laser Light 940nm 5mW Infrared Laser Diode Module for Night Vision Lasers

  • Laser Wavelength:
    940nm
  • Laser Color:
    Invisible IR Dot Laser Module
  • Output Power:
    5mW
  • Beam Size:
    9x18mm@20m
  • Housing Material:
    10x30mm Full Brass
  • Model: AM940D05G1

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: IR, Invisible

  • Wavelength: 905nm

  • Type: Dot

Product Description

Product Description of Invisible Laser Light 940nm 5mW Infrared Laser Diode Module for Night Vision Lasers

Laser Wavelength Chart

AimLaser provides customized Infrared Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The infrared laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.


※ 940nm 5mW IR Dot Laser Diode Module Descriptions

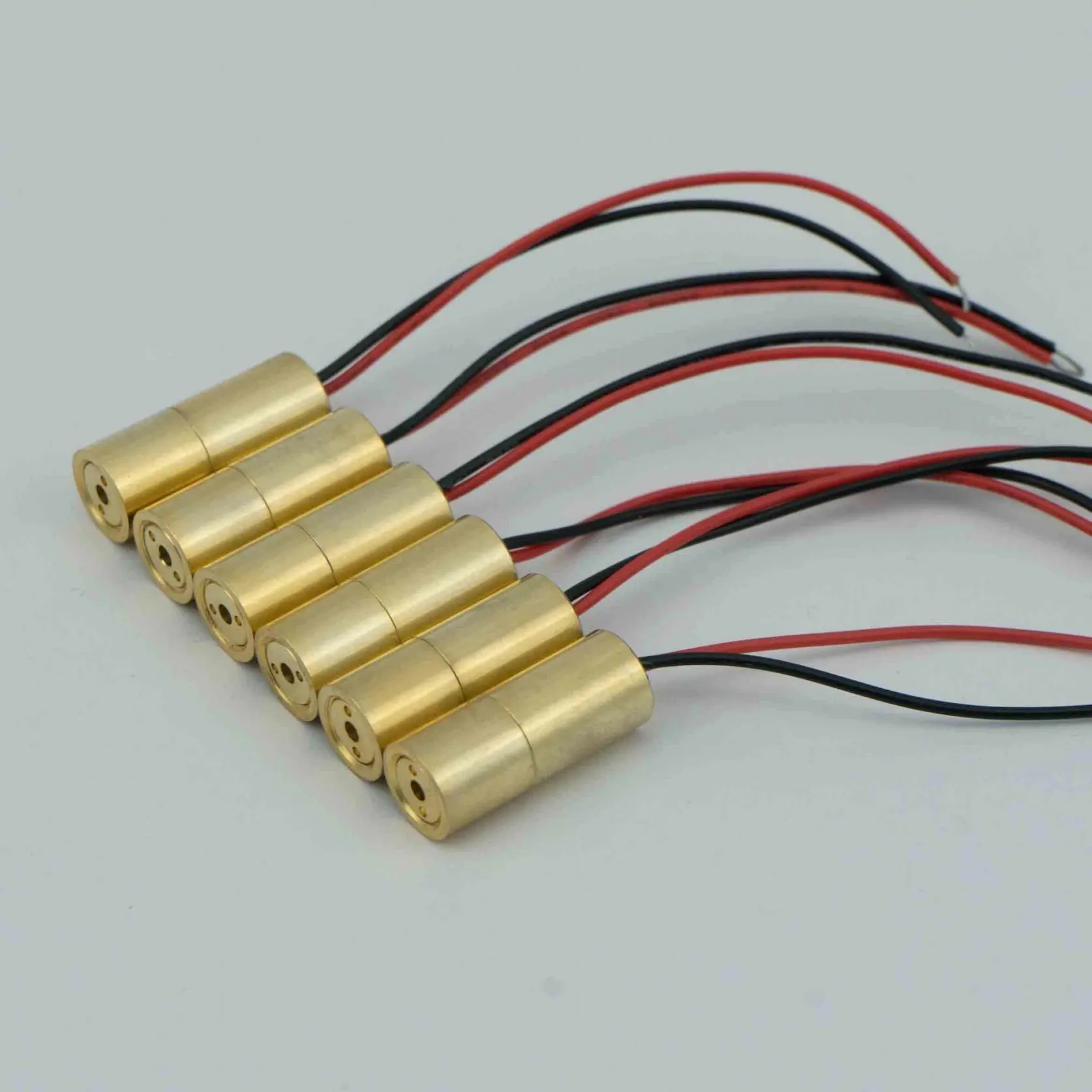

The AM940D05G1 is an infrared laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 940nm.


※ 940nm 5mW IR Dot Laser Diode Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM940D05G1 IR Dot Laser Diode Module
Wavelength940nm
Output Power≤5.0mW
Laser ModeCW
Beam Size≤9x18mm@20m
Divergence0.6mrad
OpticsOptical Glass Lens
Operating Current<60mA
Operating Voltage3V DC
CDRH ClassClass IIIa
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-20℃ to 60℃
DimensionsΦ10x30mm (PCB Inside)
Life Span10,000Hrs


940nm Laser DiodeLaser 940nm


※ 940nm Infrared Laser Module Applications

  1. Gun laser sights

  2. Gun Laser Grips

  3. Night Vision Lasers

  4. Laser aiming devices

  5. Laser alignment instrument

  6. Laser pointing instrument

  7. Laser positioning devices

  8. Laser surveying instrument

  9. Laser detection equipment

  10. Medical Laser Instrument

  11. Miniature Laser Tools etc.


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
