Model: AM532D20G1
Brand: AIMLASER
Code: 90132000.99
Color: Green, Visible
Wavelength: 520nm
Type: CW, Dot
AimLaser provides customized Diode Pumpled Solid State DPSS Laser Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.
The green laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

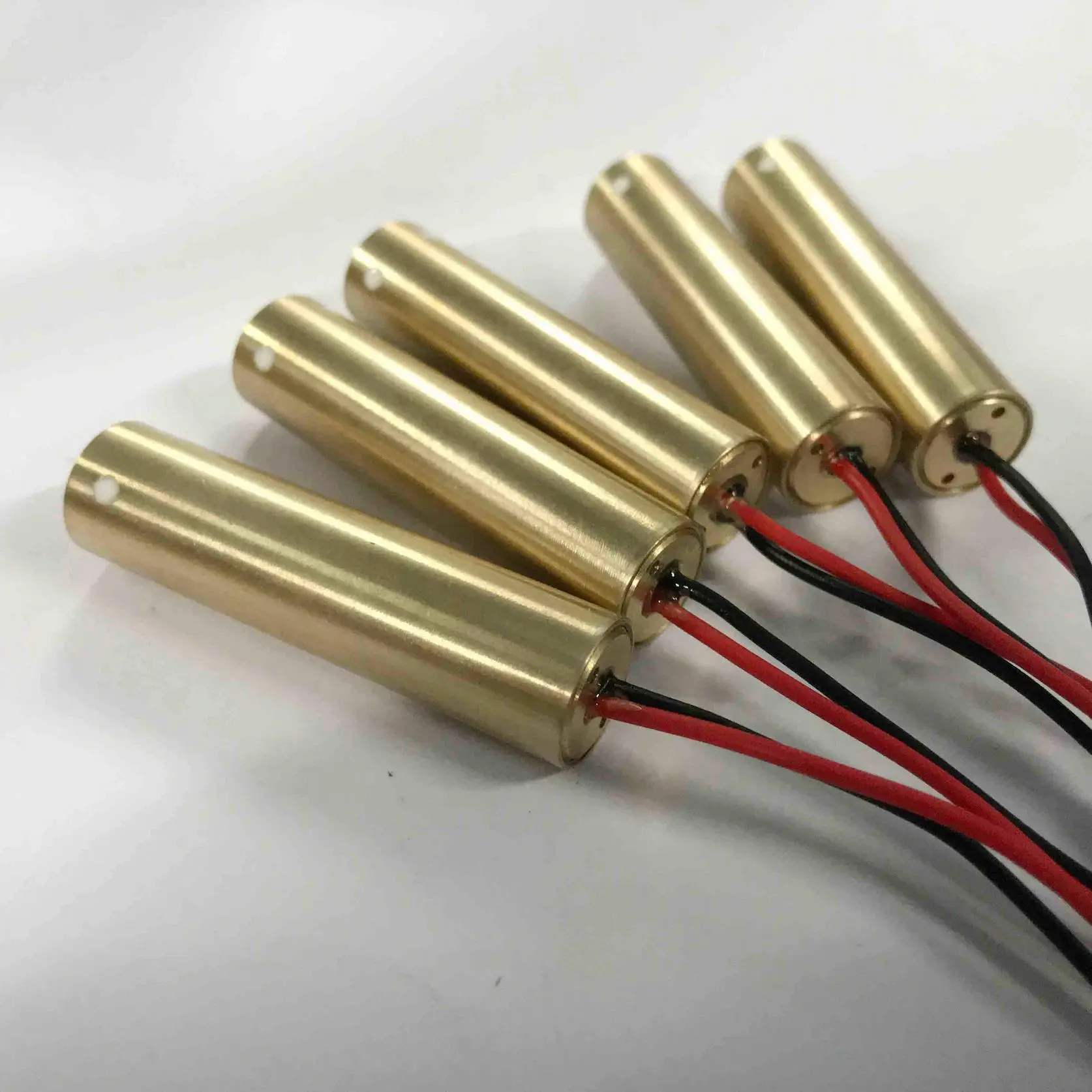

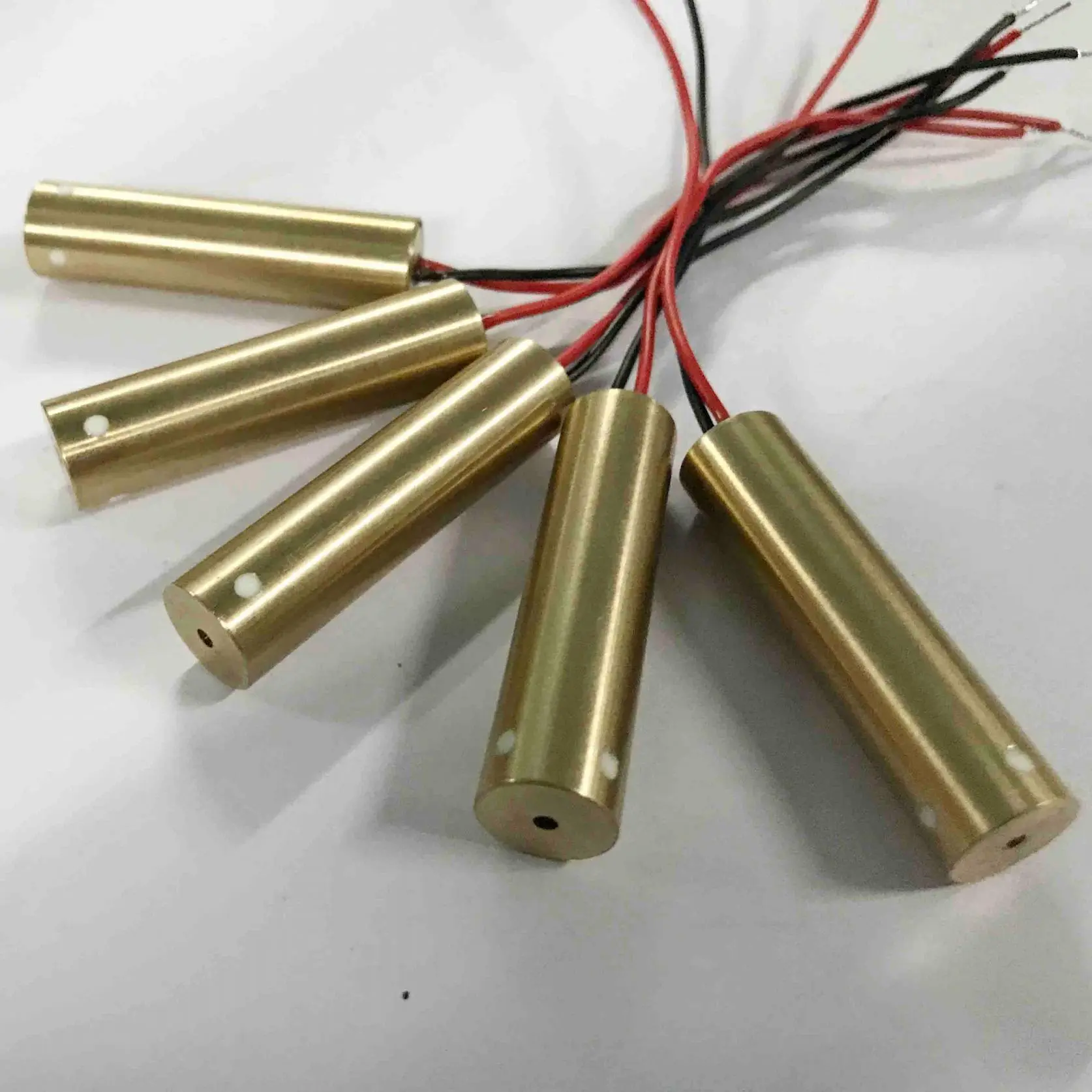

The AM532D20G1 is a green laser module subassembly with collimated beam. The maximum laser output power is 20.0mW at 532nm.
| ITEM | SPECIFICATIONS |
| Model Number | AM532D20G1 Green DPSS Laser Module |
| Wavelength | 532nm |
| Output Power | ≤20.0mW |
| Laser Mode | CW |
| Beam Size | ≤8mm@10m |
| Divergence | 0.5mrad |
| Optics | Optical Glass Lens |
| Operating Current | <300mA |
| Operating Voltage | 3VDC |
| CDRH Class | Class IIIa |
| Circuit control | Auto Power Control (APC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | 0℃ to 45℃ |
| Storage Temperature | -20℃ to 70℃ |
| Dimensions | Φ12x50mm (Driver Inside) |
| Housing Material | Full Brass |
| Life Span | 5,000Hrs |
 |  |
Scientific Research
Laboratory Instrument
Gun Laser Grips
Gun laser sights
Laser aiming devices
Laser alignment instrument
Laser pointing instrument
Laser positioning devices
Laser surveying instrument
Laser detection equipment
Medical Laser Instrument
Consumer Products
Nightwear Sporting Products
Automotive interior Ambient Light
OEM Instrumentation
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser module manufacturer
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
