Low Power Red Laser Diode Modules 650nm 5mW Class IIIa Laser Module for Small Laser Tools

Laser Wavelength:

650nm
Laser Color:

Red Dot Laser Beam Modue
Output Power:

5mW
Beam Size:

4x8mm@10m
Housing Material:

6x12mm Full Brass

 Inquire Add to Basket

Model: AM650D10G2
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 650nm
Type: CW, Dot

Product Description

Product Description of Low Power Red Laser Diode Modules 650nm 5mW Class IIIa Laser Module for Small Laser Tools

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 5mW Red Dot* Laser Module Descriptions*

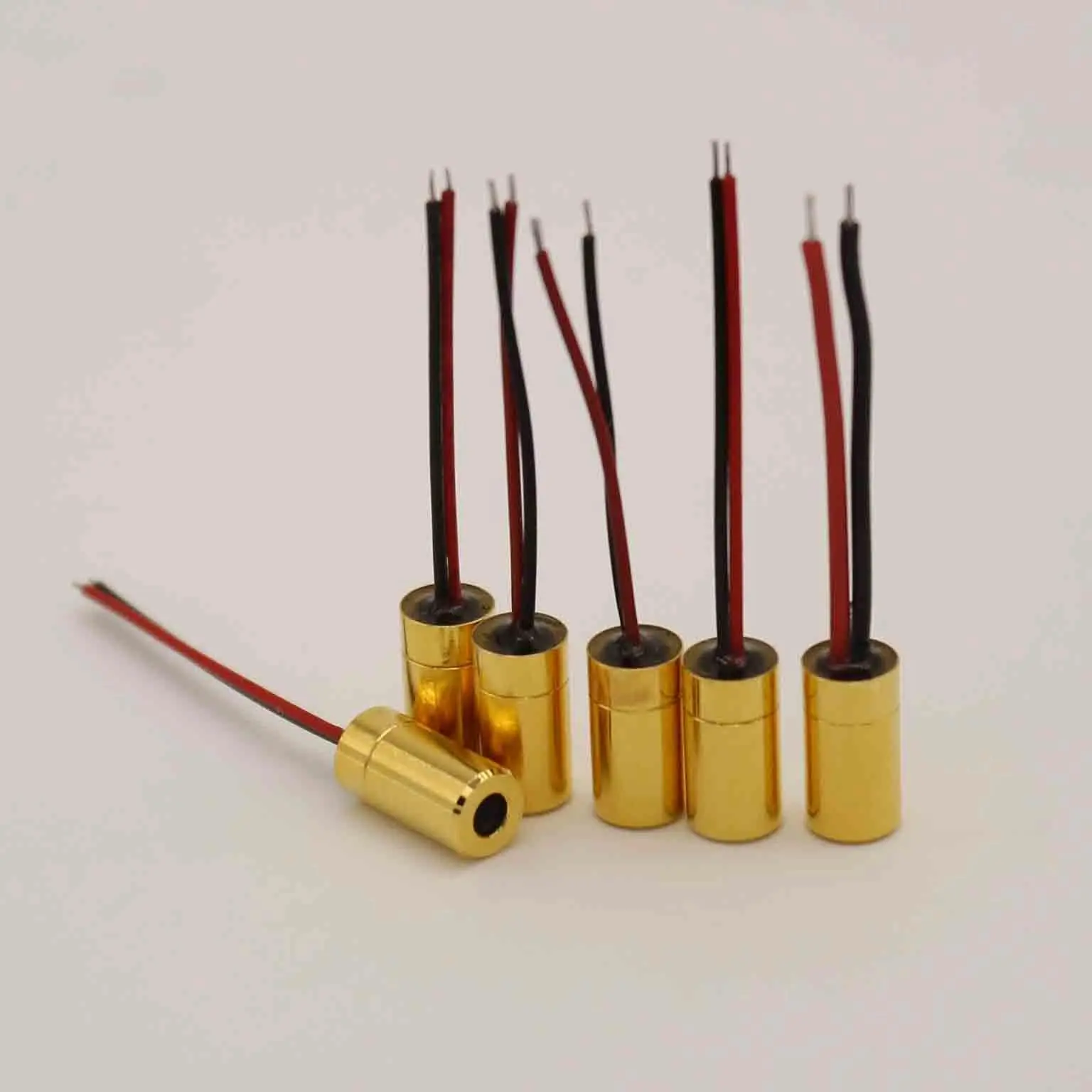

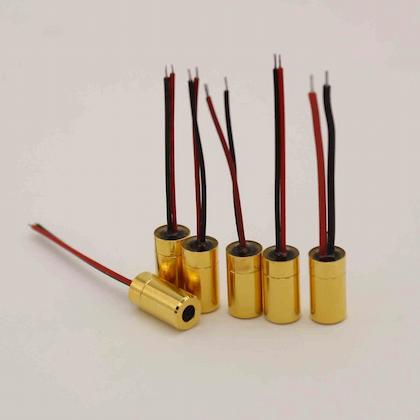

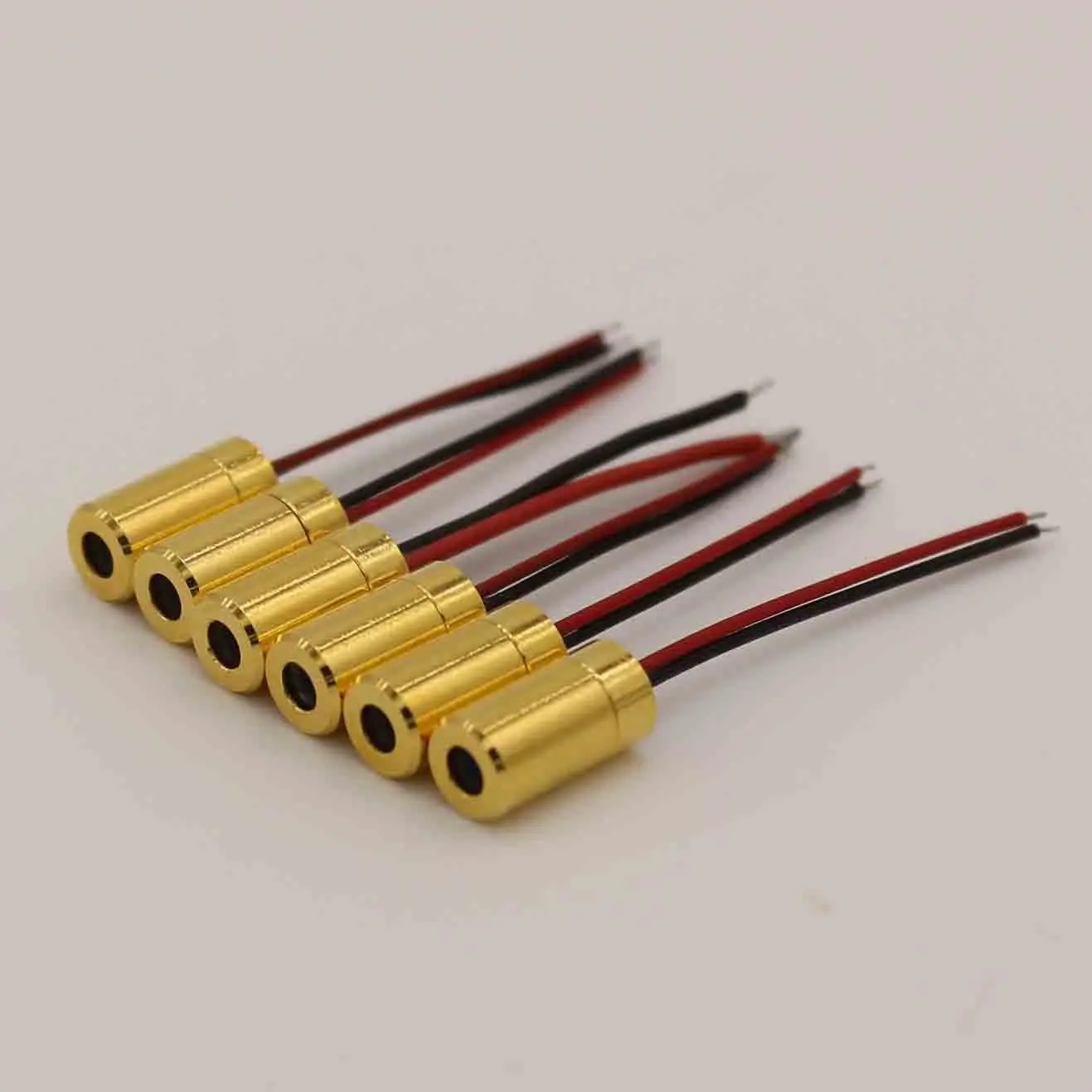

The AM650D10G2 is a red laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 650nm.

※ 650nm 5mW Red Dot Laser Module* Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM650D10G2 Red Dot Laser Module
Wavelength	650nm
Output Power	≤5.0mW
Laser Mode	CW
Beam Size	≤4x8mm@10m
Divergence	0.4mrad
Optics	Optical Glass Lens
Operating Current	<35mA
Operating Voltage	3V-5V DC
CDRH Class	Class IIIa
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ6x12mm (APC Inside)
Housing Material	Full Brass
Life Span	10,000Hrs
