Low Power Single Mode Fiber Coupled Laser Diode Modules 520nm 60mW

Product Description of Low Power Single Mode Fiber Coupled Laser Diode Modules 520nm 60mW

AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.

Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.

※ 520nm 60mW 105um Pigtailed Coaxial  Fiber Coupled Laser Module Descriptions

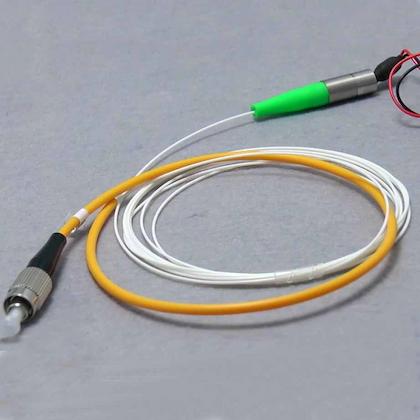

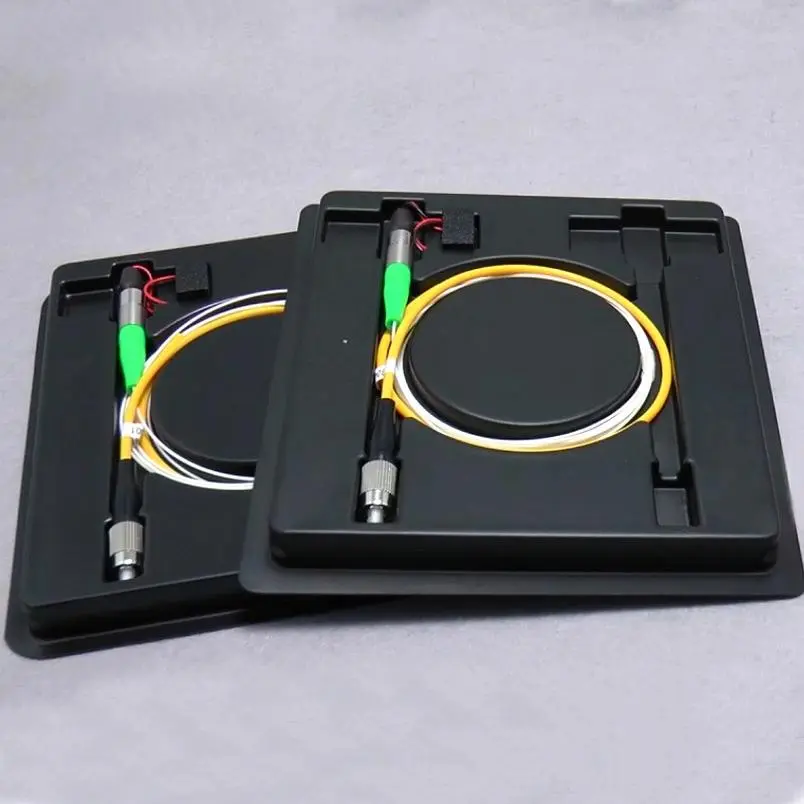

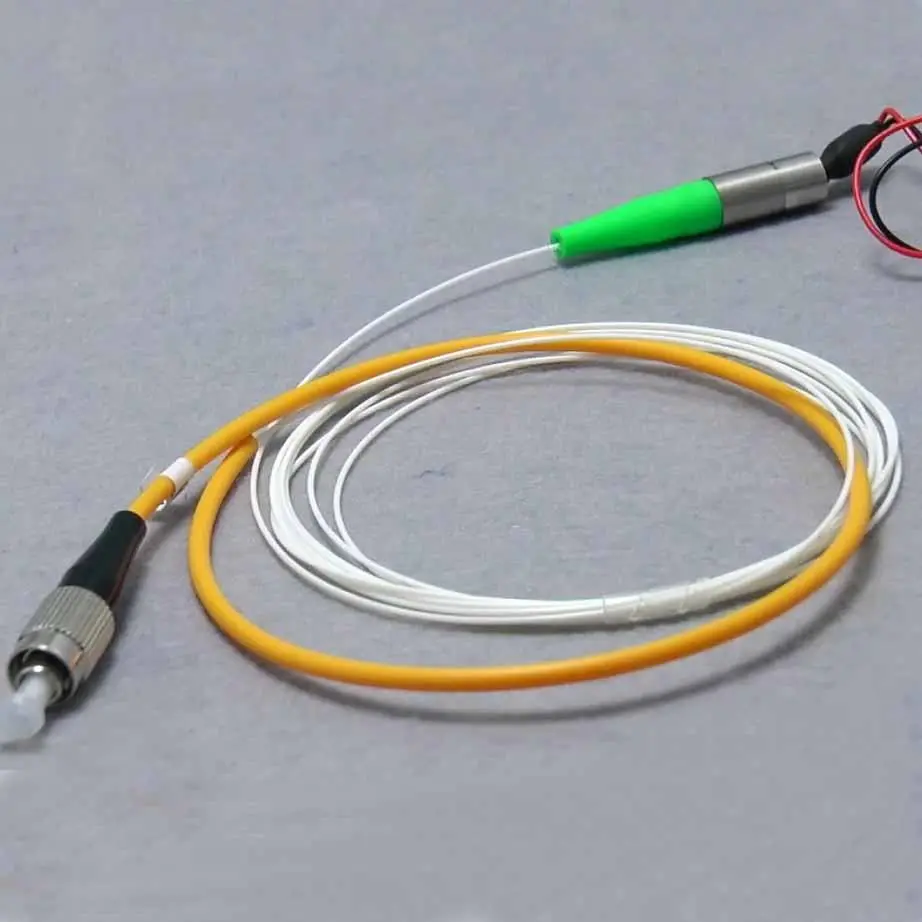

The AM520MF60FC is a green pigtailed fiber coupled laser diode Module subassembly with FC/PC receptable optical output. The maximum laser output power is 60.0mW at 520nm.

※ 520nm 60mW 105um Pigtailed Coaxial  Fiber Coupled Laser Module Optical and Electrical Characteristics

※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

1. Optical Alignment Systems

2. Medical Laser Instrument

3. CTP Laser Printing


4. OEM Instrumentation

5. Laboratory Instrument

6. Laser Test and Inspection Equipment

※ Why buy Laser Modules from AimLaser?

1. Provide One year warranty

2. Offer customized solutions

3. Normal sample lead time: within 2 weeks

4. Conform to ROHS, FDA, IEC, SGS standards

5. ISO9001:2008 certified laser module manufacturer

6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips




※  Fiber Coupled Laser Modules Production Process

※ Laser Modules Production Equipment

※ Laser Modules Testing Equipment

※ Laser Module Payment and Shipment

1. MOQ: 1pc

2. Delivery time: 3-20 days

3. Shipment Terms: FOB Xi'an China

4. Payment Terms: T/T, Western Union, PayPal

5. Shipment Method: DHL, UPS, FedEx or TNT
