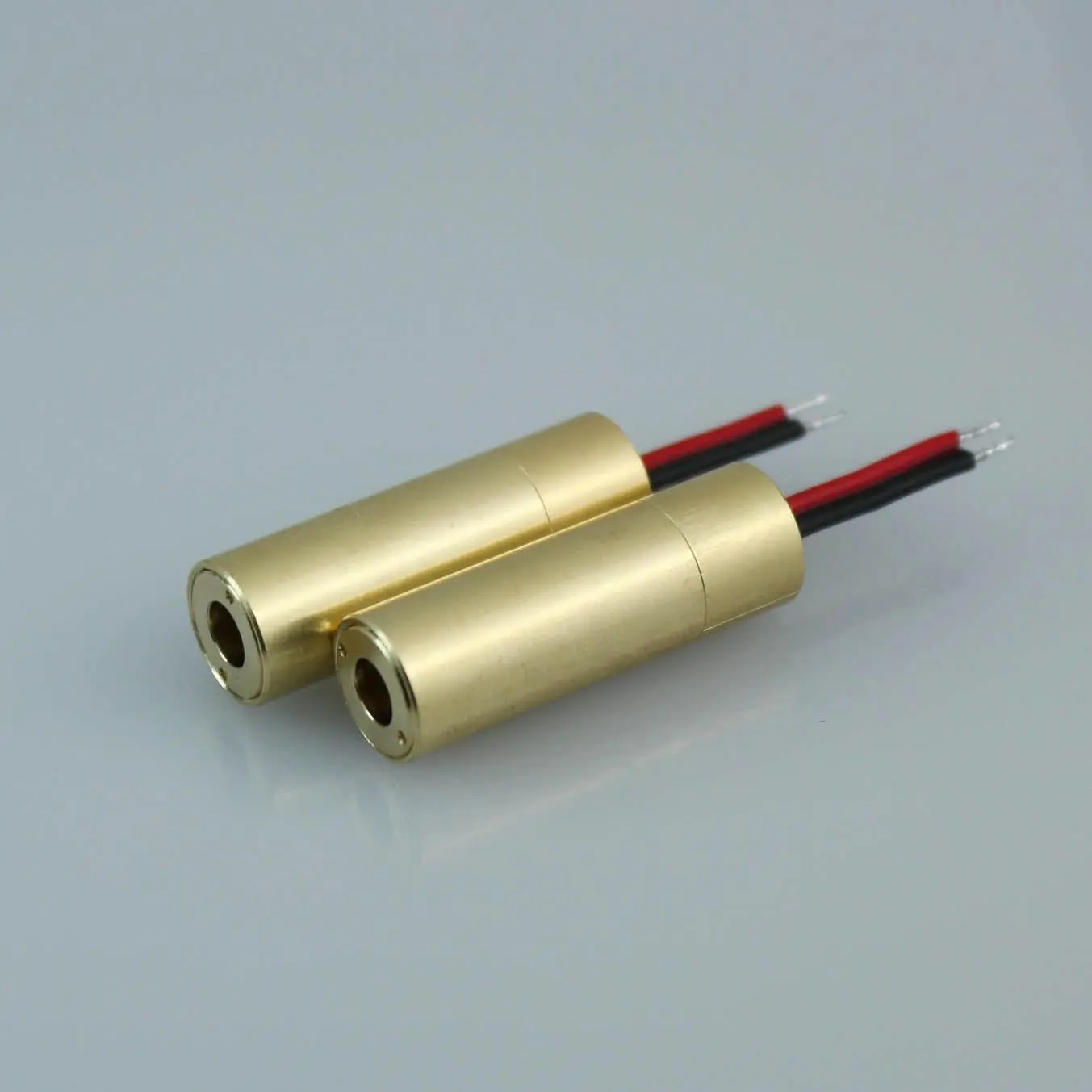

Lower Power Red Laser Diode Modules Continuous Wave Lasers 650nm 5mW

Laser Wavelength:

650nm
Laser Color:

Visible Red Dot Laser Module
Output Power:

5mW
Beam Size:

≤1.0mm@1m
Housing Material:

12x40mm Full Brass

 Inquire Add to Basket

Model: AM650D10G3
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 650nm
Type: CW, Dot

Product Description

Product Description of Lower Power Red Laser Diode Modules Continuous Wave Lasers 650nm 5mW

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 5mW Red Dot Laser Diode Module Descriptions

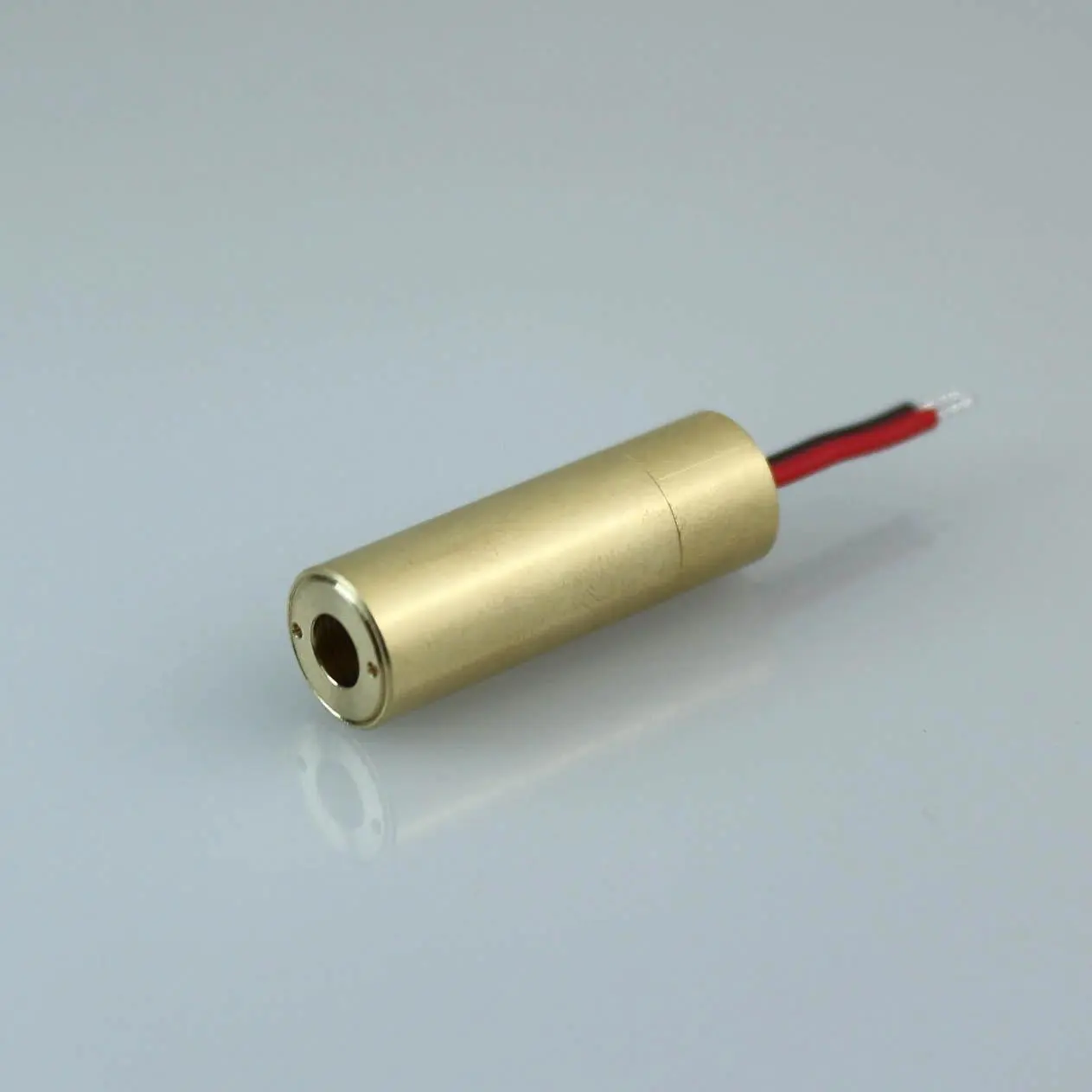

The AM650D10G3 is a red laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 650nm.

※ 650nm 5mW Red Dot Laser Diode Module Optical and Electrical Characteristics

ITEM	SPECIFICATIONS
Model Number	AM650D10G3 Red Dot Laser Diode Module
Wavelength	650nm
Output Power	≤5.0mW
Laser Mode	CW
Beam Size	≤1.0mm@1m
Divergence	0.4mrad
Optics	Optical Glass Lens
Operating Current	<50mA
Operating Voltage	3V-5V DC
CDRH Class	Class IIIa
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ12x40mm (APC Inside)
Housing Material	Full Brass
Life Span	10,000Hrs
