Medical Diode Laser Modules TTL Modulation 650nm 0.4mW Class I Laser Modules

Laser Wavelength:

650nm
Laser Color:

Visible Dot Red Laser Module
Output Power:

0.4mW
Beam Size:

≤2.0mm@1.2m
Housing Material:

10x35mm Full Brass with Insulation

 Inquire Add to Basket

Model: AM650D05G1
Brand: AIMLASER
Code: 90132000.99
Color: Red, Visible
Wavelength: 650nm
Type: Pulse, CW, Dot, TTL

Product Description

Product Description of Medical Diode Laser Modules TTL Modulation 650nm 0.4mW Class I Laser Modules

AimLaser provides customized Red Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The red laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 650nm 0.4mW Medical Diode Laser Module Descriptions

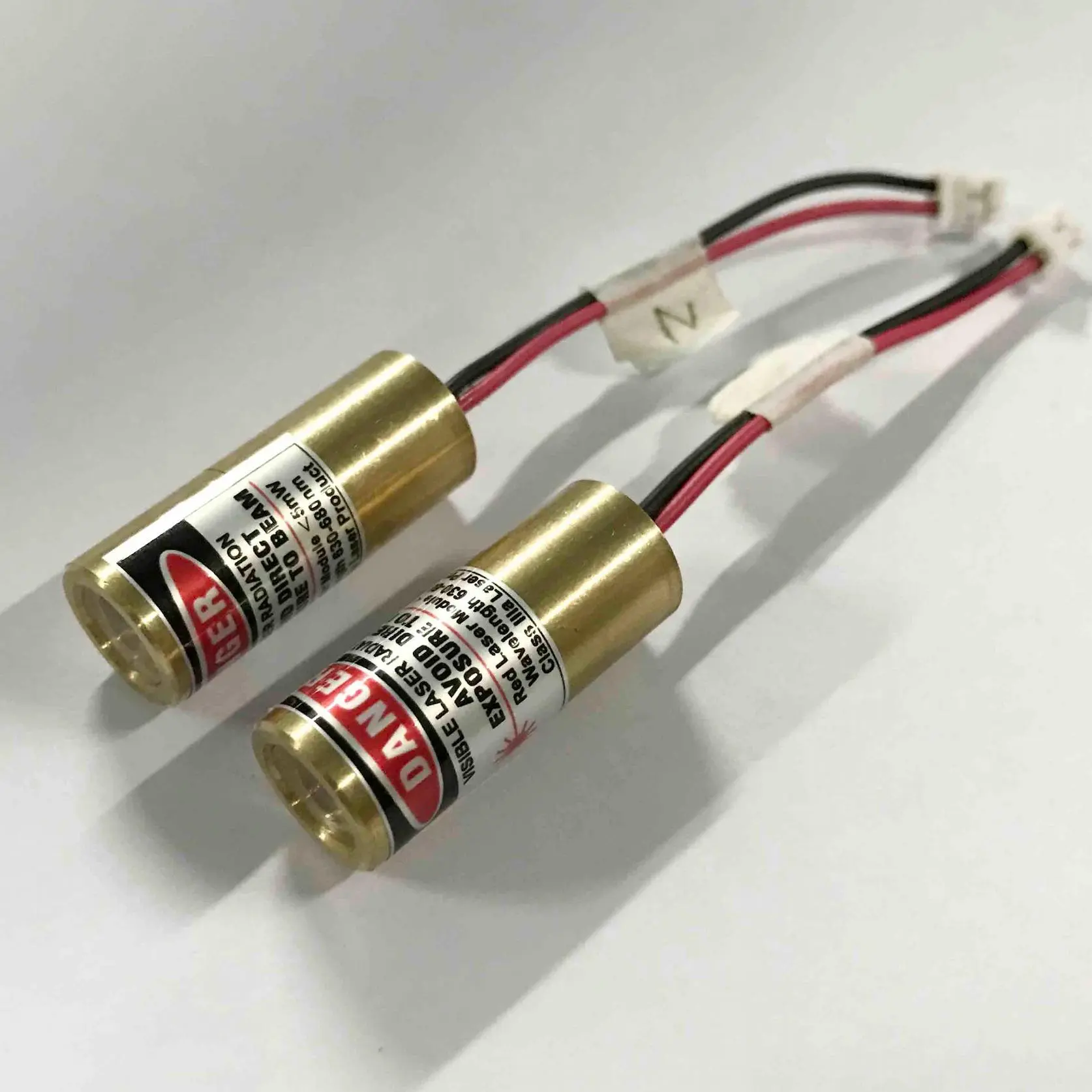

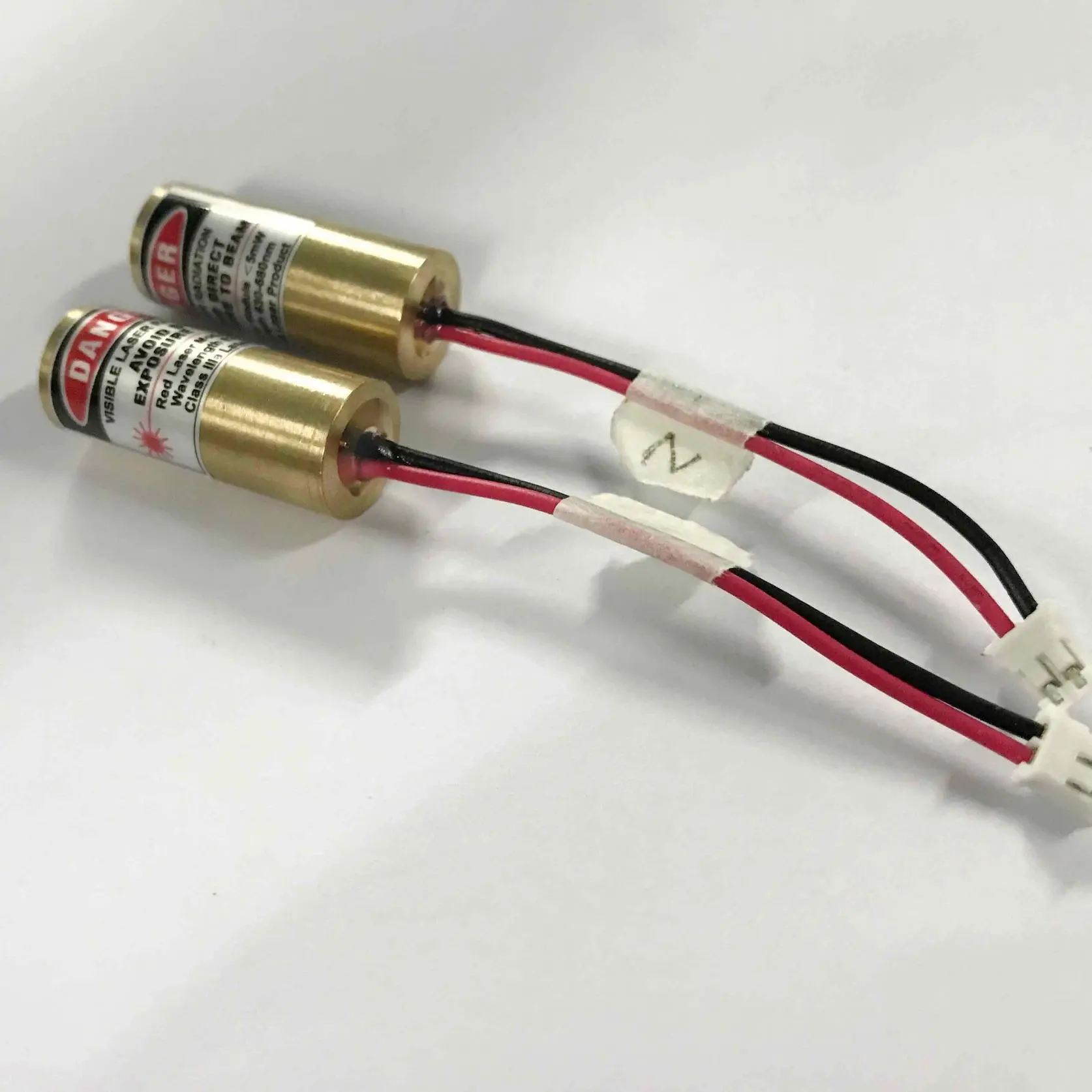

The AM650D05G1 is a red laser module subassembly with collimated beam. The maximum laser output power is 0.4mW at 650nm.

※ 650nm 0.4mW Medical Diode Laser Module* Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM650D05G1 Medical Diode Laser Module
Wavelength	650nm
Output Power	≤0.4mW
Laser Mode	CW
Beam Size	≤2.0mm@1.2m
Divergence	0.8mrad
Optics	Optical Glass Lens
Operating Current	<30mA
Operating Voltage	3V-5V DC
CDRH Class	Class I
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ10x35mm (APC Inside)
Housing Material	Full Brass with Insulation
Life Span	10,000Hrs
