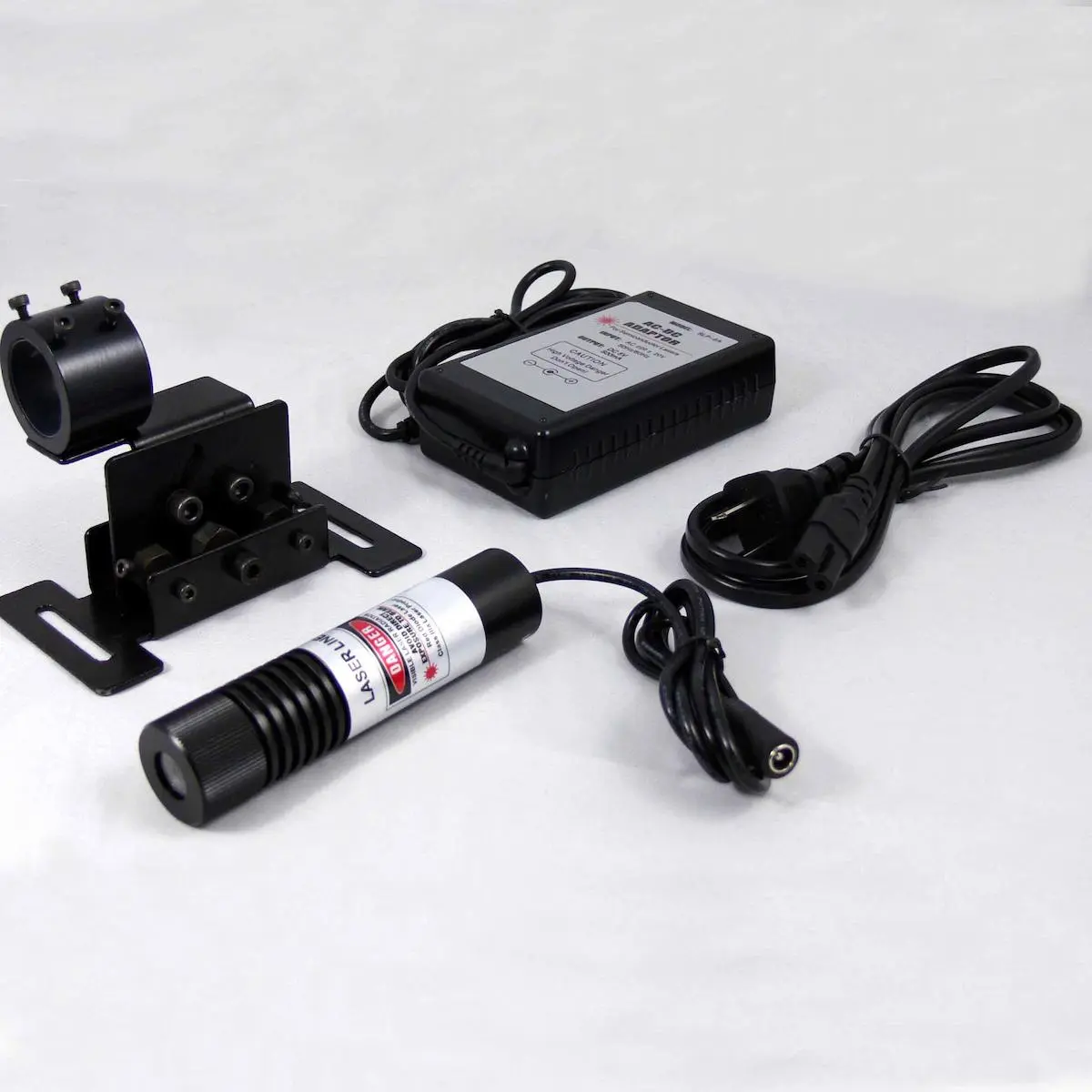

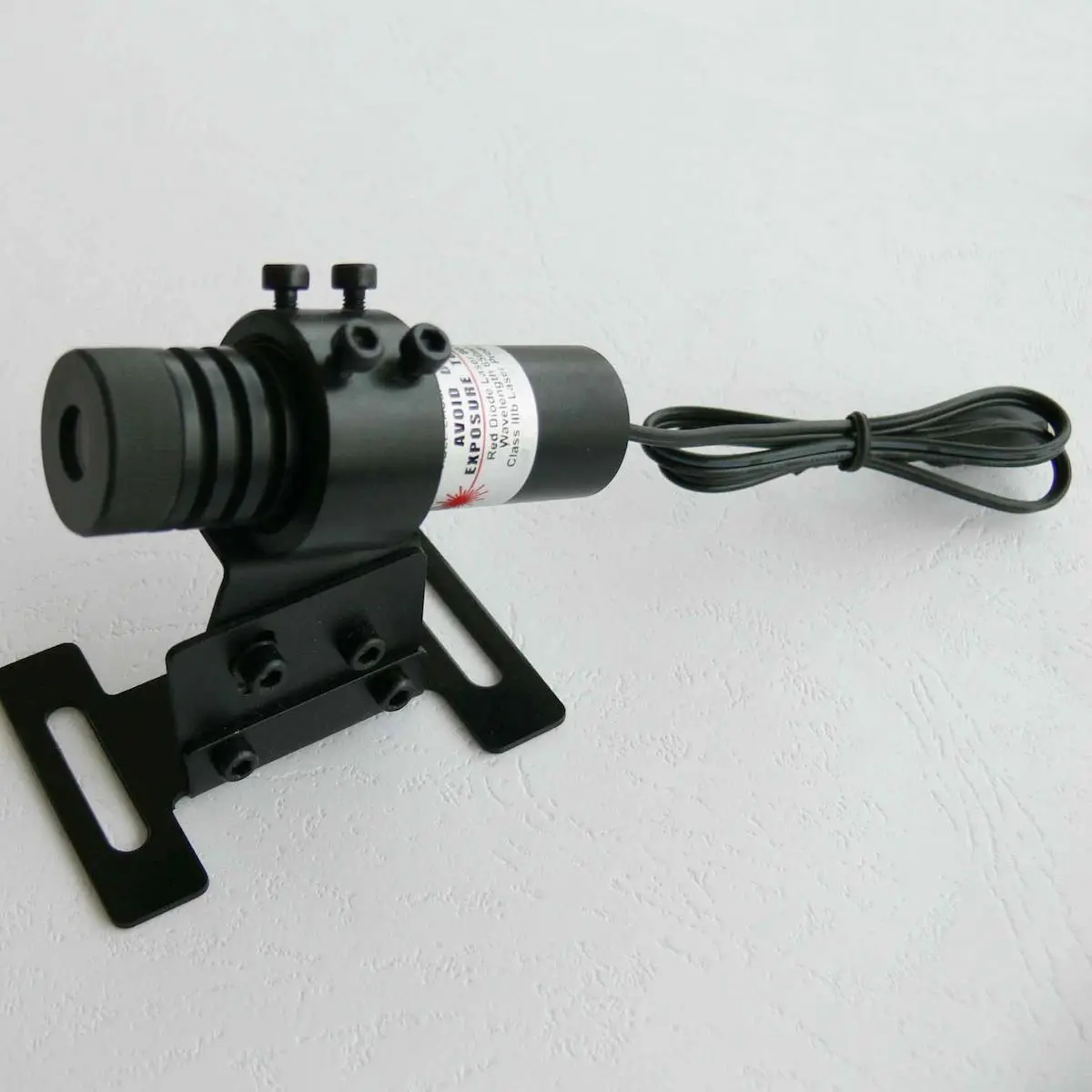

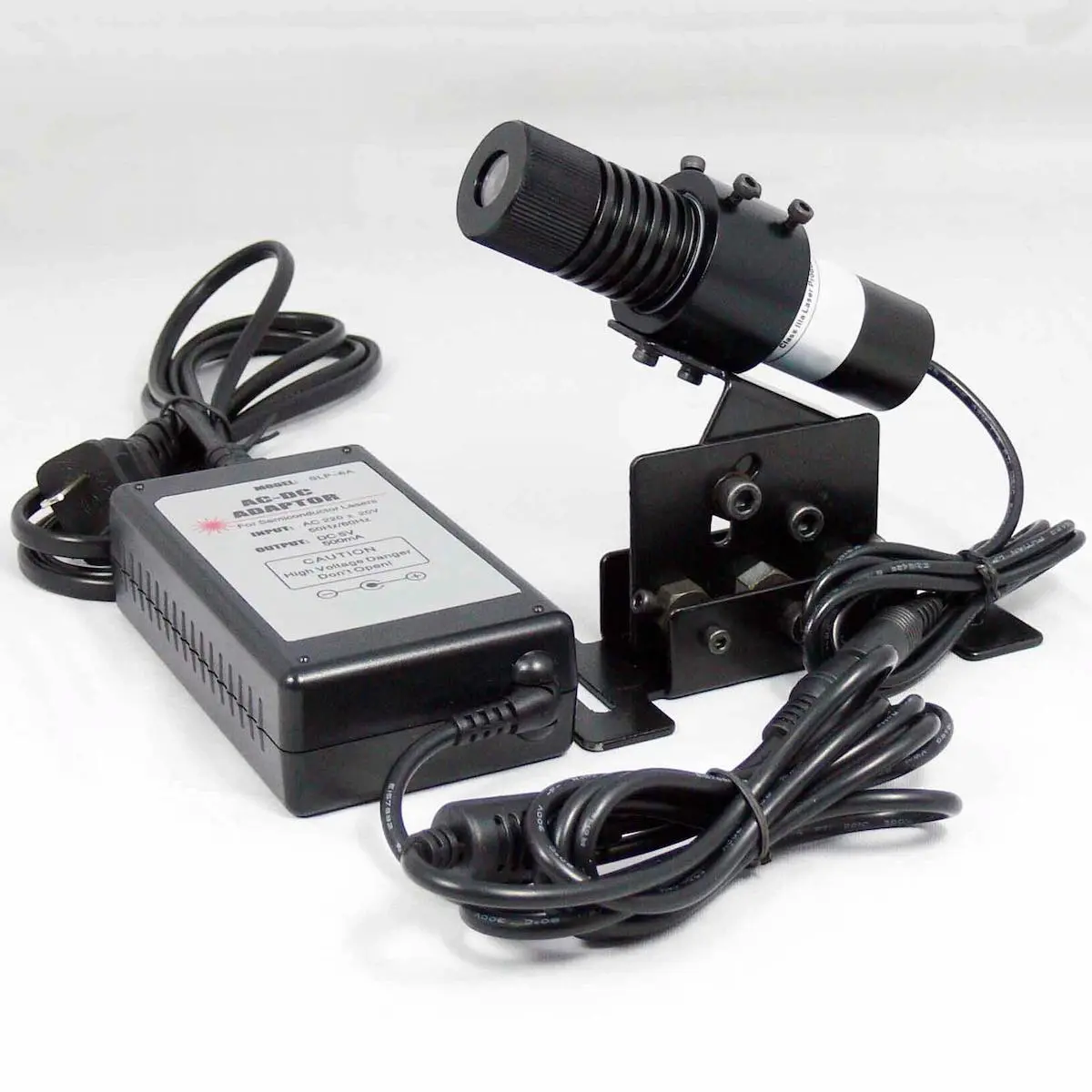

Mountable Red Laser Line Projector 635nm 20mW for Stone Cloth Marble Glass Cutting Laser Line Marking

Mountable Red Laser Line Projector 635nm 20mW for Stone Cloth Marble Glass Cutting Laser Line Marking Mountable Red Laser Line Projector 635nm 20mW for Stone Cloth Marble Glass Cutting Laser Line Marking

  • Product Name:
    Red Laser Line Projector
  • Output Power:
    20mW
  • Line Width:
    <3.0mm@5m
  • Fan Angle:
    110 Degree
  • Applications:
    Stone Cloth Marble Glass Cutting Laser Line Marking
  • Model: ALP635-20A

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Red

  • Wavelength: 635nm

  • Type: Pulse  CW  Line  TTL

Product Description

Product Description of Mountable Red Laser Line Projector 635nm 20mW for Stone Cloth Marble Glass Cutting Laser Line Marking

Laser Wavelength Chart

AimLaser provides customized Red and Green Laser Line Generators with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 12V DC or 110VAC.

We can make fixed focus and adjustable focus laser line projectors to meet different customers' requirements.

Special power supply and mounting bracket are provided.


※ What is a Laser Line Generator?

Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.

It is widely used in wood, stone, and cloth cutting machines or packing machines by projecting a distinct red or green working line or edges for alignment and positioning on materials to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.


※ Why use a Laser Line Generator?

The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.


※ 635nm 20mW Red Laser Line Projector Descriptions

The ALP635-20A is a red laser line generator for stone, wood and textile cutting machine. The maximum laser output power is 20.0 mW at 635nm.


635nm 20mW Red Laser Line Projector Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberALP635-20A Red Laser Line Projector
Wavelength635nm
Output Power≤20.0mW
Output ApertureΦ5.0mm
Line Width≤3.0mm@5m
Fan Angle110°
Divergence0.2mrad
OpticsOptical Glass Lens
Operating Current<100mA
Operating Voltage3-5V or 12V or 24V DC
CDRH ClassClass II
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ16x80mm or Φ20x110mm (PCB Inside)
Case MaterialBlack Anodized Aluminum
Life Span8,000Hrs


Red Line LaserLaser Line Projector


AimLaser Laser Line Generator Features

  • Long lifetime

  • Compact size

  • Easy mounting

  • High brightness

  • Convenient adjustment

  • High reliability and stability

  • Wide temperature operation -10℃ to 50℃


※ Laser Line Generator Applications

  1. Industrial laser alignment and positioning

  2. Stone, Wood and Metal working

  3. Fabric, Rubber and Tyre cutting or processing


※ Why buy Laser Line Generators from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
