PWM TTL Modulation Green Laser Pointer 520nm 5mW Pulsed Laser Module Green Beam

PWM TTL Modulation Green Laser Pointer 520nm 5mW Pulsed Laser Module Green Beam PWM TTL Modulation Green Laser Pointer 520nm 5mW Pulsed Laser Module Green Beam

  • Laser Wavelength:
    520nm
  • Laser Color:
    Pulsed Green Dot Laser Beam
  • Output Power:
    5mW
  • Beam Size:
    3x6mm@5m
  • Dimensions:
    12x40mm (Full Brass)
  • Model: AM520D10G5

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Green, Visible

  • Wavelength: 520nm

  • Type: Pulse, CW, Dot, TTL

Product Description

Product Description of TTL Modulation Green Laser Pointer 520nm 5mW Pulsed Laser Module Green Beam

Laser Wavelength Chart

AimLaser provides customized Green Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The green laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.


※ 520nm 5mW Dot Green Laser Diode Module Descriptions

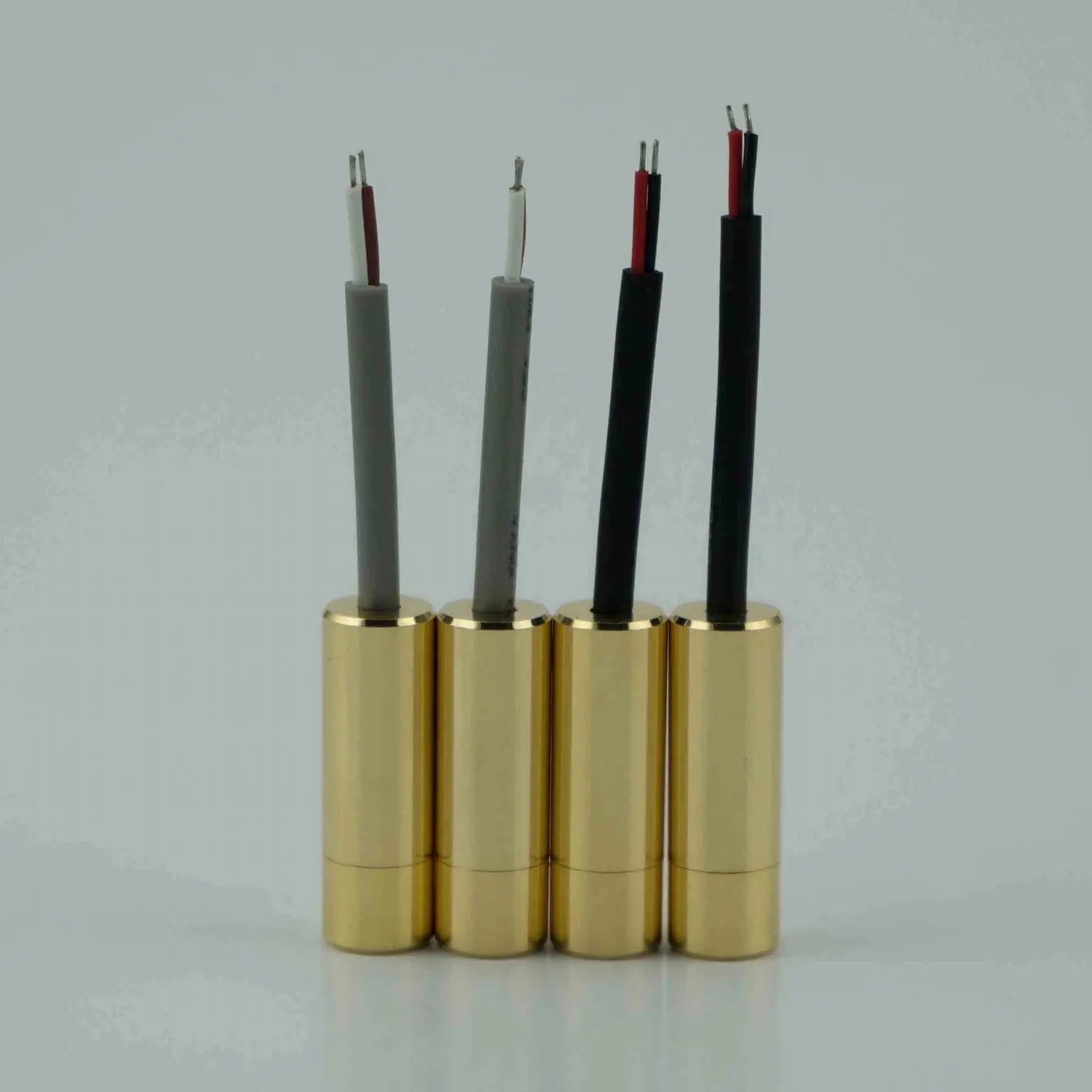

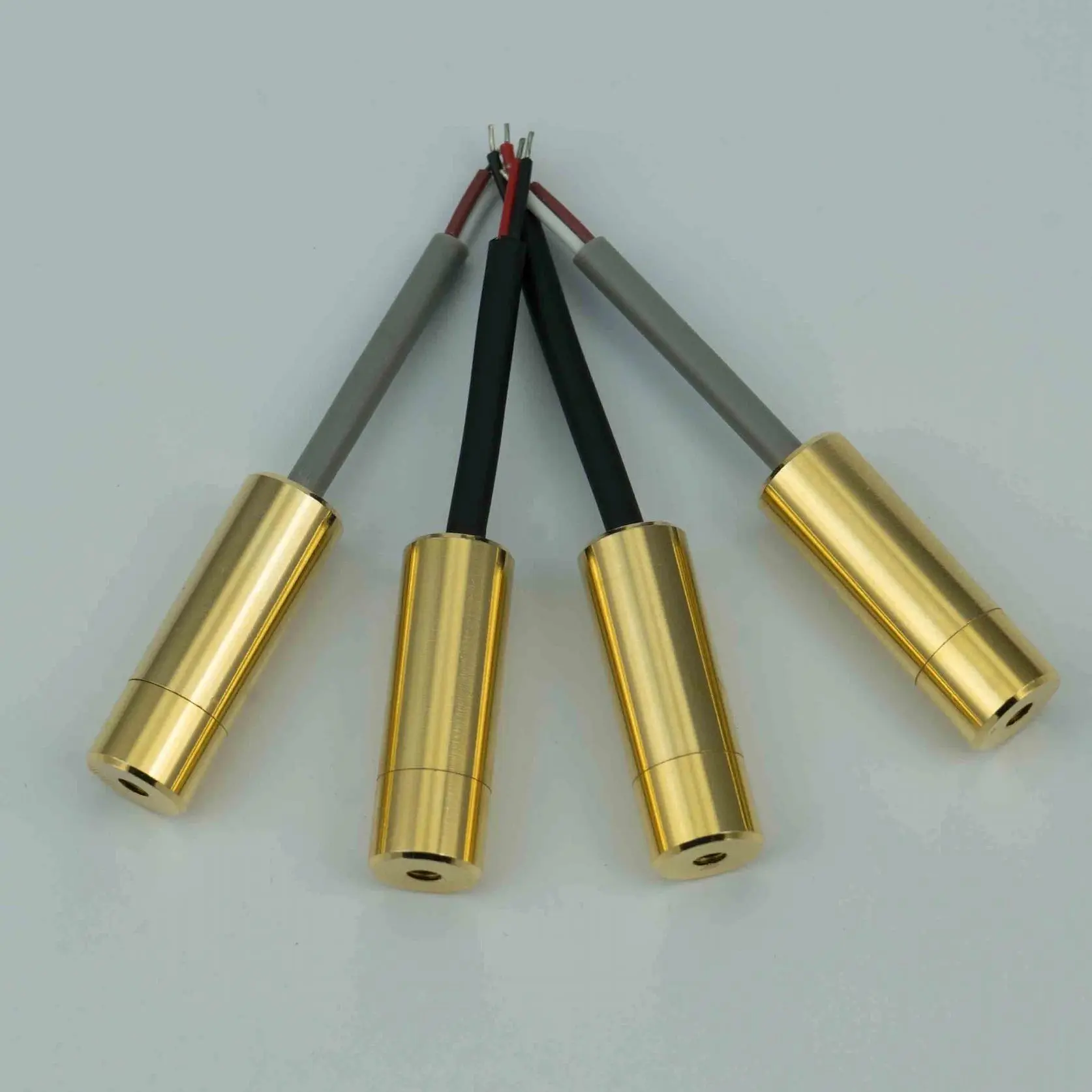

The AM520D10G5 is a TTL modulated green laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 520nm.


520nm 5mW Dot Green Laser Diode Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM520D10G1 Green Dot Laser Diode Module
Wavelength520nm
Output Power≤5.0mW
Laser ModePulse (TTL Modulation)
Beam Size≤3x6mm@5m
Divergence0.5mrad
OpticsOptical Glass Lens
Operating Current<140mA
Operating Voltage3.0V DC
CDRH ClassClass IIIa
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ12x40mm (APC Inside)
Housing MaterialFull Brass
Life Span8,000Hrs


PWM LaserModulation Laser


※ 520nm Green Laser Module Applications

  1. Scientific Research

  2. Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Consumer Products

  11. Nightwear Sporting Products

  12. Automotive interior Ambient Light

  13. OEM Instrumentation


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
