Semiconductor Diode Laser Module PWM TTL Pulsed Green Laser Beam 520nm 15mW

Laser Wavelength:

520nm
Laser Color:

Green Dot Laser Module
Output Power:

10mW
Beam Size:

2x4mm@2m
Housing Material:

12x40mm Full Brass

 Inquire Add to Basket

Model: AM520D15G1
Brand: AIMLASER
Code: 90132000.99
Color: Green, Visible
Wavelength: 520nm
Type: Pulse, CW, Dot, TTL

Product Description

Product Description of Semiconductor Diode Laser Module PWM TTL Pulsed Green Laser Beam 520nm 15mW

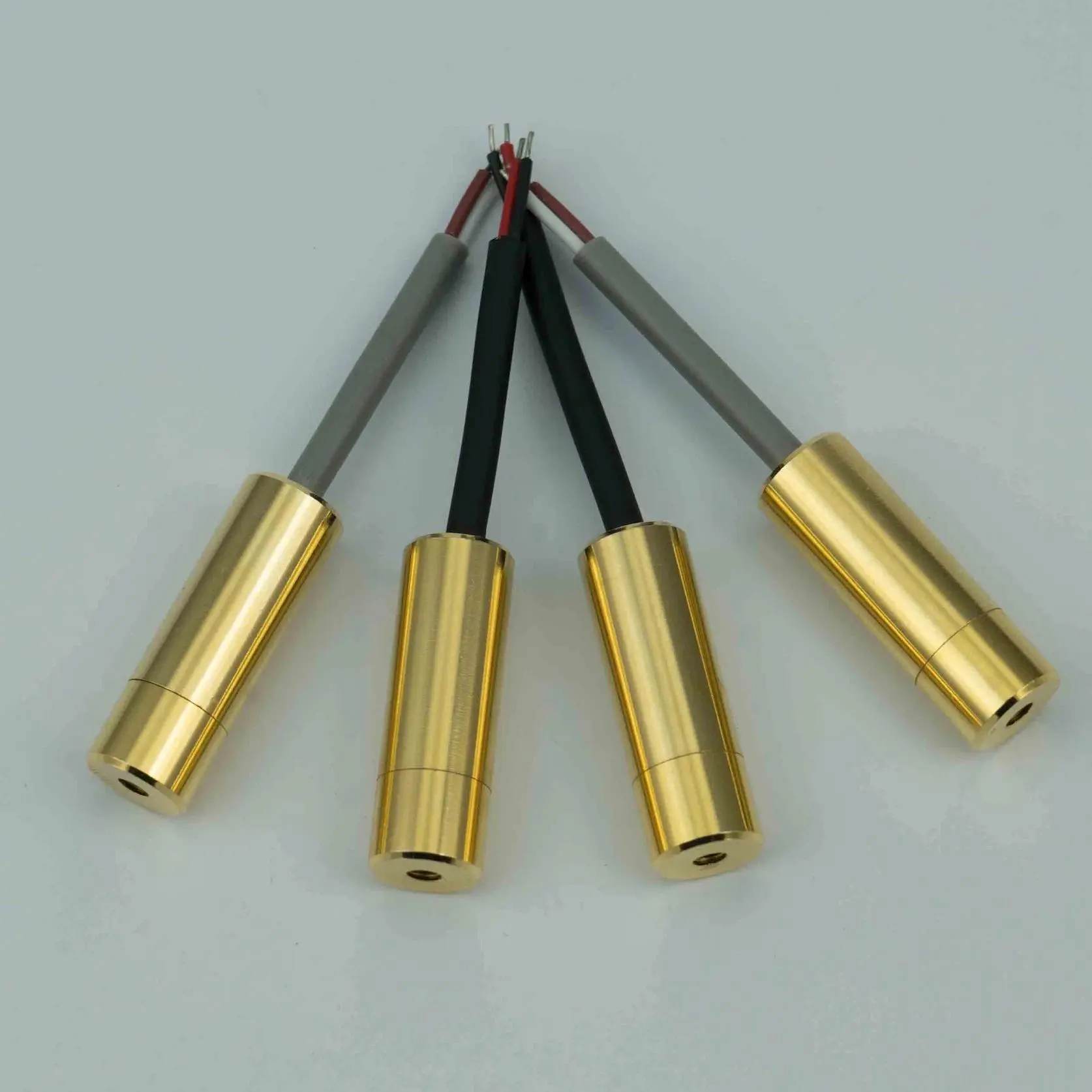

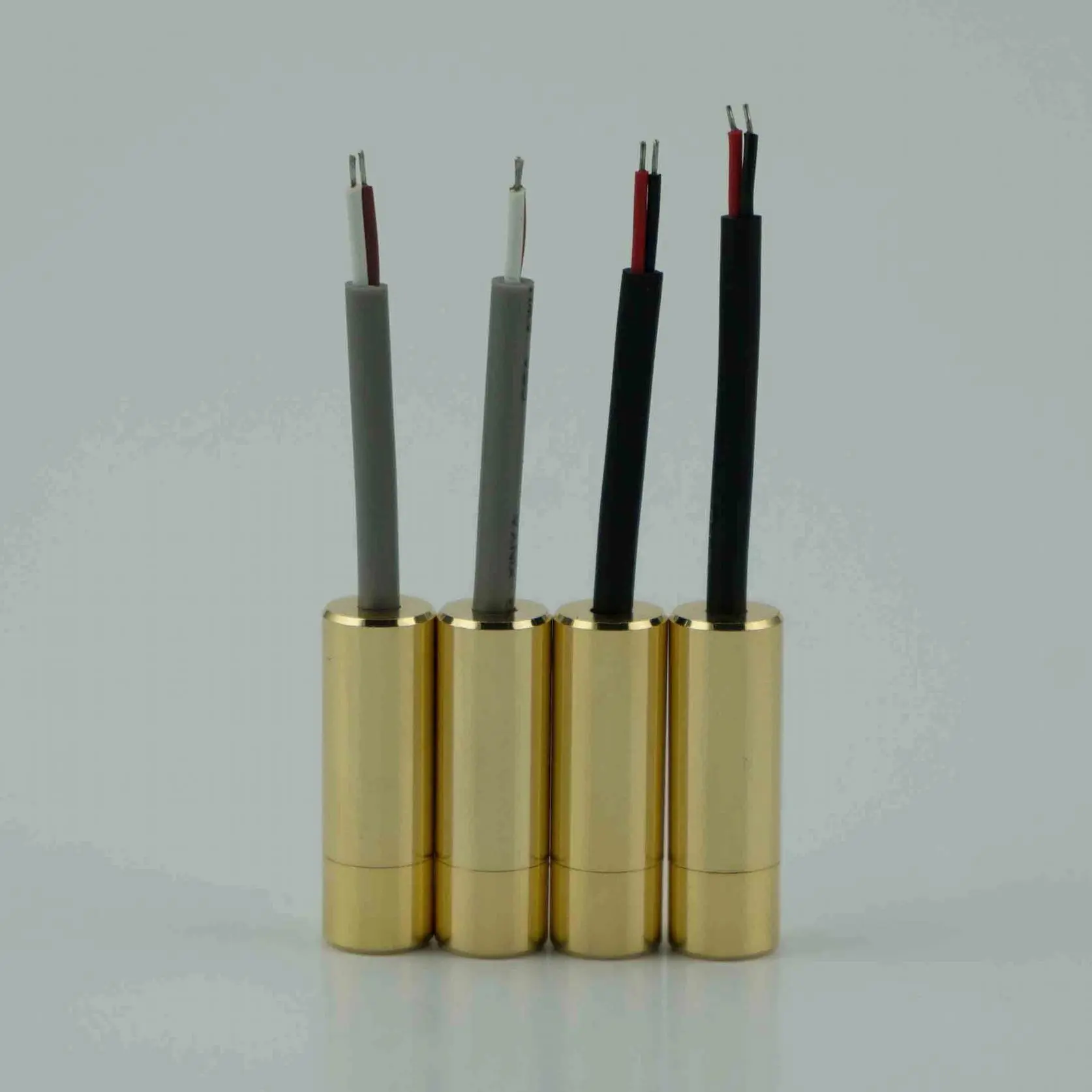

AimLaser provides customized Green Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The green laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 520nm 10mW Dot* Green Laser Diode Module Descriptions*

The AM520D10G1 is a TTL modulated green laser module subassembly with collimated beam. The maximum laser output power is 10.0mW at 520nm.

※ 520nm 10mW Dot Green* Laser Diode Module Optical and Electrical Characteristics*

ITEM	SPECIFICATIONS
Model Number	AM520D10G1 Green Dot Laser Module
Wavelength	520nm
Output Power	≤10.0mW
Laser Mode	Pulse (TTL Modulation)
Beam Size	≤2x4mm@2m
Divergence	0.5mrad
Optics	Optical Glass Lens
Operating Current	<160mA
Operating Voltage	3.0V DC
CDRH Class	Class IIIb
Circuit control	Auto Power Control (APC)
Circuit Protection	Static, Surge, and Reverse Polarity Protected
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	Φ12x40mm (APC Inside)
Housing Material	Full Brass
Life Span	8,000Hrs
