Visible Pulsed Optical Fiber Coupled Laser Source 405nm TTL Modulation Coaxial Fiber Coupled Laser Module

Visible Pulsed Optical Fiber Coupled Laser Source 405nm TTL Modulation Coaxial Fiber Coupled Laser Module Visible Pulsed Optical Fiber Coupled Laser Source 405nm TTL Modulation Coaxial Fiber Coupled Laser Module

  • Laser Wavelength:
    405nm
  • Output Power:
    70mW
  • Housing Material:
    Black Anodized Aluminum
  • Fiber Core:
    50um
  • Connector:
    FC/PC
  • Model: AM405MF70G1

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Blue, Violet

  • Wavelength: 405nm, 450nm

  • Type: Pulse, CW, Dot, Fiber, TTL

Product Description

Product Description of Visible Pulsed Optical Fiber Coupled Laser Source 405nm TTL Modulation Coaxial Fiber Coupled Laser Module

Laser Wavelength Chart

AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.

Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.


※ 405nm 70mW 50um Pigtailed Coaxial  Fiber Coupled Laser Module Descriptions

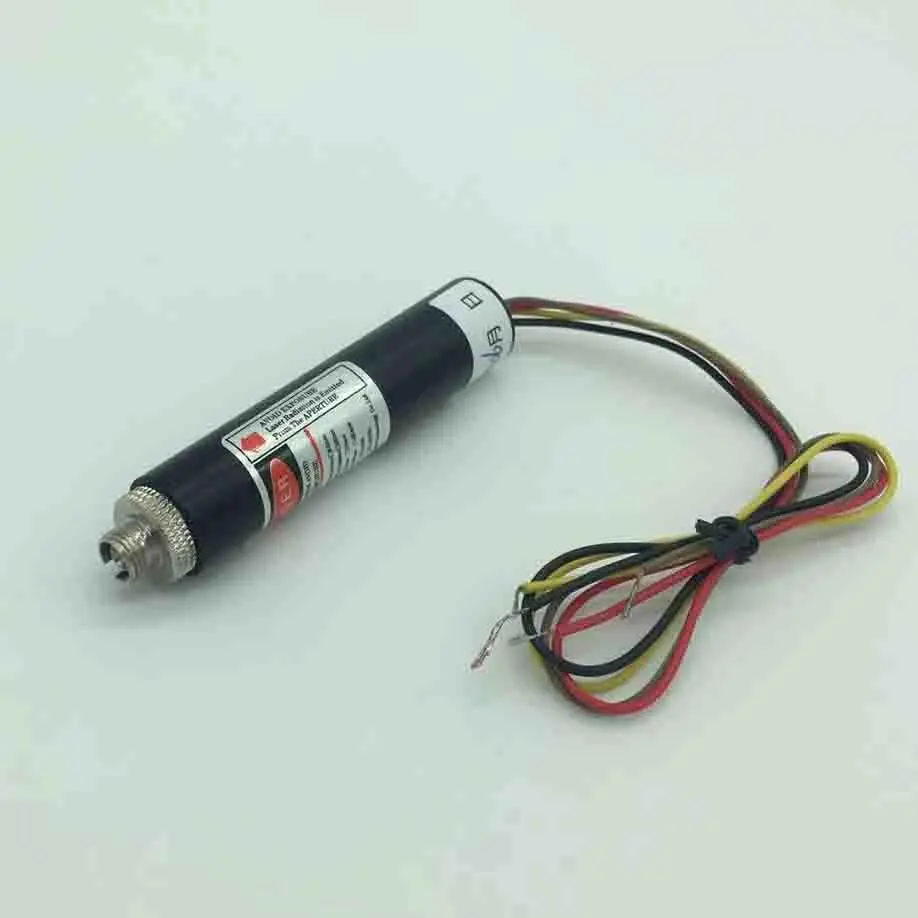

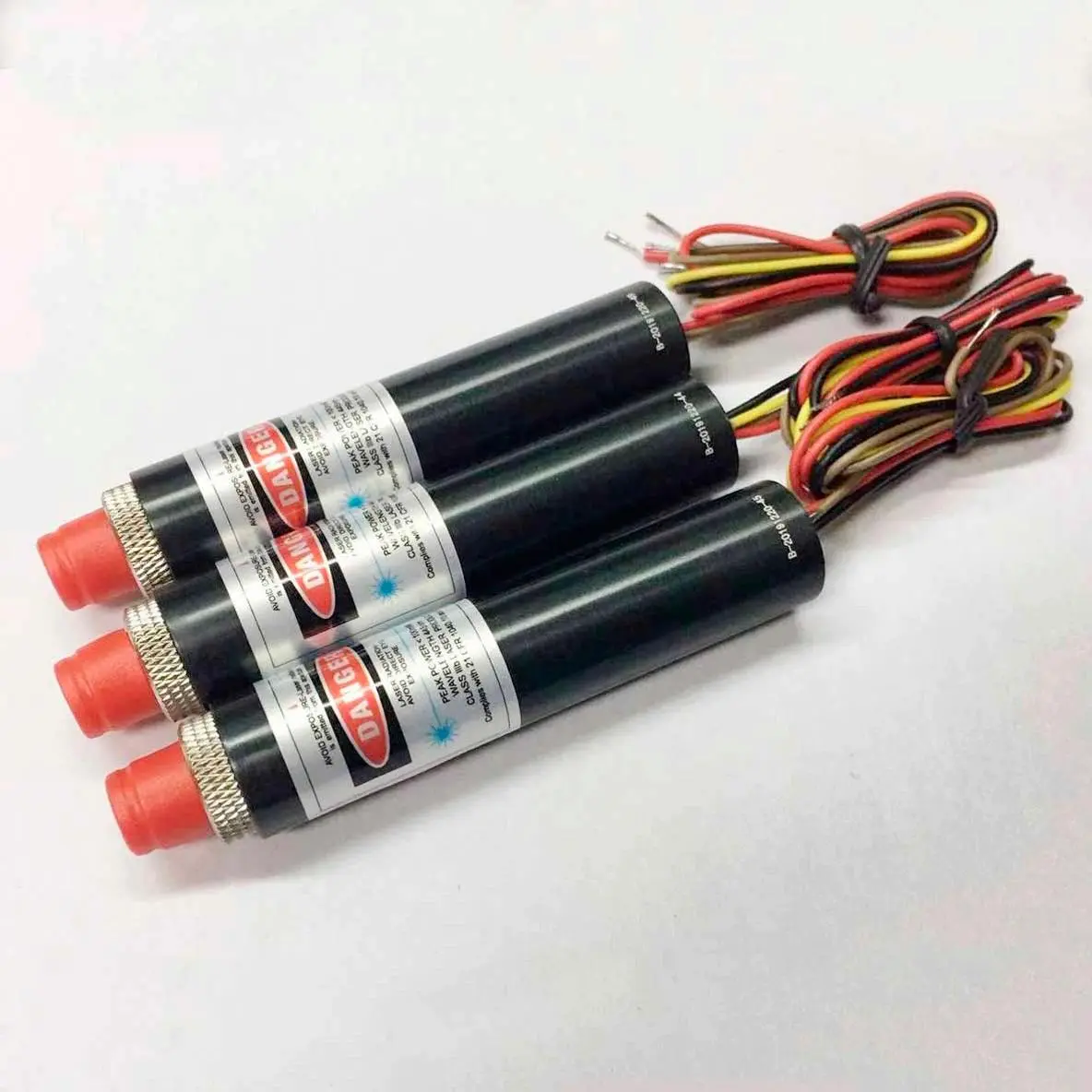

The AM405MF70FC is a purple blue pigtailed fiber coupled laser diode Module subassembly with FC/PC receptable optical output. The maximum laser output power is 70.0mW at 405nm.


※ 405nm 70mW 50um Pigtailed Coaxial  Fiber Coupled Laser Module Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM405MF70FC Coaxial Pigtailed Fiber Coupled Laser Module
Wavelength405nm
Output Power≥70.0mW
Laser ModeCW & Pulse (TTL Modulation)
Spectral Width<2.0nm
Wavelength Shift0.2nm
Operating Current<250mA
Operating Voltage5.0V DC
Optical LensOptical Glass Lens
CDRH ClassClass IIIb
Power ModulationAnalogu Input
Modulation FrequencyTTL<100Hz
Circuit controlAuto Constant Current (ACC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ16x70mm (ACC Inside)
Housing MaterialBlack Anodized Aluminum
Fiber Core Diameter50um multimode Fiber
Fiber Length1m
Numerical Aperture0.22 N.A.
ConnectorFC/PC
Life Span8,000Hrs

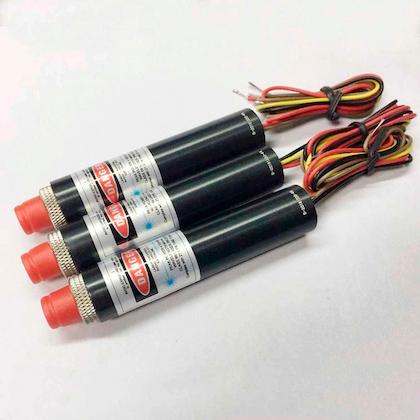

Fiber Laser Source ManufacturerLaser in Optical Communication


※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

  1. Optical Alignment Systems

  2. Medical Laser Instrument

  3. CTP Laser Printing

  4. OEM Instrumentation

  5. Laboratory Instrument

  6. Laser Test and Inspection Equipment


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※  Fiber Coupled Laser Modules Production Process

Fiber Coupled Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
