Wall Position Marking Horizontal Laser Line or Laser Dot Modules 635nm 5mW

Wall Position Marking Horizontal Laser Line or Laser Dot Modules 635nm 5mW Wall Position Marking Horizontal Laser Line or Laser Dot Modules 635nm 5mW

  • Product Name:
    Line with Dot Laser Modules
  • Output Power:
    635nm 5mW
  • Line Thickness:
    ≤2.0mm@5m
  • Fan Angle:
    120°/180°
  • Dimensions:
    15x21mm
  • Model: AM635M10G2

  • Brand: AIMLASER

  • Code: 90132000.99

  • Color: Red  Visible

  • Wavelength: 635nm

  • Type: CW  Dot  Line

Product Description

Product Description of Wall Position Marking Horizontal Laser Line or Laser Dot Modules 635nm 5mW

Laser Wavelength Chart

AimLaser provides customized Red and Green Dot Line Laser Modules with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 24V DC or 110VAC.


※ What is a Line Laser Generator?

Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.

It is widely used in laser distance measurer, self leveling laser tools, laser survey instrument by projecting a distinct red or green 360 degree laser line for alignment and positioning and surveying to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.


※ Why use a Line Laser Generator?

The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.


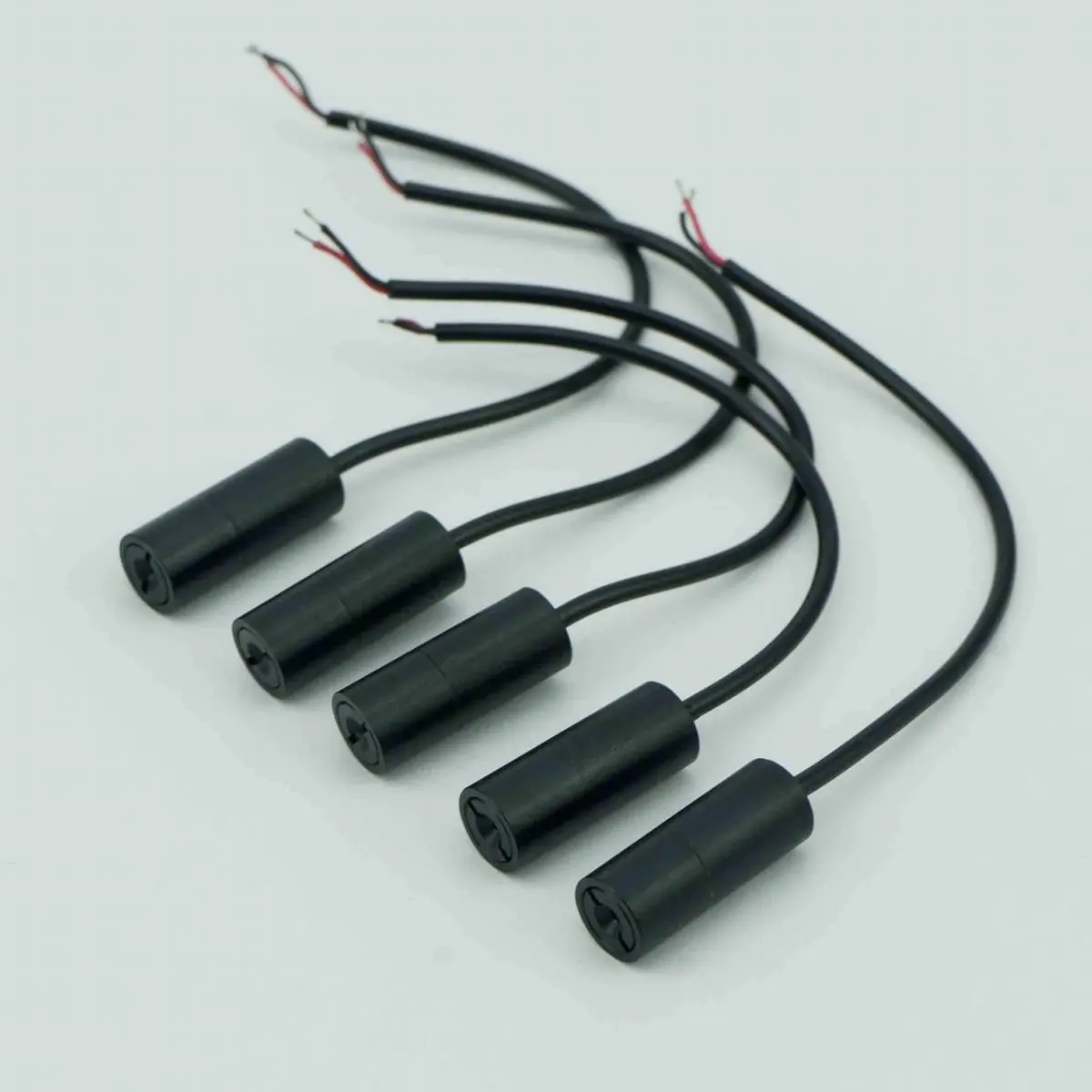

※ 635nm 5mW  DotLine Red Laser Module Descriptions

The AM635M10G2 is a red dot line laser generator for self leveling laser tools, laser alignment tools or laser tape measure equipment. The maximum laser output power is 5.0mW at 635nm.


635nm 5mW DotLine Red Laser Generator Optical and Electrical Characteristics

ITEMSPECIFICATIONS
Model NumberAM635M10G2 (Dot Line Red Laser Module)
Wavelength635nm
Output Power≤5.0mW
Fan Angle120°/180°
Line Width≤2.0mm@5m
Line Accuracy<1mm@5m
DOF1m
OpticsOptical Glass Lens
Operating Current<75mA
Operating Voltage3-5V or 12V or 24V DC
CDRH ClassClass IIIa
Circuit controlAuto Power Control (APC)
Circuit ProtectionStatic, Surge, and Reverse Polarity Protected
Working Temperature-10℃ to 50℃
Storage Temperature-40℃ to 80℃
DimensionsΦ15x21mm (PCB Inside)
Case MaterialBlack Anodized Aluminum
Life Span8,000Hrs

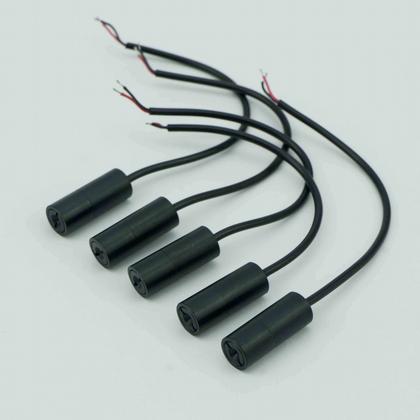

Laser Plumb LineLaser Tap Strait Line


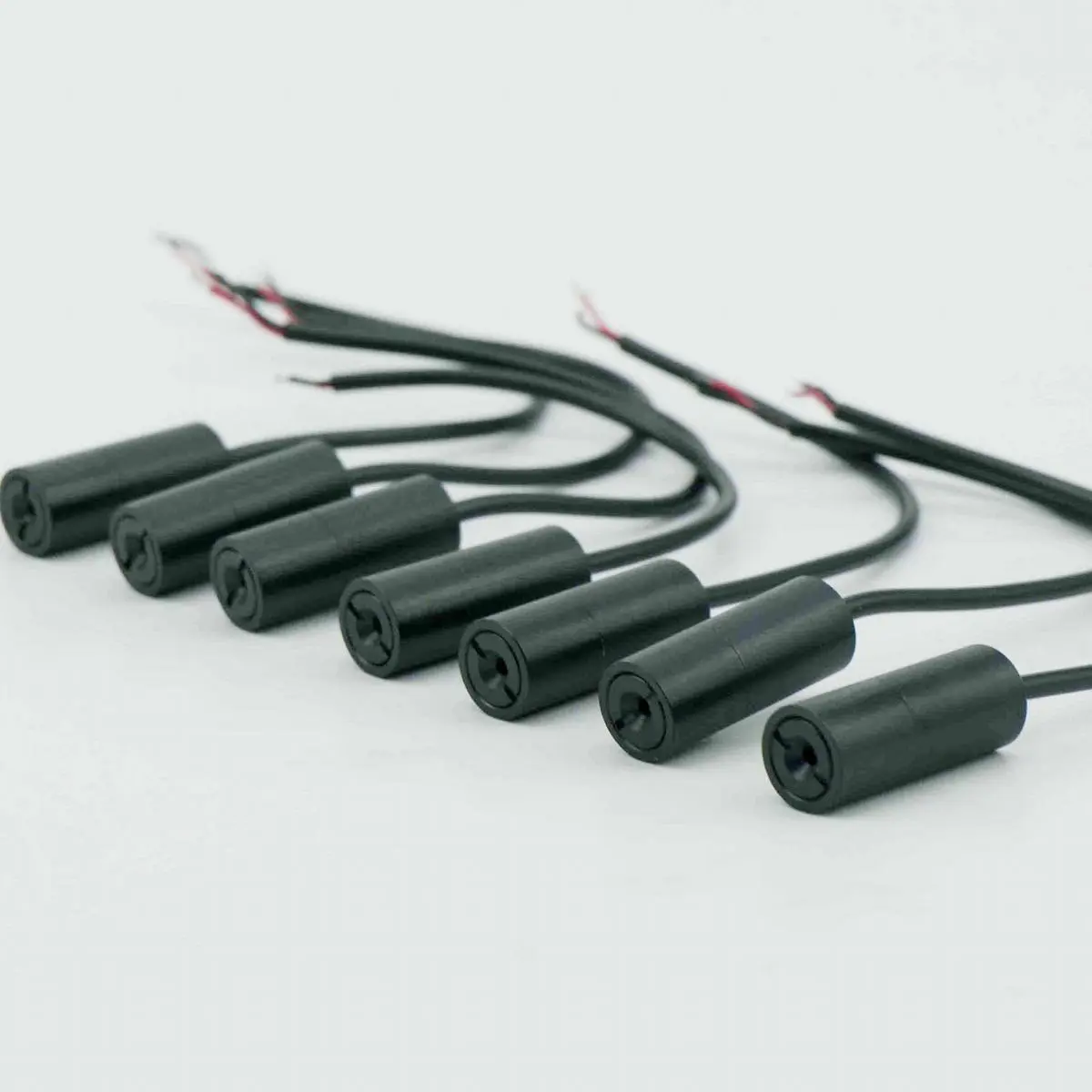

AimLaser Line Laser Module Features

  • Long lifetime

  • Compact size

  • Easy mounting

  • High brightness

  • Convenient adjustment

  • High reliability and stability

  • Wide temperature operation -10℃ to 50℃


※ Dot Line Laser Module Applications

  • Laser Line Maker

  • Laser Tape Measurer

  • Laser Measuring Tools

  • Laser Alignment Systems

  • Laser Distance Measurer

  • Laser Survey Instrument

  • 3D Laser Scanner

  • Self Leveling Laser Tools etc.


※ Why buy Line Lasers from AimLaser?

  • Provide One year warranty

  • Offer customized solutions

  • Normal sample lead time: within 2 weeks

  • Conform to ROHS, FDA, IEC, SGS standards

  • ISO9001:2008 certified laser module manufacturer

  • Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Modules Production Process


※ Laser Modules Production Equipment

Laser Modules Production Equipment


※ Laser Modules Testing Equipment

Laser Modules Testing Equipment


※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
